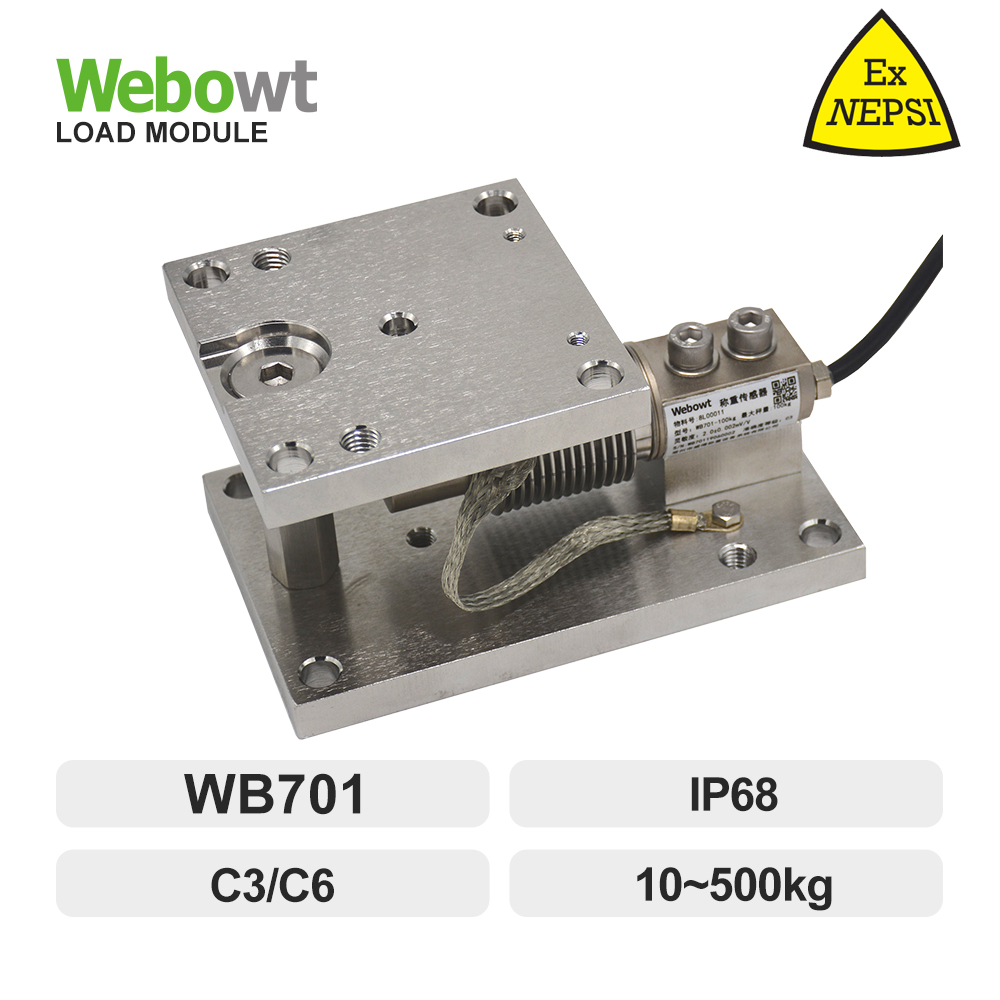

WB701 Weighing Module 10kg~500kg

Adopt WB701 Stainless steel laser welding sealing load cell, protection class IP68, Can be used in a variety of harsh environments
Ball connector, cone connector and rocker pin connector are optional.
Supports bolts to prevent equipment from overturning
Simple and quick installation, easy maintenance
Stainless steel and alloy steel module structural parts
It is suitable for weighing the batching of small and medium-sized reactors in chemical, pharmaceutical, food and other industries.
Suitable for dynamic and static load weighing module, optional pull rod
Explosion-proof classification: Ex ia IIC T4 Ga; Ex iaD 20 T135
Capacity:
10kg
20kg
30kg
50kg
100kg
200kg
300kg
500kg
Backup:
Standard, output sensitivity 2.0 mV/V
Customization
Module Material:
Alloy steel material
Stainless steel
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Order No.1003421, MW A W B701-500kg-X-S-C6-3m-A/C, Stainless steel material, bellows, alloy steel dynamic and static load module, Explosion proof, 500kg, C6

  • WEBOWT

  • 84239000

Order No.1003421,

 MW A W B701-500kg-X-S-C6-3m-A/C,

Stainless steel material,

bellows,

alloy steel dynamic and static load module,

Explosion proof,

500kg,

C6
