ID511Pro
Home » Products » Controllers & Indicators » ID511Pro

Products

ID511PRO

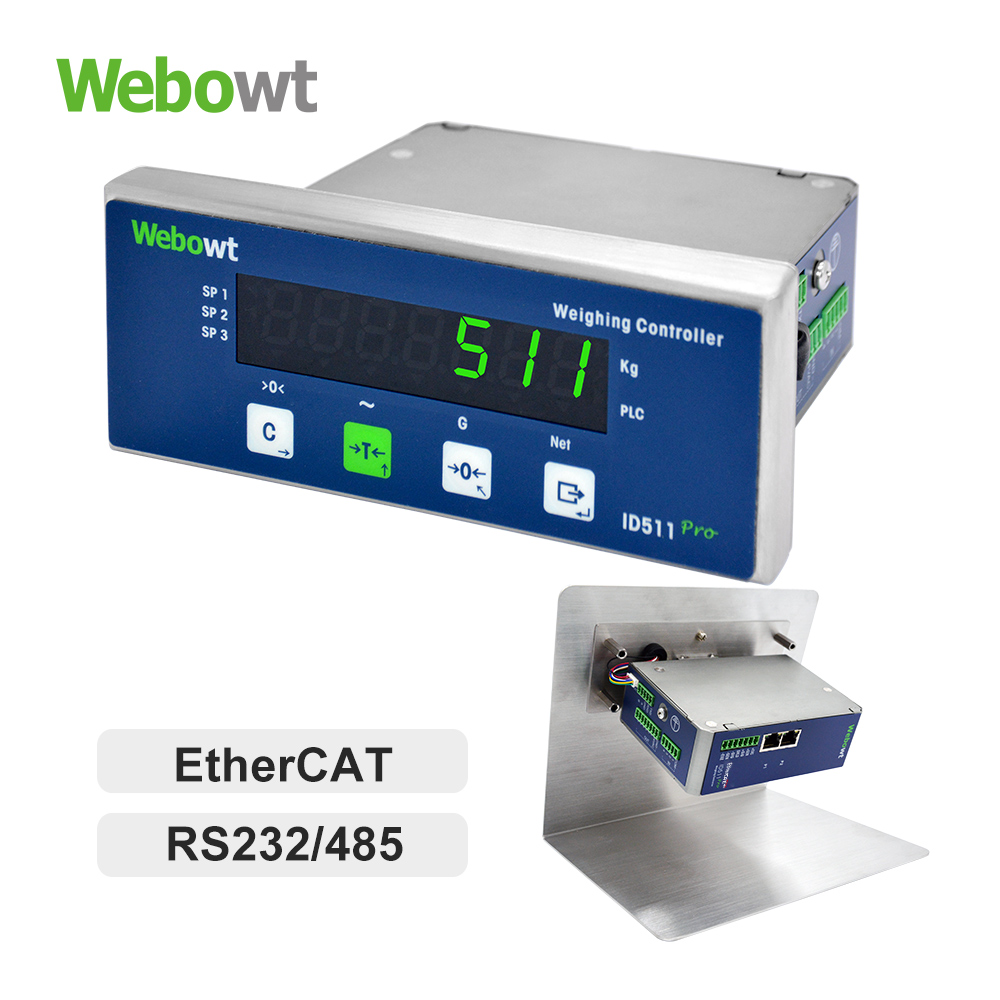

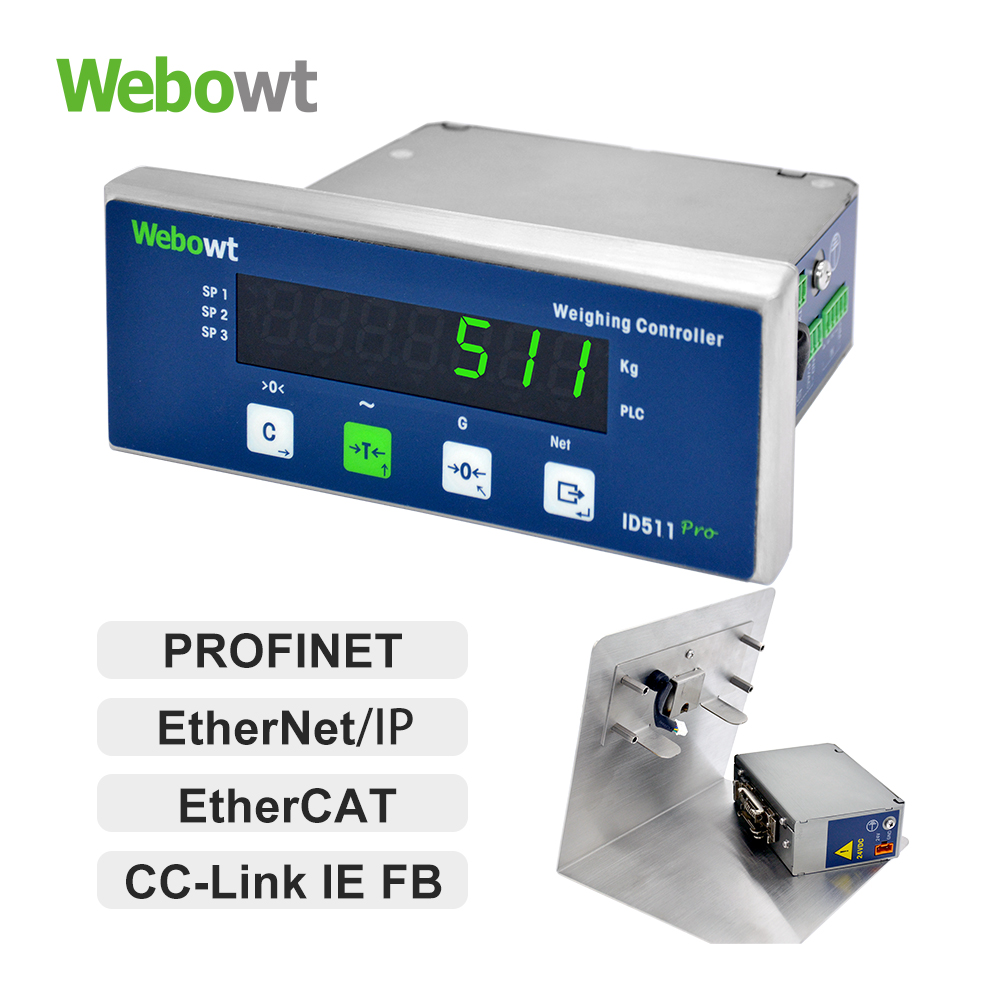

WEBOWT ID511 PRO Panel 01
WEBOWT ID511 PRO Panel 06 SS-MODBUS-TCP
WEBOWT ID511 PRO Panel 07 SS-CCLINK

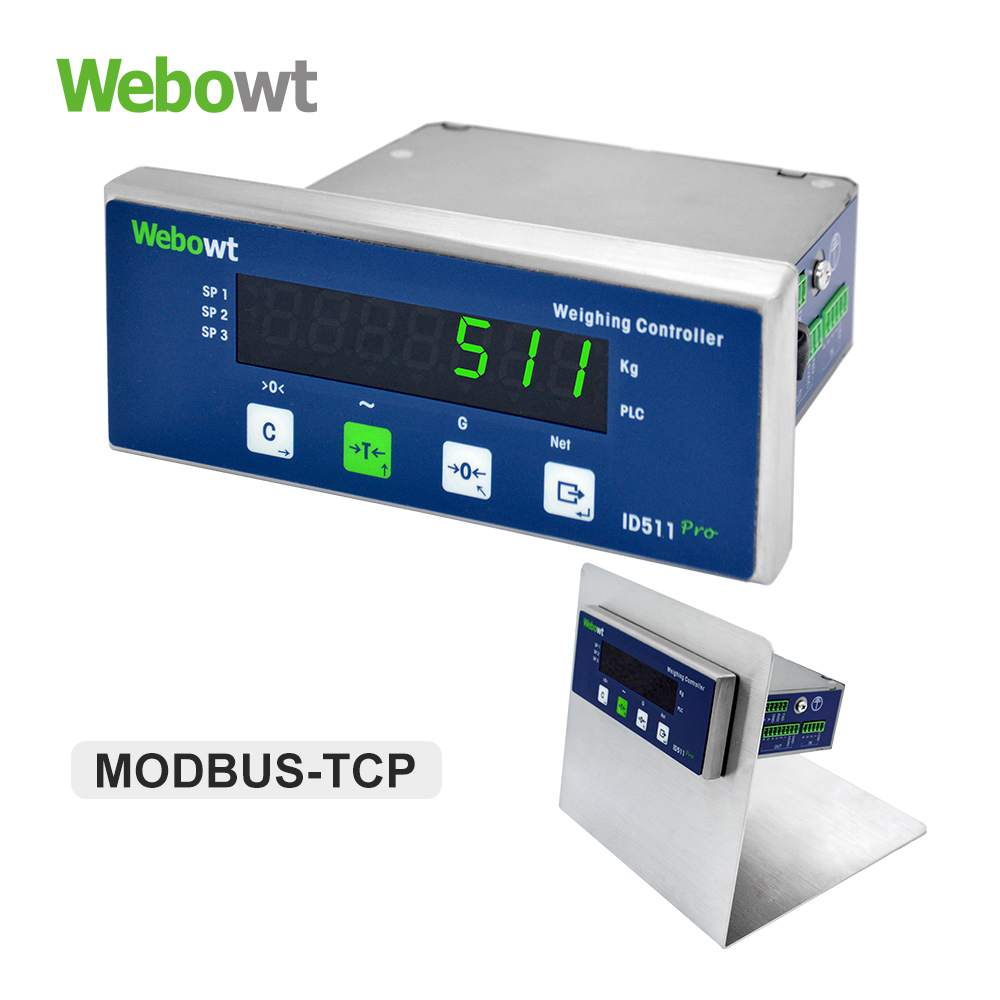

WEBOWT ID511 PRO Panel 05 SS-MODBUS-TCP
ID511Pro Process Controller
CPA 6000e certified accuracy, up to 150000 display divisions
Standard configuration: serial port RS232/485×1, Lan×2, and high precision AD×1
The standard configuration supports MODBUS-RTU and MODBUS-TCP(only the network port version is supported)
PLC options
>PROFINET(dual network port，built in switch，Siemens PLC)
>EtherNet/IP(dual network port，built in switch，Rockwell PLC，Delta PLC)
>CC-Link IE FB(Mitsubishi PLC)
>EtherCAT(Inovance PLC)
I/O option: In x 4/ MOS out x6
Multiple calibration modes
>Up to 5-point weight calibration is supported
>Weight free calibration
>Remote calibration through PLC
Configuration Category
Configuration
ID511Pro CONFIGURATION
Drawing
WEBOWT ID511Pro Drawing
Download

Certificates

  • OIML-Certificate-R76_2006-A-DK2-2022.07-ID510 ID511 ID551PN.pdf

Technical Specification

  • ID511_Tech_Manual_R2.0_20220825.pdf

Manual

  • WEBOWT Weighing indicators.pdf
