ID511 Weighing Controller SS Body Harsh Dustproof

Product Features

7-bit LED display
Supports 1 analog scale input, with a maximum of 12 load cells
Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
Have got OIML & CE certificates
Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)

Optional PLC communication interface

• PROFIBUS-DP (Siemens PLC)

• PROFINET (dual LAN ports, built-in switch, Siemens PLC)

• EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)

• CC-Link (Mitsubishi PLC)

• 4-20mA (16-bit precision DAC) x 1

• 4-20mA (16-bit precision DAC) x 2

I/O (input/output options)
In x 8 / OC Out x 12
In x 8 / Relay Out x 12

Multiple calibration modes

• Supports up to 5-point calibration

• Calibration without weights

• Remote calibration through PLC communication interface

Application supports

• Basic weighing version

• Supports dual-speed preset point control and 8 simple comparison outputs

• Lower/upper limit material level detection

The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;

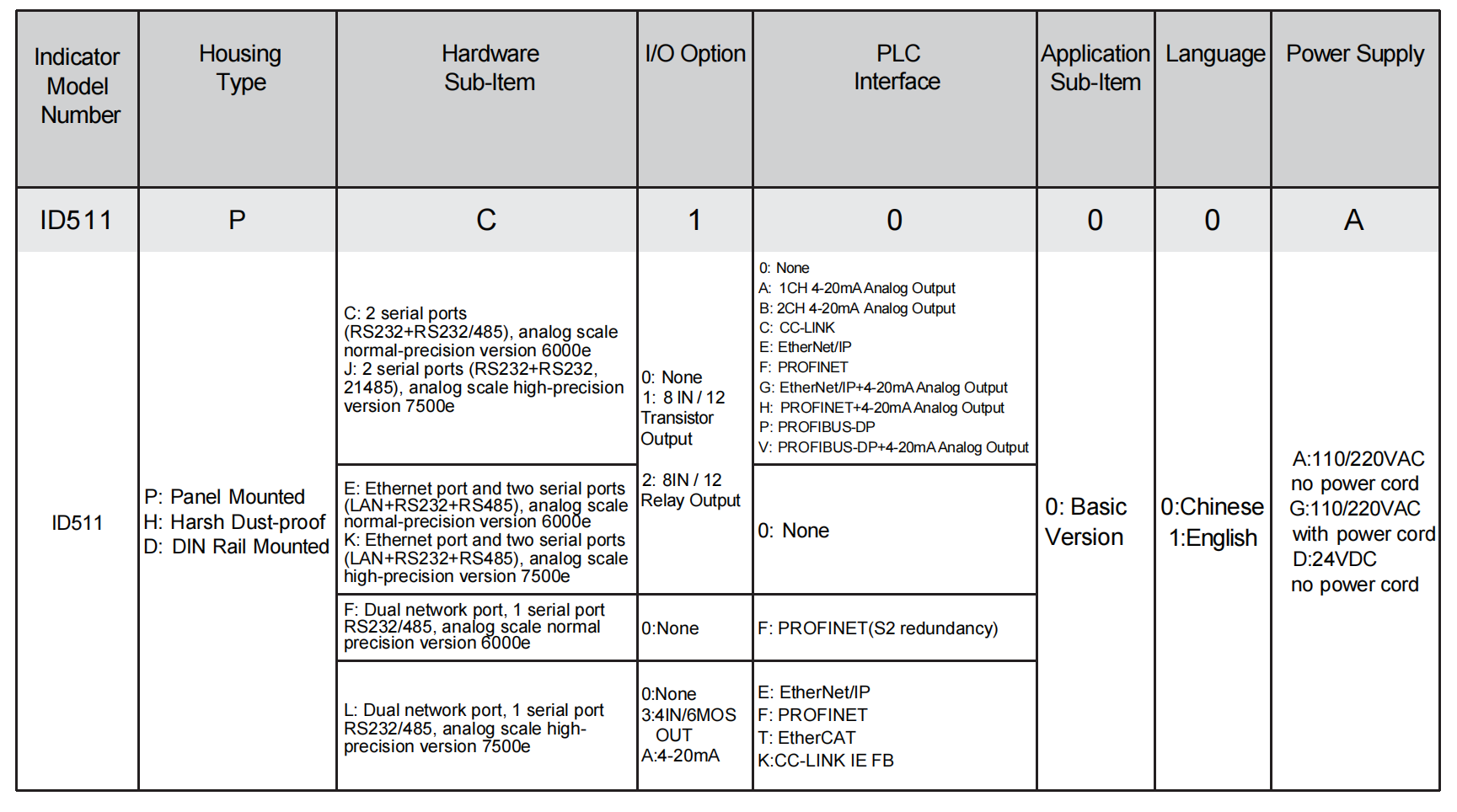

Product Selection Configuration
