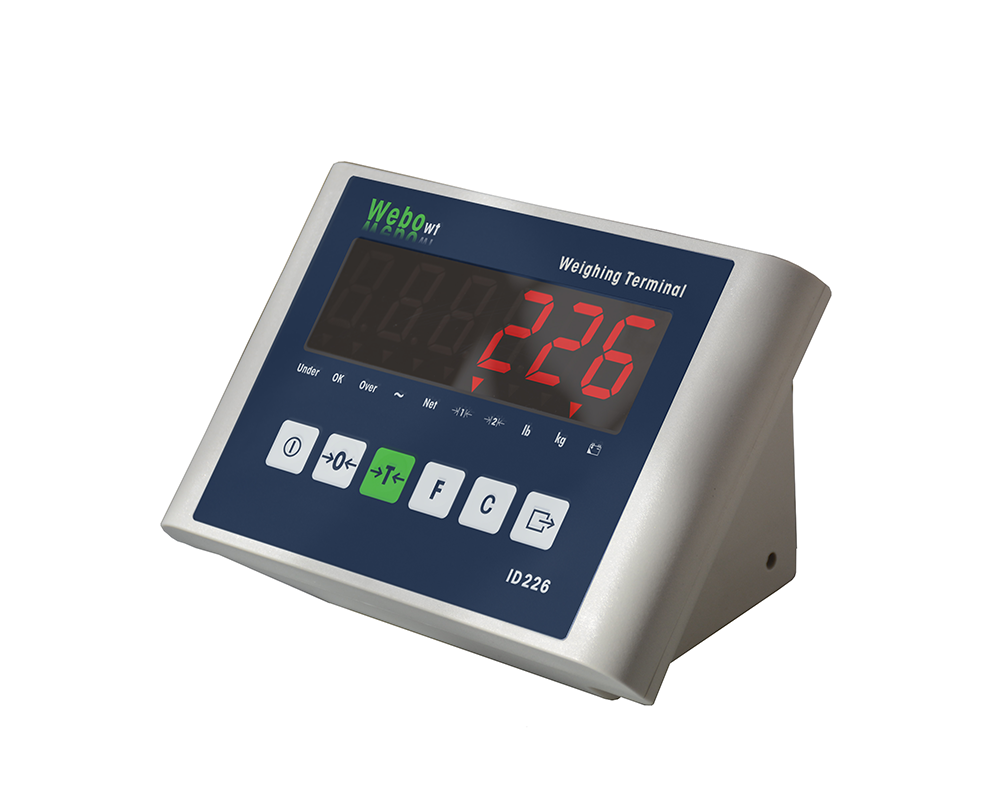

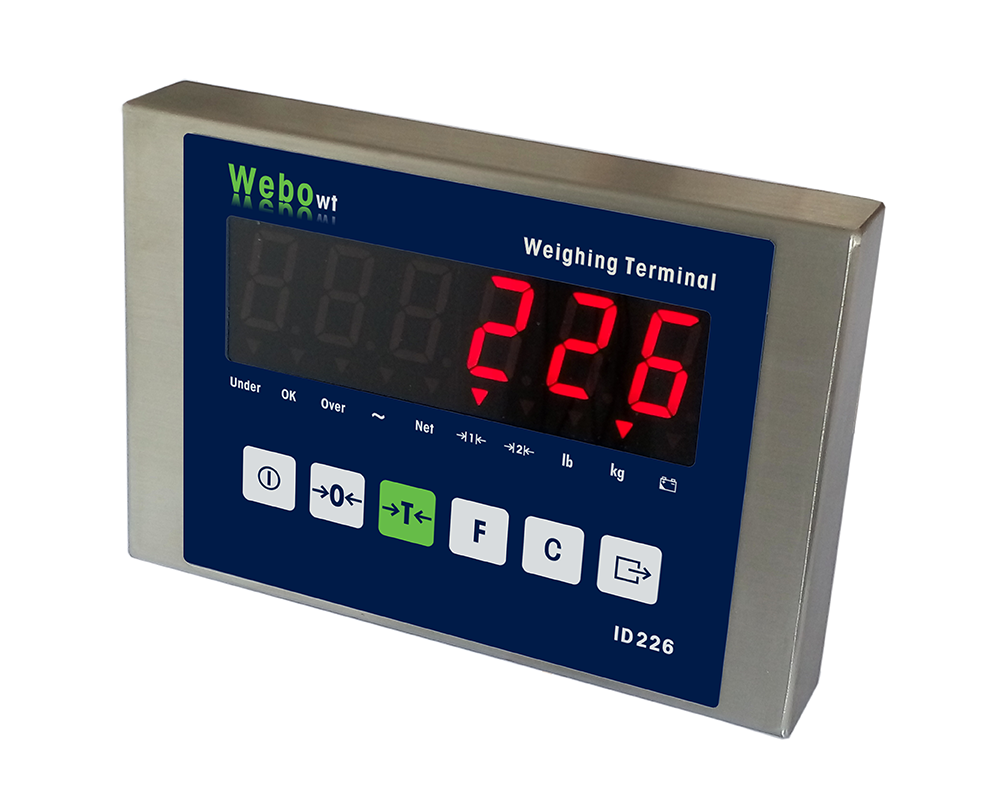

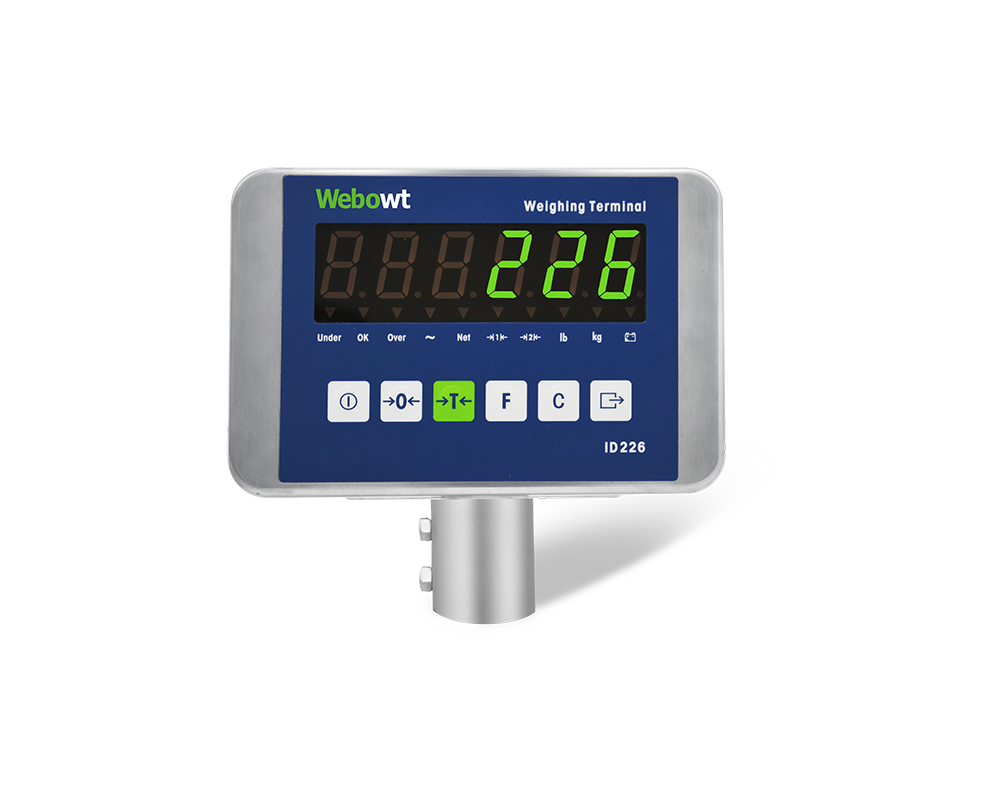

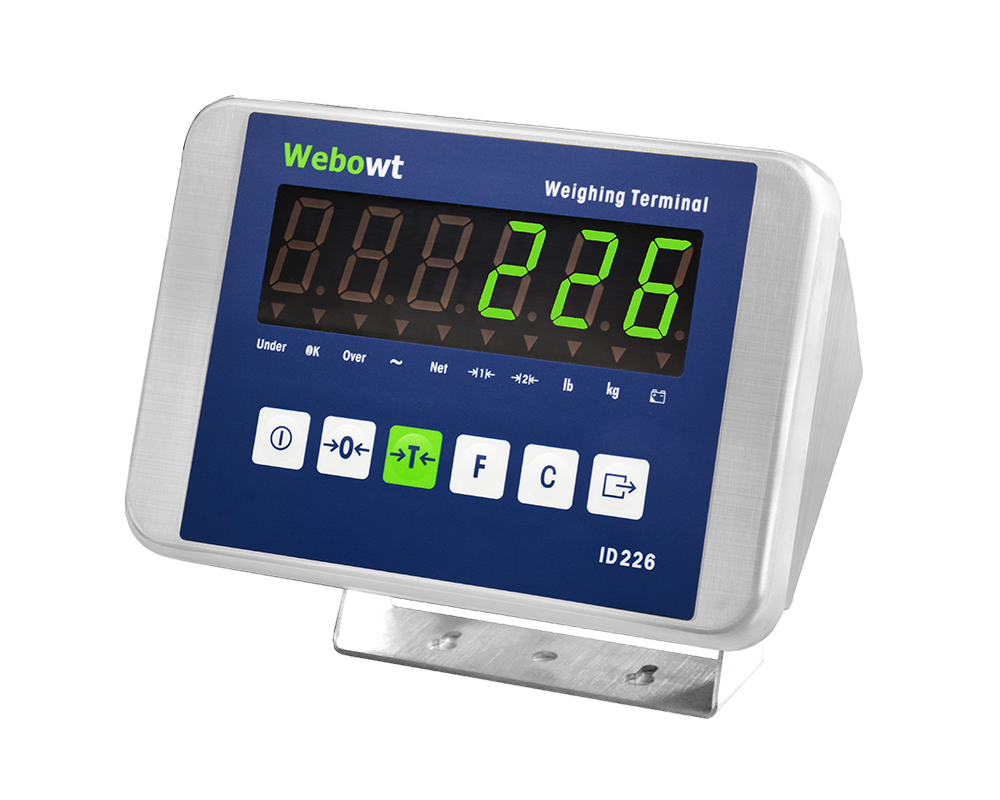

ID226 Electronic weighing indicator
ID226
6_03
Brief Introduction
  • 6 bit 15mm Green LED segment display
  • 5 functionality keys and 1 ON/OFF power control key
  • Stainless steel enclosure with IP66 protection
  • 5VDC ADC exciting output
  • Support One analog scale with up to 350 Ohm x10 load cells
  • ZERO input：≥0.1mV
  • SPAN input：≤20mV
  • Up to 200000d (Max. display division)
  • Power Input：Li-ion battery group, 7.4VDC 2600mAh
  • One RS232 serial port (Standard)
  • Bluetooth
  • Operating Environment
  • Operating Temperature: -100C∼400C
Humidity: 10％∼95％ non-condensing
Drawing
8_03
Configuration
7_03
Configuration Category
  • ID226 ABS
  • ID226 SS2
  • ID226 SS1
Replacement Parts
Download

Manual

  • ID550_Technical_Manual_En_R04_20180127.pdf

  • WBPGD module quick installation guide.pdf

  • 1004292-FW650AP01_ inspection manual _WEBO version _20221012.pdf

  • ID510_Technical_Manual_Basic_App_R2.0_20220825.pdf

  • ID511_Tech_Manual_R2.0_20220825.pdf

  • ID551PN_TechManual_R2.1_20220825.pdf

  • WEBOWT Weighing Scale.pdf

  • WEBOWT Weighing indicators.pdf

  • Webowt-ID226 Animal weighing Manual_20220510(ZY)

  • ID226_User_Manual_R1.04_PH5_20180710.pdf

Technical Specification

  • WEBOWT Load cell.pdf

  • WEBOWT Weighing Scale.pdf

  • WEBOWT Weighing indicators.pdf

  • Webowt_Product Selection Catalog_2023.pdf

  • Webowt_2023R1-Product Selection Catalog.pdf

  • Weighing Module WBPDG Technical Specification.pdf

  • WBPGD Load cell Technical Specification.pdf

  • 1004291-FW650_BlendFill_WEBO version_20220622.pdf

  • ID226W_User_Manual_20180604

Certificates

  • CE EMC Certificate of WEBOWT LOAD CELL series202401.pdf

  • OIML-Certificate-R76_2006-A-DK2-2022.07-ID510 ID511 ID551PN.pdf

  • WEBOWT Explosion proof Certificate of Load cell.pdf

  • WEBOWT Explosion proof Certificate of Load cell and Weighing modules.pdf

  • OIML-Certificate-R76_2006-A-DK2-2022.07-ID510 ID511 ID551PN.pdf

  • 0200-NAWI-13200 - Webowt - ID510_ID511_ID551PN(1)-Formal

Typical Application
Recommended Products
PHC Analog Floor Scale
PHC Analog Floor Scale
  • Electronic platform scale with double-layer structures

    All-carbon steel plastic spraying, coating
    Table top: riffled plate
    Configuration: WB702-C
    Alloy steel load cell IP67
  • Various platform dimensions and capacities
  • Widely used in a variety of industrial occasions
  • Stable, reliable and accurate for long-term use
  • Accessories configurated flexible and convenient
