Low height, small deformation and small overall dimension
Stainless steel material, high temperature can be customized
IP Class IP67
Explosion-proof classification: Ex ia MC T4 Ga; Ex iaD 20 T135
It is suitable for tank weighing, automatic assembly, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, measurement and control systems.

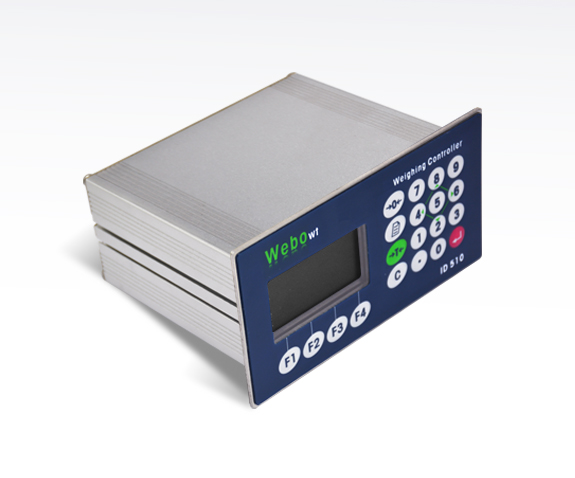

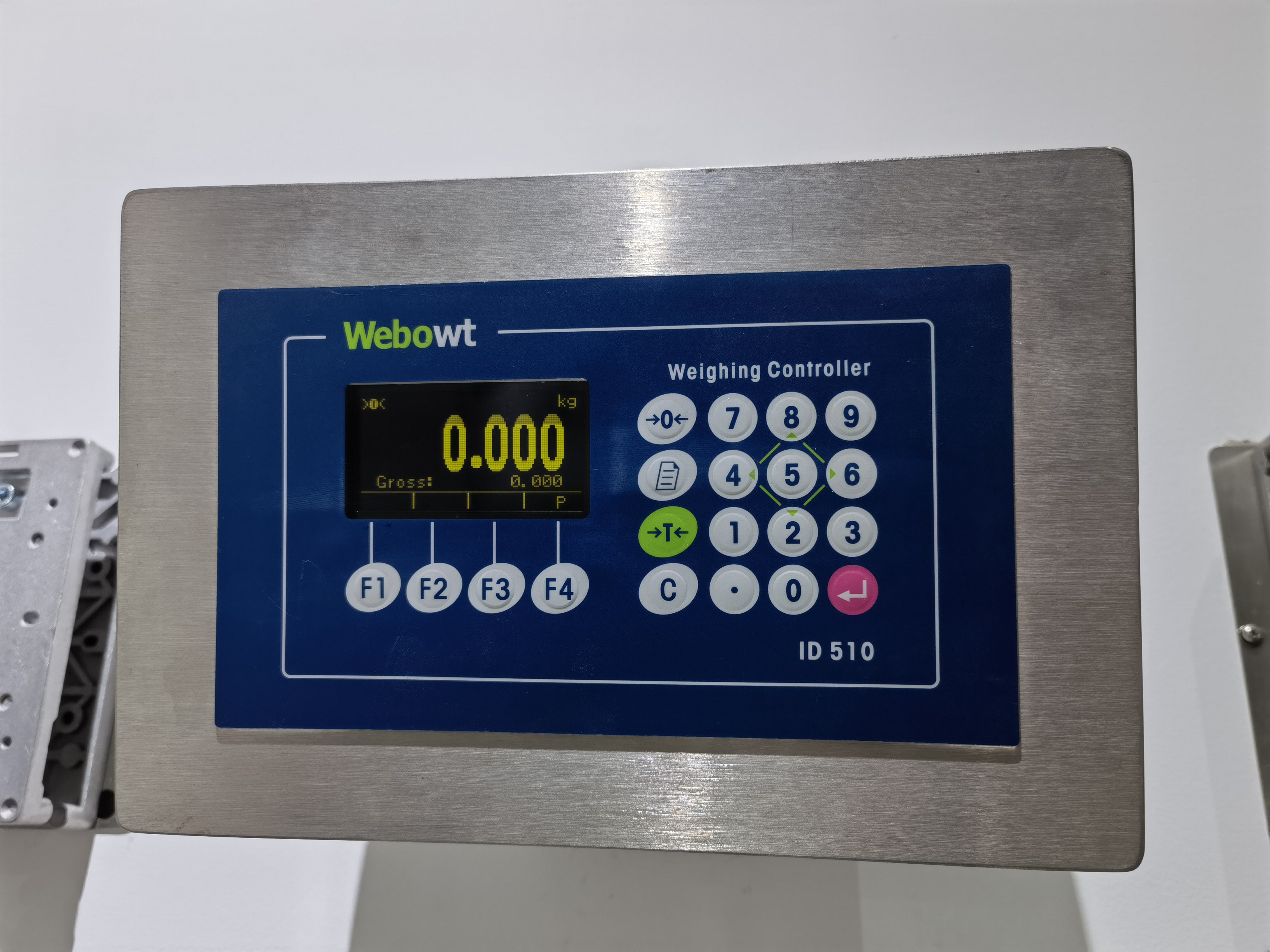

7-bit LED display Supports 1 analog scale input, with a maximum of 12 load cells Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e. Have got OIML & CE certificates Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version) Optional PLC communication interface
PROFIBUS-DP (Siemens PLC)
PROFINET (dual LAN ports, built-in switch, Siemens PLC)
EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
CC-Link (Mitsubishi PLC)
4-20mA (16-bit precision DAC) x 1
4-20mA (16-bit precision DAC) x 2
I/O (input/output options)

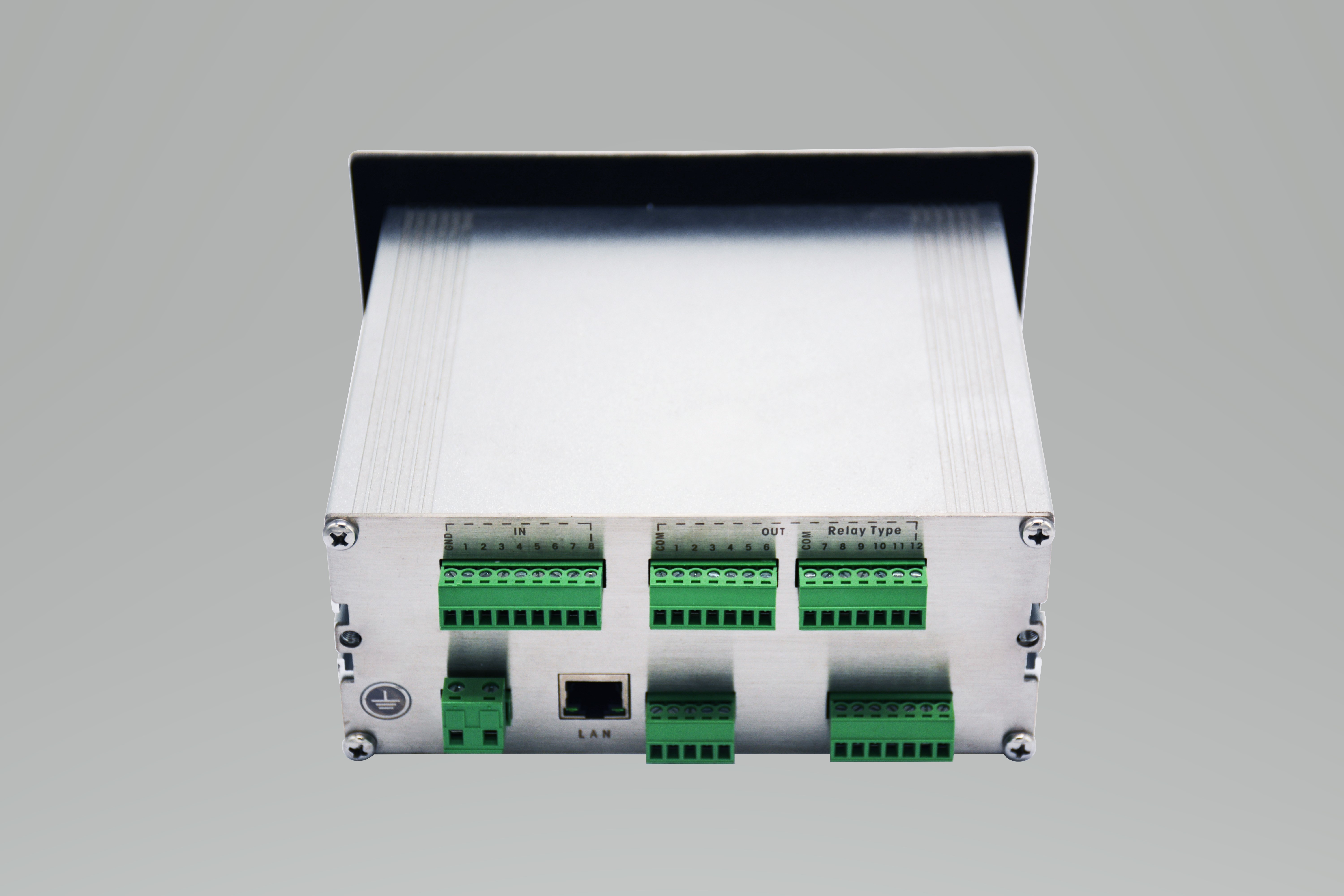

In x 8 / OC Out x 12
In x 8 / Relay Out x 12
Multiple calibration modes
Supports up to 5-point calibration
Calibration without weights
Remote calibration through PLC communication interface
Application supports
Basic weighing version
Supports dual-speed preset point control and 8 simple comparison outputs
Lower/upper limit material level detection
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;
6-bit large red LED display, word height 33.4mm Supports 1 analog scale input, with a maximum of 6 load cells Accuracy according to the metrological approval (CPA) 3000e, with a maximum display resolution of 60,000 Standard with serial port x 1 RS232/485 Standard supports MODBUS-RTU Option: scale x 1 4-20 mA (16-bit precision DAC) Multiple calibration modes
Supports up to 2-point code removal calibration
Calibration without weights
Remote calibration via MODBUS-RTU communication interface
Application supports
Basic weighing version
Working power supply:
DC 24VDC, the maximum power consumption of the complete machine is less than 6 W;
AC 85-264VAC, the maximum power consumption of the complete machine is 6 W;
7 "or 13" LCD color touch screen, supports switching between Chinese and English
4 serial ports
2 LAN ports (built-in switch function)
32G memory card
4 USB interfaces, supports the connection of wireless keyboard, mouse, USB flash disck and scanning gun
Supports MODBUS-RTU and MODBUS-TCP as standard PLC communication interface option
PROFIBUS-DP (Siemens PLC)
CC-link (Mitsubishi PLC)
PROFINET (dual LAN ports, built-in switch, Siemens PLC)
EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
scale x 1 4-20 mA (16-bit precision DAC)
scales x 2 4-20 mA (16-bit precision DAC)
Unlimited communication interface
WIFI wireless
4G wireless (Huawei 4G module)
I/O (input/output options)
In x 4 / OC Out x 6
In x 8 / OC Out x 12
Multiple calibration modes
Supports up to 5-point weight calibration
Calibration without weights
Remote calibration through PLC communication interface
Supports applications
Industry 4.0 smart weighing and labeling, MES terminal version
Manual batching version
Automatic batching version
Filling version
Intelligent shelves management version
Material tower weighing IoT version
Three-level authority management Modify the log The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 20W
Supports scale x 1 analog scale or analog scale x 2 input, supports up to 10 load cells
Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
