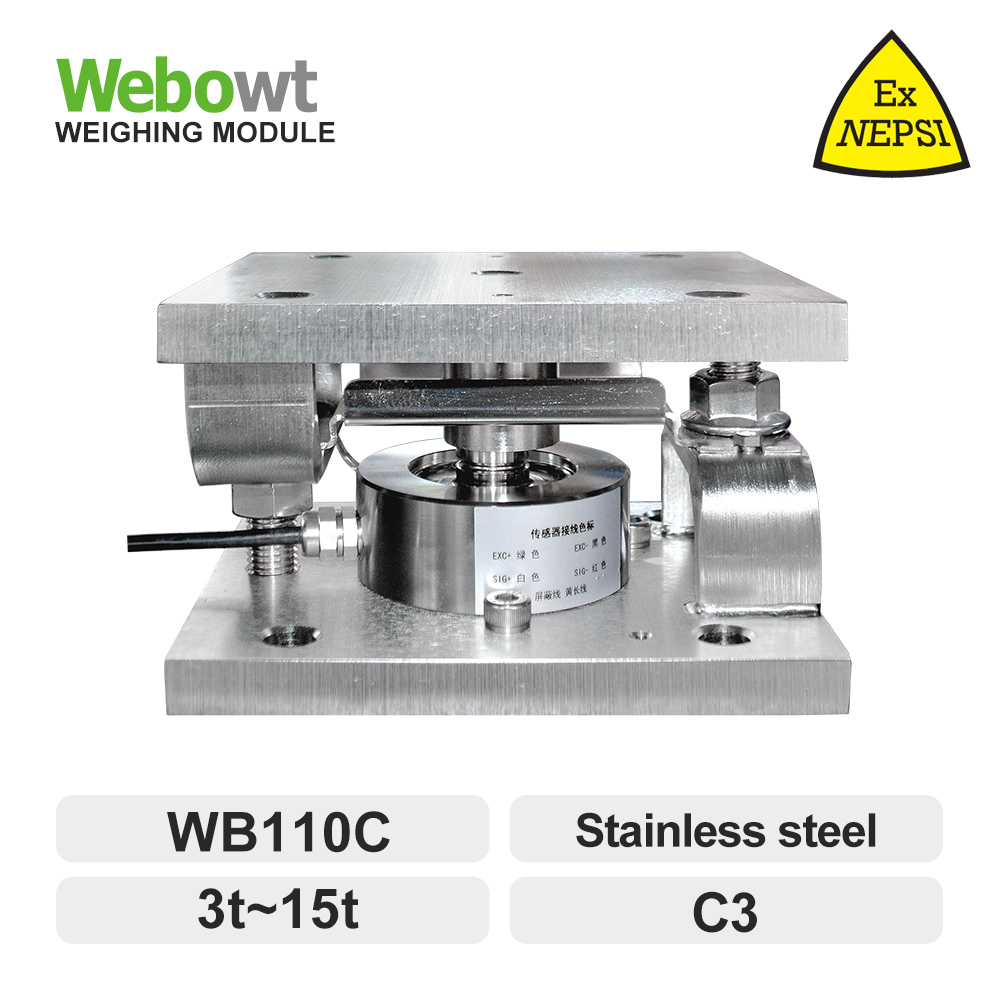

WB110C , Weighing Module 3t~15t
WEBOWT
84239000
WB110C
Product Features
Adopt WB110C stainless steel laser welded sealed load cel
Protection class IP68, Can be used in a variety of harsh environments
Anti-capsizing protection, anti-overload protection
Two structure materials: Stainless steel and carbon steelslIt is suitable for the batching weighing of tanks and various process weighing.
Explosion-proof classification: Ex ia IIC T4 Ga; Ex iaD 20 T135
Product Selection Configuration
Naming rules:weighing module MWA(a)-b-c-d-e-f-g-h-i/j
| Product Type a | Model b | Elastomer Class C | Capacity(kg) d | Certfication/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i | Module Material |
| MW-Weighing module A-Analog Load cell | WB110C | (Blank): Stainless steel 2Cr14Ni | 3,5,7.5,10,15t | N:Standard X:Explosion-proof | S:Normal temperature | C3 | 6m | A:Standard,output sensitivity 2.0mVN F:Customization | C:Alloy steel material S:Stainless teel |

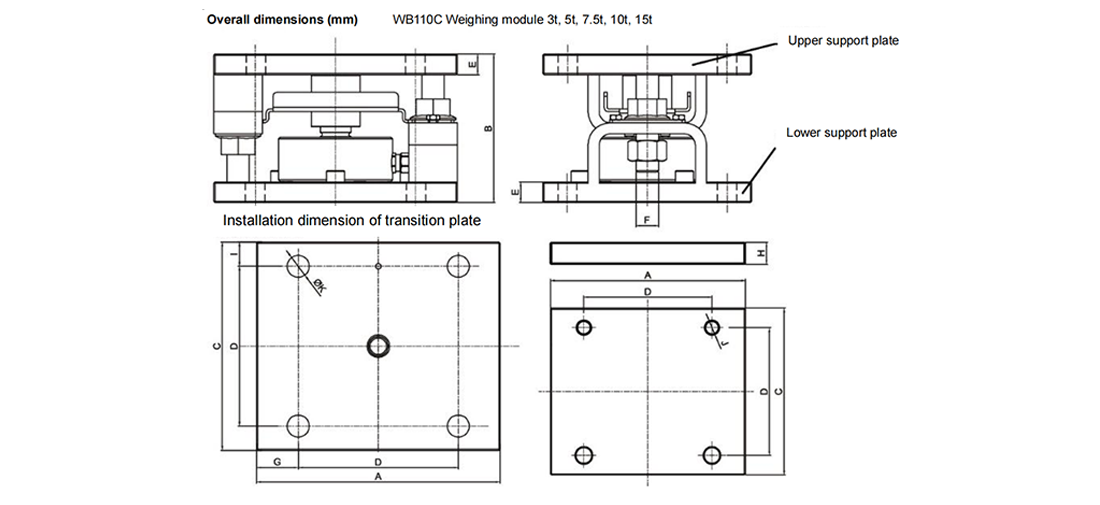

| Cap(t) | A | B | C | D | E | F | G | I | K | J | H |
| 3,5,7.5,10,15 | 175 | 106 | 150 | 115 | 15 | M16 | 30 | 17.5 | 14 | M12 | 20 |
For details about the load cell,see WB110C spoke load cell
Product Features
Adopt WB110C stainless steel laser welded sealed load cel
Protection class IP68, Can be used in a variety of harsh environments
Anti-capsizing protection, anti-overload protection
Two structure materials: Stainless steel and carbon steelslIt is suitable for the batching weighing of tanks and various process weighing.
Explosion-proof classification: Ex ia IIC T4 Ga; Ex iaD 20 T135
Product Selection Configuration
Naming rules:weighing module MWA(a)-b-c-d-e-f-g-h-i/j
| Product Type a | Model b | Elastomer Class C | Capacity(kg) d | Certfication/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i | Module Material |
| MW-Weighing module A-Analog Load cell | WB110C | (Blank): Stainless steel 2Cr14Ni | 3,5,7.5,10,15t | N:Standard X:Explosion-proof | S:Normal temperature | C3 | 6m | A:Standard,output sensitivity 2.0mVN F:Customization | C:Alloy steel material S:Stainless teel |
| Cap(t) | A | B | C | D | E | F | G | I | K | J | H |
| 3,5,7.5,10,15 | 175 | 106 | 150 | 115 | 15 | M16 | 30 | 17.5 | 14 | M12 | 20 |
For details about the load cell,see WB110C spoke load cell
