SELECTED PRODUCT LINES:
WEBOWT Tire Weight Testing Scale 5kg-20kg
Features:
 Frame structure, imported PVC Weighing belt, Soft contact with tire
 Meet the weighing requirements of different tire sizes and specifications
 WB702IL High-strength alloy steel load cell, able to withstand high-strength weighing and impact weighing

 The overall structure is simple, and the weight detection and data uploading in the tire production process are perfectly met.
FW650 , (Explosion-proof Single-scale Batching Workstation WB-MFS-B-Ex-S)
7 "or 13" LCD color touch screen, supports switching between Chinese and English 4 serial ports
2 LAN ports (built-in switch function)
32G memory card
4 USB interfaces, supports the connection of wireless keyboard, mouse, USB flash disck and scanning gun
Supports MODBUS-RTU and MODBUS-TCP as standard
PLC communication interface option PROFIBUS-DP (Siemens PLC)
CC-link (Mitsubishi PLC)
PROFINET (dual LAN ports, built-in switch, Siemens PLC)
EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
scale x 1 4-20 mA (16-bit precision DAC)
scales x 2 4-20 mA (16-bit precision DAC)
Unlimited communication interface WIFI wireless
4G wireless (Huawei 4G module)
I/O (input/output options) In x 4 / OC Out x 6
In x 8 / OC Out x 12
Multiple calibration modes Supports up to 5-point weight calibration
Calibration without weights
Remote calibration through PLC communication interface
Supports applications Industry 4.0 smart weighing and labeling, MES terminal version
Manual batching version
Automatic batching version
Filling version
Intelligent shelves management version
Material tower weighing IoT version
Three-level authority management
Modify the log
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 20W
Supports scale x 1 analog scale or analog scale x 2 input, supports up to 10 load cells
Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
Standard configuration:
FW650 , Harsh (Standard Dual-scale Batching Workstation WB-MFS-B-ST-D)
7 "or 13" LCD color touch screen, supports switching between Chinese and English
Supports MODBUS-RTU and MODBUS-TCP as standard
PLC communication interface option Unlimited communication interface I/O (input/output options) Multiple calibration modes Supports applications Three-level authority management
Modify the log
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 20W
4 serial ports
2 LAN ports (built-in switch function)
32G memory card
4 USB interfaces, supports the connection of wireless keyboard, mouse, USB flash disck and scanning gun
PROFIBUS-DP (Siemens PLC)
CC-link (Mitsubishi PLC)
PROFINET (dual LAN ports, built-in switch, Siemens PLC)
EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
scale x 1 4-20 mA (16-bit precision DAC)
scales x 2 4-20 mA (16-bit precision DAC)
WIFI wireless
4G wireless (Huawei 4G module)
In x 4 / OC Out x 6
In x 8 / OC Out x 12
Supports up to 5-point weight calibration
Calibration without weights
Remote calibration through PLC communication interface
Industry 4.0 smart weighing and labeling, MES terminal version
Manual batching version
Automatic batching version
Filling version
Intelligent shelves management version
Material tower weighing IoT version
Supports scale x 1 analog scale or analog scale x 2 input, supports up to 10 load cells
Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
Standard configuration:
FW650, Harsh (Simple Single-scale Batching Workstation WB-MFS-A-ST-S)
7-inch dustproof FW650
7-inch color LCD display without touch screen
External membrane function key External keyboard, mouse
Built-in 2 + 32G storage
Supports 4 serial ports
USB port, optional USB flash disk derivative weighing data
LAN port, optional
Printer Serial port bill printer
Ethernet bill printer
Scale interface Analog scale, supports up to 10 load cells
Digital scale, connected to the CAN interface digital load cell of future Weibo
Built-in truck scale weighing management software Records saved on 32G memory card
Supports record viewing and make up the weighing list
Provide interface to supports third-party software to read weighing records
Options
WIFI/4G
PROFINET/EtherNet/IP/CC-LINK
Touch display options

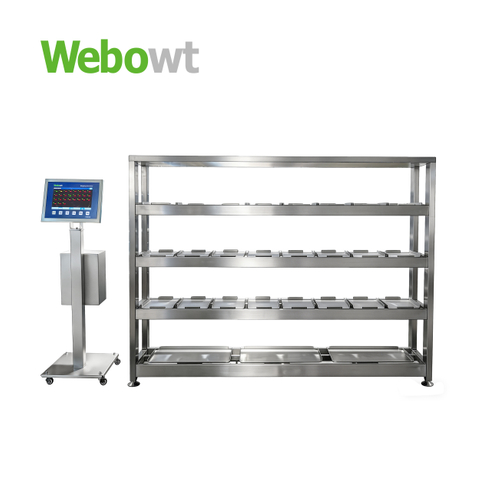

WEBOWT Smart Shelf Weighing System
Weigh and count each material by the weighing method
Material No., weight, unit weight and quantity can be displayed on site for each material box
Upper and lower limit alarm of each material
Web Page Remote Configuration Part Name, BOM Number, unit weight, alarm mode, alarm lower limit, alarm upper limit
Web page to remotely view and monitor the status of each magazine
Mail sending alarm information,Trigger automatic feedingSluggish material management
Statistics function: replenishment statistics and picking consumption statistics
Picking and batching management
Docking MES or WMS System
PSC Floor Scale for Livestock Weighing
Accurate dynamic weighing The meter uses a unique dynamic animal weighing algorithm that allows accurate weighing even when the animal is moving on the scale
The indicator can be connected with the card reader through the serial port to collect the ear tag of the livestock, WiFi Bluetooth, Ethernet, or Profinet And other data transmission modes are transmitted to PLC or an PC to conveniently obtain the weight of the animal
Android Livestock Scale Weighing Tube SAPP, Supports user login management, equipment pairing management and weighing data recording and exporting functions.
Easy installation and maintenance For the mobile scale, the unique lever mobile weighing conversion mechanism is convenient and fast. For the fixed scale, various combined scale structures and combined fences are convenient for installation, maintenance and washing.
Side-mounted load cell installation box structure, away from water and feces, easy to install and maintain
Stable and reliable use
Open platform structure design, spray or hot dip galvanizing protection to prevent corrosion.
The metal sleeve protects the load cell cable and the signal cable from being bitten by rats and ensures the normal operation of the cable communication
High quality stainless steel load cell, laser welded, IP68 Protection class, key components are protected from moisture erosion to ensure stable and reliable weighing
WEBOWT Tire Weight Testing Scale 5kg-100kg
Features:  Automatically reading tire bar code
 Automatic weighing
 Connect MES system
 Automatic classification and code spraying
 Weighing record storage
 Touchscreen human-computer interaction
 Detection, and data upload
