ID551D01F10D (24VDC)
WEBOWT
8551P2D (24VDC)

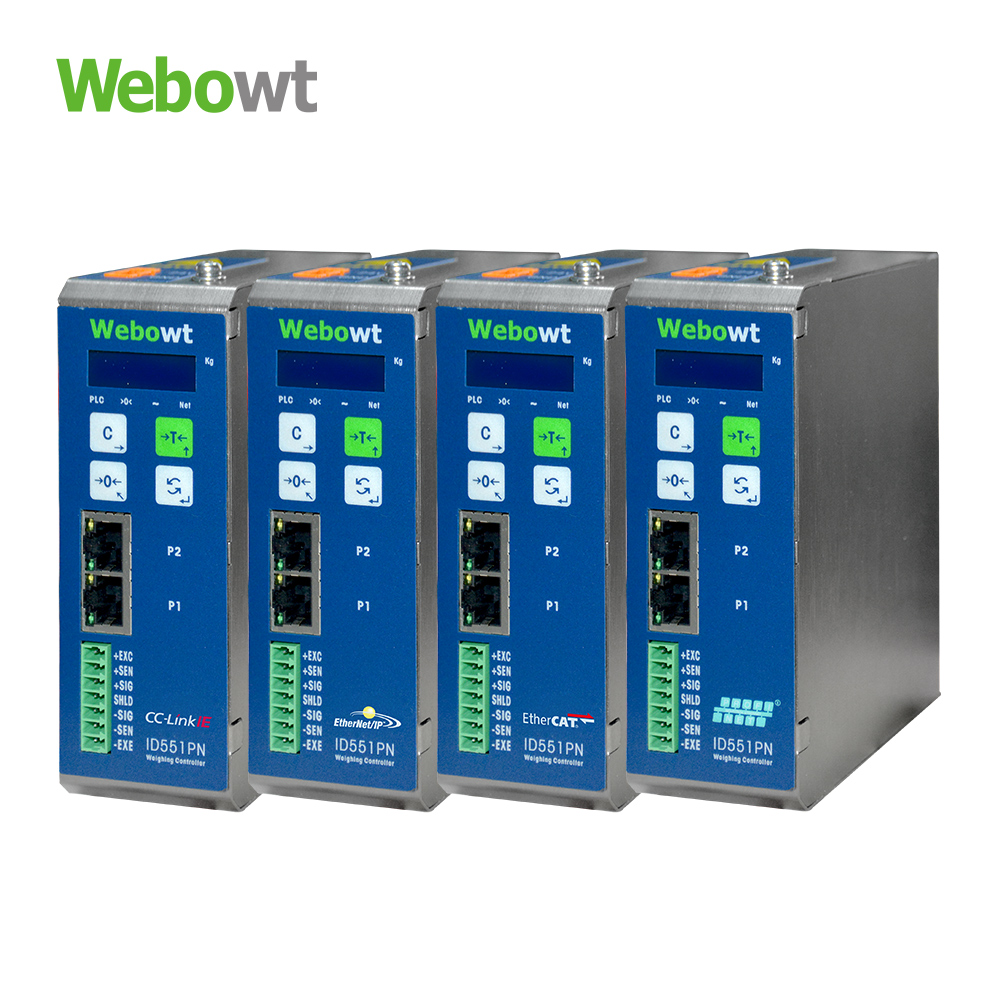

ID551PN
Product Features
7-bit LED display
Supports 1 analog scale input configuration
Single channel supports up to 8 350-ohm analog load cells;
High precision 7500e, ordinary precision 6000e, OIML: 6000e
OIML & CE certification
Supports single LAN port version and dual LAN ports version selection
Serial port: RS232/485, supports MODBUS-RTU
Single LAN port version supports: MODBUS-TCP, TCP, UDP
Dual LAN ports version supports: PROFINET, EtherNet/IP, CC-LINK IE FB, EtherCAT
Multiple calibration modes
Supports up to 5-point weight calibration
Calibration without weights
Remote calibration through PLC communication interface
Calibration with material
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 4W;
Installation Method
Metal housing standard industrial DIN
Product Selection Configuration
| Indicator Model Number | Shell Type | Hardware | Load Cell lnterface | PLC Interface | Housing Material | Application | Power Supply | |||
| ID551 | P | C | 1 | 0 | 1 | 0 | A | |||
| ID551PN | D:DIN Rail | 0:RS232/485 ordinary precision | 1:scale x1 interface | F:2 LAN ports(PROFINET) | 1:Metal housing | 0:Standard version | D:24VDC no power cable | |||
| M:1 LAN port MODBUS-TCP | A:110/220VAC without power supply D:24VDC no power cable | |||||||||
| 1:RS232/485 high precision | F:2 LAN ports(PROFINET) E:2 LAN ports(EtherNet/IP) A:2 LAN ports (EtherCAT) K:2 LAN ports (CC-LINKIE) | A:110/220VAC without power supply D:24VDC no power cable | ||||||||
Product Features
7-bit LED display
Supports 1 analog scale input configuration
Single channel supports up to 8 350-ohm analog load cells;
High precision 7500e, ordinary precision 6000e, OIML: 6000e
OIML & CE certification

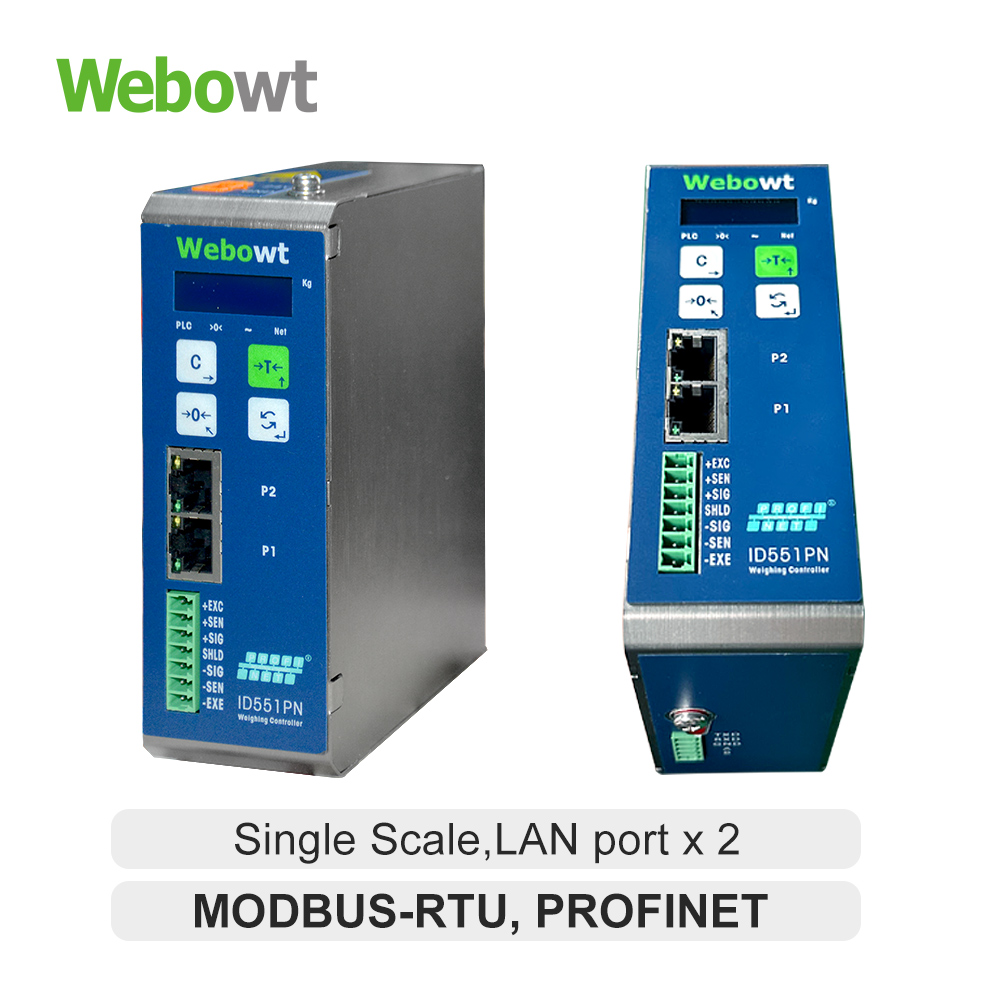

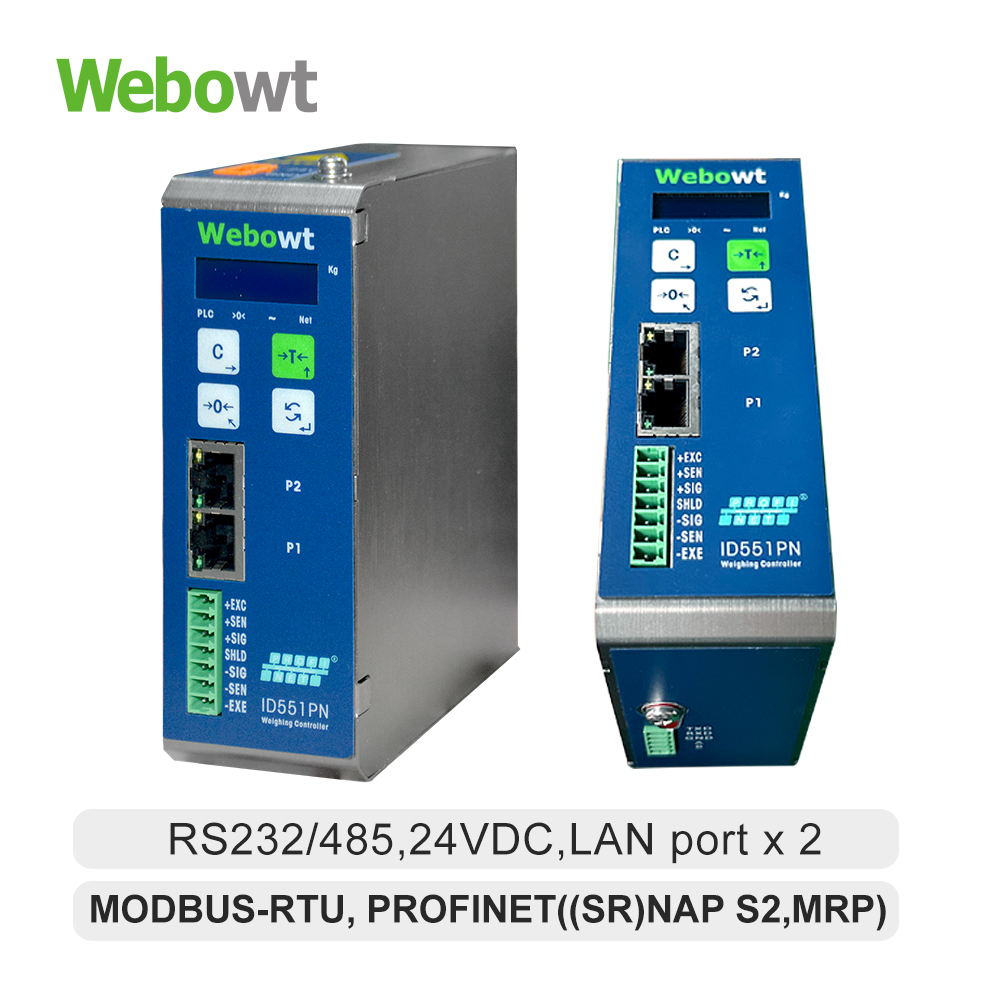

Supports single LAN port version and dual LAN ports version selection
