PMC/PMS
WEBOWT
PMC/PMS
Product Features
Ultra-low platform platform structure, easy to load and unload the platform with its own slope, flexible and fast movemen
PMC: carbon steel platform structure, patterned steel plate table, surface spray treatment
PMS: Stainless steel platform structure, flat table, sandblasted surface
Explosion-proof grade: Exia lICT4 Ga; ExiaD 20 T135
Product Selection Configuration
Configuration Selection Table:
| Product Name | PMC/PMS | |||
| Product Model | SCS-□ | |||
| Accuracy top level | Ⅲ | |||
| Applications | □Safe area;□ Explosion-proof area | |||
| Junction Box | AJB-015(PMC)/AJB-035(PMS) | |||
| Scale Material | Carbon Steel Plastic Spraying/PMS:Stainless Steel Sandblasting | |||
| Load Cell | WB702C alloy steel load cell /PMS:WB702 stainless steel load cell | |||
| Scale Height | 45mm | |||
| Scale Size | 300kg | 600kg | 1000kg | 1500kg |
| 600x600mm | ● | ● | ● | |
| 800×800mm | ● | ● | ● | |
| 1000×1000mm | ● | ● | ● | ● |
| 1200×1200mm | ● | ● | ● | ● |
| Calibration indexing value | 100g | 200g | 500g | 500g |

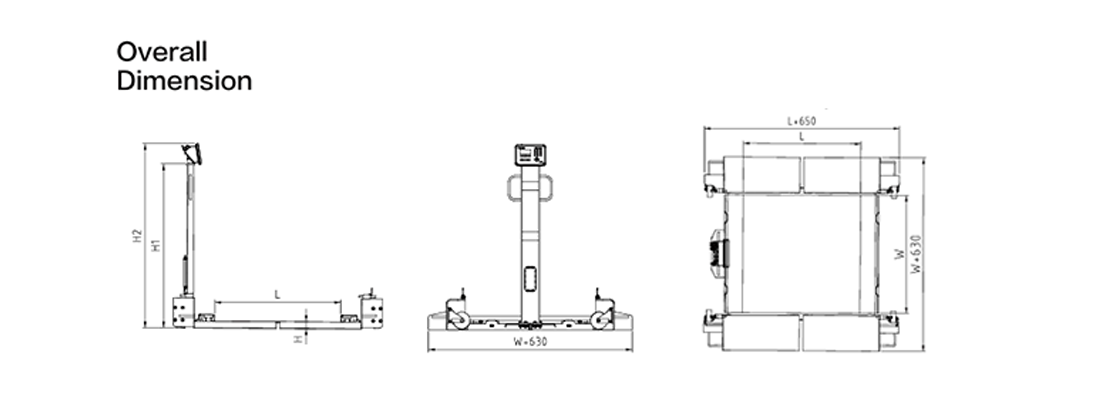

| Size(mm) | L(mm) | W(mm) | H(mm) | H1(mm) | H2(mm) |
| PMC/PMS 0606 | 600 | 600 | 45 | 1300 | 1460 |
| PMC/PMS 0808 | 800 | 800 | 45 | 1300 | 1460 |
| PMC/PMS 1010 | 1000 | 1000 | 45 | 1300 | 1460 |
| PMC/PMS 1212 | 1200 | 1200 | 45 | 1300 | 1460 |
