WBGD , Load Cell 15t ~ 500t
WEBOWT
WBGD
Product Features
Stainless steel material, laser welded seal, Protection class IP68
Self-stabilizing rocker pin structure, good long-term stability
Explosion-proof classification:
Ex ia II C T4T6 Ga
Ex ia III C T135℃T85℃ Db
High temperature load cells are available with a maximum allowable service temperature of 200°C
It is suitable for the weighing control application of truck scale, rail scale and large tonnage weighing module.
Product Selection Configuration
Naming rule:load cell LWA a-b-c-d-e-f-g-h-i
Product Type a | Model b | Elastomer Class C | Capacity (kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i |
LW-Load cell A-Analog Load cell | WBGD | (Blank): Stainless steel 2Cr13 | 15,20,25,30,40,50, 100 200,250,300,400,500 | N:Standard X:Explosion-proof | S:Norma temperature | C1,C3 | 13m,20m, 30m | A:Standard,output sensitivity 2.0 mV/N F:Customization |
Specifications | ||||
Model | WBGD | |||
Rated capacity | 15,20,25,30,40,50,100 | 200,250,300,400,500 | ||
Sensitivity | mV/V | 2±0.002 | 2±0.002 | |
Accuracy class | C3 | C1 | ||
Repeatability error | %R.C. | ≤0.01 | ≤0.02 | |
Lag | %R.C. | ≤0.02 | ≤0.035 | |
Non-linearity | %R.C. | ≤0.02 | ≤0.035 | |
Creep (30 minutes) | %R.C. | ≤0.0167 | ≤0.02 | |
Zero output | %R.C. | ≤1.0 | ≤1.0 | |
Temperature compensation range | ℃ | -10~+40 | -10~+40 | |
Opeclassification temperature range | ℃ | -40~+65 | -40~+65 | |
Temperature coefficient of sensitivity | %R.C./℃ | ≤0.0009 | ≤0.0009 | |
Zero temperature coefficient | %R.C./℃ | ≤0.002 | ≤0.0047 | |
Input impedance | Ω | 1150±15 | 1150±15 | |
Output impedance | Ω | 1000±3 | 1000±3 | |
Insulation resistance | MΩ | ≥5000 (100V DC) | ≥5000 (100V DC) | |
Recommended excitation voltage | V(DC/AC) | 5~15 | 5~15 | |
Maximum excitation voltage | V(DC/AC) | 20 | 20 | |
Safety overload | %R.C. | 150 | 150 | |
Extreme overload | %R.C. | 300 | 300 | |
P Rating | IP67 | IP67 | ||
Cable length | m | 13 | 1,320 | 30 |
*Cable length of explosion-proof load cell is no longer than 16 meters

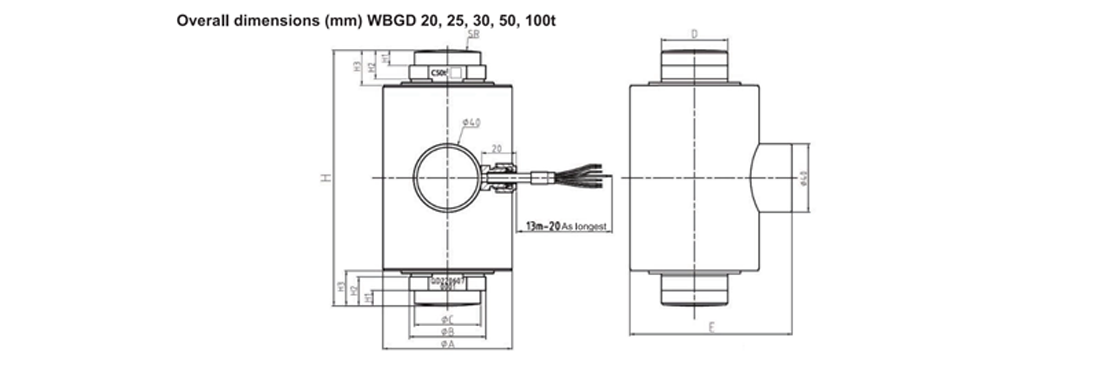

Cap(t) | A | B | C | D | E | H | H1 | H2 | H3 | SR |
15,20,25,30,40 | 76 | 45 | 39 | 39 | 96 | 150 | 9 | 17 | 20.7 | 160 |
50 | 76 | 45 | 39 | 39 | 96 | 150 | 9 | 17 | 20.7 | 305 |
100 | 102 | 66 | 62 | 62 | 122 | 150 | 9 | 17 | 20.7 | 305 |
*For size of 200~500t,please consult the factory
Cable color | Color code(four-core wire) |
Green | +Excitation(+EXC) |
Black | -Excitation(-EXC) |
Yellow | +Feedback(+SEN) |
Blue | -Feedback(-SEN) |
White | +Signal(+SIG) |
Red | -Signal(-SIG) |
Yellow(Long) | Shielded wire(SHLD) |
