In pharmaceutical manufacturing, accurate liquid batching and ingredient dosing are essential for maintaining consistent product quality and reliable production processes. Whether preparing pharmaceutical solutions, mixing liquid ingredients, or transferring materials between storage tanks, manufacturers need dependable weighing systems to monitor material quantities throughout the production process.
A pharmaceutical batching system typically involves multiple storage tanks, mixing vessels, dosing equipment, and automated control systems. Integrating weighing modules into these systems allows manufacturers to monitor tank weight changes, measure material additions, and improve the accuracy of batching operations.
Webowt's WB702 series weighing modules, including WB702, WB702CR, and WB702C, provide weighing solutions for industrial tanks, batching equipment, and process weighing applications. With different load capacities, structural configurations, and protection features, the series can be selected according to specific pharmaceutical production requirements.

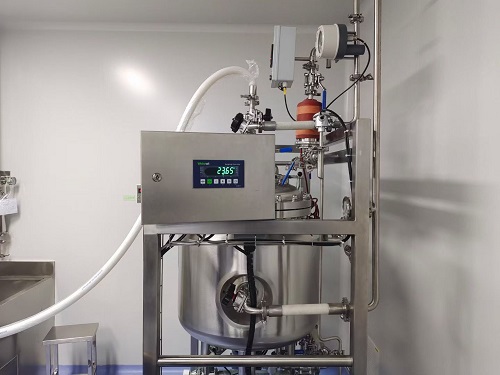

A pharmaceutical liquid batching system uses controlled quantities of raw materials to prepare a target solution or formulation. During this process, accurate weight measurement helps operators and automated control systems monitor how much material enters or leaves each tank.
A tank weighing system generally consists of weighing modules, a weighing indicator or transmitter, a control system, and supporting mechanical structures.

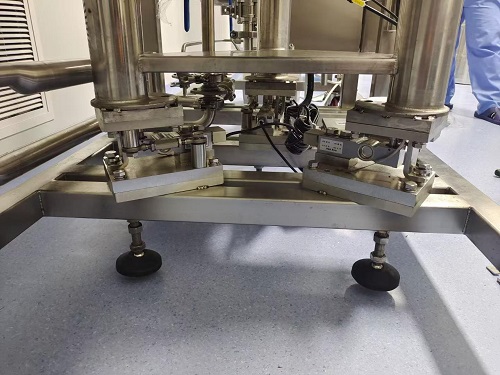

The weighing modules are installed between the tank support structure and its foundation. As liquid ingredients enter or leave the tank, the resulting weight changes are detected by the load cells and converted into electrical signals.
These signals are transmitted to weighing instruments or PLC systems for monitoring and process control.
Pharmaceutical production often requires liquid ingredients to be stored and transferred through stainless steel tanks and pipelines.
By installing weighing modules beneath a storage or batching tank, manufacturers can monitor the total tank weight and identify changes in material quantity during feeding and transfer operations.
This approach provides a practical measurement method for:
Monitoring the weight of liquid raw materials.
Measuring material additions during production.
Tracking the remaining quantity inside a tank.
Supporting inventory and material consumption management.
Accurate ingredient dosing is an important part of pharmaceutical liquid preparation.
For example, when preparing a solution containing several liquid ingredients, the control system can use weight feedback to monitor the amount of each material added to the batching tank.
A typical process includes:
The operator or production system enters the target batch parameters.
The first liquid ingredient is transferred into the tank.
The weighing system monitors the increasing tank weight.
When the target weight is reached, the control system stops or adjusts the feeding process.
The next ingredient is added according to the predefined batching sequence.
Compared with manual measurement methods, an integrated tank weighing system can provide more consistent weight feedback and support automated dosing operations.
The actual dosing accuracy depends on the weighing module, tank structure, piping connections, control logic, and overall system calibration.
After ingredient dosing, the liquid materials are transferred through a mixing process to achieve the required formulation.
During mixing, the weighing system can continue monitoring the tank weight and provide useful information for production monitoring and material accounting.
For tanks equipped with agitators, the weighing structure must also consider vibration, horizontal forces, and mechanical interference.
Selecting an appropriate weighing module helps maintain reliable measurement under the intended operating conditions.
Pharmaceutical manufacturers have specific requirements for weighing equipment because measurement reliability, production consistency, and process traceability are important throughout manufacturing.
When selecting a pharmaceutical weighing module, several technical factors should be considered.
A weighing system must have an appropriate capacity to support the tank's operating conditions.
The selection process should consider:
Empty tank weight.
Maximum liquid filling weight.
Additional equipment and structural loads.
Dynamic loads during mixing and feeding.
Required measurement resolution and accuracy.
The weighing capacity should be selected based on the total load and actual application conditions rather than the maximum liquid weight alone.
Pharmaceutical batching tanks may have different support structures, dimensions, and installation configurations.
A weighing module must match the tank's support points and mechanical design.
Important considerations include installation height, mounting dimensions, load distribution, and the potential influence of external forces.
For tanks with agitators or connected pipelines, the installation should also minimize mechanical interference that could affect weighing performance.
Pharmaceutical production environments may involve regular equipment cleaning, moisture exposure, and contact with cleaning agents.
Therefore, the protection rating and material of the weighing module should be evaluated according to the actual installation environment.
For applications requiring higher protection against moisture and water ingress, an appropriately rated weighing module can help improve long-term operational reliability.
Tank weighing systems may experience uneven loading, equipment movement, or horizontal forces during operation.
These conditions can affect load cell performance if the mechanical installation is not properly designed.
Weighing modules equipped with overload protection, anti-tipping structures, and horizontal restraints can help protect the weighing system under suitable operating conditions.
Webowt offers several WB702 series weighing modules for industrial tank weighing, material batching, and process weighing applications.
The WB702, WB702CR, and WB702C models feature different structural configurations and load capacities, allowing equipment manufacturers and system integrators to select suitable solutions according to their project requirements.

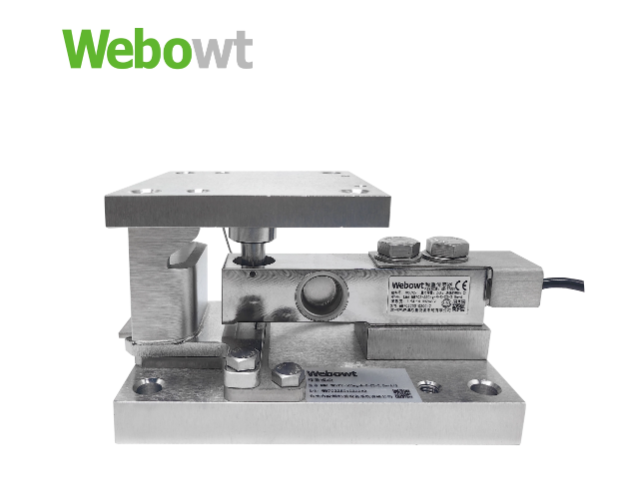

The WB702 Digital Weighing Module is designed for industrial tank weighing and process weighing applications.
Its structural design and protection features make it suitable for weighing installations where environmental protection and stable load measurement are important considerations.
Key Features:
Capacity range: 0.22t–4.4t.
C3, C6, and C10 accuracy class options.
Stainless steel construction options.
Welded sealing design.
IP68 protection rating.
Low-profile installation structure.
Optional explosion-proof configuration.
Application in Pharmaceutical Batching Systems
The WB702 can be integrated into pharmaceutical storage tanks, liquid batching vessels, and process weighing equipment.
For example, when installed beneath a liquid storage tank, the modules measure changes in the total tank weight as raw materials are added or transferred.
The resulting weight signals can be connected to weighing indicators or PLC systems to support material monitoring and batching control.
For pharmaceutical equipment manufacturers, the WB702 provides a practical weighing component for tank weighing system integration.
The WB702CR Weighing Module features a 2Cr13 stainless steel load cell and a protective mechanical structure designed for industrial weighing applications.
Compared with standard tank weighing configurations, its protection features make it particularly relevant to installations where mechanical movement and horizontal forces need to be considered.
Key Features:
Capacity range: 0.22t–4.4t.
2Cr13 stainless steel load cell.
Anti-tipping protection.
Overload protection.
360-degree horizontal restraint.
Optional horizontal tie rod to help stabilize tank movement.
Suitable for static and dynamic weighing applications.
Application in Pharmaceutical Batching Systems
In pharmaceutical production, some batching tanks are equipped with agitators or mixing devices. During operation, these components may generate vibration and horizontal forces that influence the mechanical loading conditions of the weighing system.
The WB702CR can be considered for:
Pharmaceutical liquid mixing tanks.
Ingredient batching vessels.
Storage tanks with agitators.
Industrial process weighing systems.
Its mechanical protection features help address certain installation challenges associated with tank movement and uneven loading.
The final configuration should be selected according to the tank structure, installation conditions, and expected operating loads.
The WB702C Weighing Module is another option in Webowt's WB702 product family, designed for industrial weighing installations requiring a compact mechanical structure.
Its alloy steel construction and low installation height make it suitable for integration into different types of industrial weighing equipment.
Key Features:
Capacity range: 0.25t–5t.
Alloy steel construction.
Low-profile installation design.
IP65 protection rating.
Optional explosion-proof configuration.
Application in Pharmaceutical Batching Systems
The WB702C can be considered for industrial storage tanks, batching equipment, and process weighing systems where its capacity and protection specifications match the application requirements.
For pharmaceutical equipment manufacturers and system integrators, it provides another configuration option when designing tank weighing systems.
Before selecting this model, users should confirm the required environmental protection, material compatibility, and installation conditions.
Modern pharmaceutical production increasingly relies on automated equipment to improve process consistency and operational efficiency.
Integrating weighing modules into an automated batching system allows weight measurements to become part of the overall production control process.
A typical system includes the following components:
1. Pharmaceutical Storage and Batching Tanks
Liquid ingredients are stored in designated tanks before being transferred into the batching vessel.
2. WB702 Series Weighing Modules

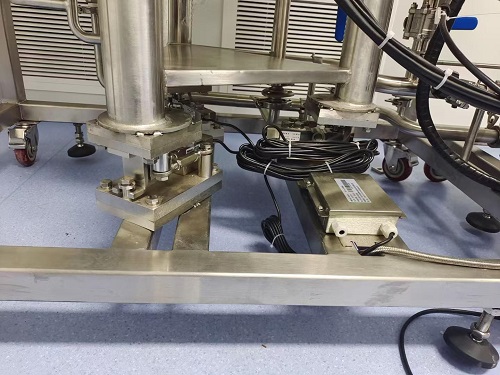

Weighing modules are installed beneath the tank support points to measure the total tank weight and detect changes during material feeding or discharge.
3. Weighing Indicators and Transmitters
The weighing signals are processed by compatible instruments or transmitters and converted into usable measurement data.
4. PLC and Automatic Control System
The PLC receives weighing data and executes predefined control logic, such as opening or closing feeding valves when target weight conditions are reached.
5. Production Data Management
The control system can record relevant weighing information and connect it with production management software to support batch documentation and process traceability.
Through this integration, a tank weighing system can support several production operations:
Raw material weight measurement.
Automatic ingredient dosing.
Batch quantity monitoring.
Mixing process monitoring.
Material consumption management.
Production data recording.
For pharmaceutical applications requiring audit trails, the overall system must also be designed and validated according to applicable regulatory and data integrity requirements. A weighing module alone does not provide a complete compliant audit trail system.
Selecting a suitable weighing module requires evaluating both the technical specifications and the actual tank installation conditions.
The following factors can help pharmaceutical manufacturers and system integrators make a more informed decision.
Calculate the total load, including:
Tank dead weight.
Maximum material weight.
Internal equipment weight.
Additional mechanical loads.
Appropriate design allowance.
The selected weighing module must operate within its rated capacity under the expected loading conditions.
The number of weighing modules depends on the tank's support structure and mechanical design.
For example, a tank supported by three or four points may require a corresponding number of weighing modules.
Load distribution should be evaluated to ensure that each module operates within its rated capacity.
Consider whether the tank is installed in a wet cleaning area, a chemically exposed environment, or a location with specific hygiene requirements.
The module's material, sealing design, and protection rating should match the actual environment.
For tanks equipped with mixers, pumps, or other moving equipment, vibration and horizontal forces should be considered during system design.
A suitable mechanical weighing structure can help reduce unwanted forces on the load cells and improve measurement stability.
Before purchasing, confirm the compatibility of the weighing modules with the weighing indicator, PLC, and other control equipment.
The complete system should be evaluated for signal processing, calibration, communication interfaces, and data management requirements.
Need help selecting a weighing module for your pharmaceutical batching tank?
Contact Webowt with your tank capacity, number of support points, required weighing accuracy, installation dimensions, and operating environment. The technical team can help evaluate a suitable WB702 series configuration for your project.
Q1: What is a pharmaceutical weighing module used for?
A pharmaceutical weighing module is used to measure the weight of materials inside tanks, vessels, and batching equipment. It can support raw material measurement, liquid ingredient dosing, tank weighing, and production process monitoring.
Q2: Can WB702 weighing modules be used for pharmaceutical liquid batching tanks?
Yes. The WB702 series can be considered for pharmaceutical storage tanks, liquid batching vessels, and industrial process weighing applications. The appropriate model depends on tank capacity, installation structure, environmental conditions, and required weighing performance.
Q3: What is the difference between WB702 and WB702CR?
The WB702 offers a welded sealing design, IP68 protection, and stainless steel construction options. The WB702CR features a 2Cr13 stainless steel load cell and additional mechanical protection features, including anti-tipping and overload protection. The two models serve different installation and operating requirements.
Q4: How do weighing modules integrate with an automated batching system?
Weighing modules measure tank weight changes and send signals to compatible weighing instruments or transmitters. These devices communicate with a PLC or control system, which can use the measurement data to control feeding valves, monitor batching operations, and record production information.
Q5: How many weighing modules are needed for a pharmaceutical storage tank?
The number depends on the tank's support points and structural design. Three-point and four-point weighing configurations are common, but the final arrangement should be determined according to the tank structure, load distribution, and installation requirements.
Choosing the right weighing module is an important step in building a reliable pharmaceutical batching system.
Webowt provides industrial weighing components and solutions for tank weighing, material batching, and automated process weighing applications.
The WB702 series includes different capacity ranges, structural configurations, and protection options to meet various industrial weighing requirements.
Whether you are designing a new pharmaceutical liquid batching system, upgrading existing tank weighing equipment, or sourcing weighing modules for OEM equipment manufacturing, Webowt can help you evaluate a suitable product configuration.
