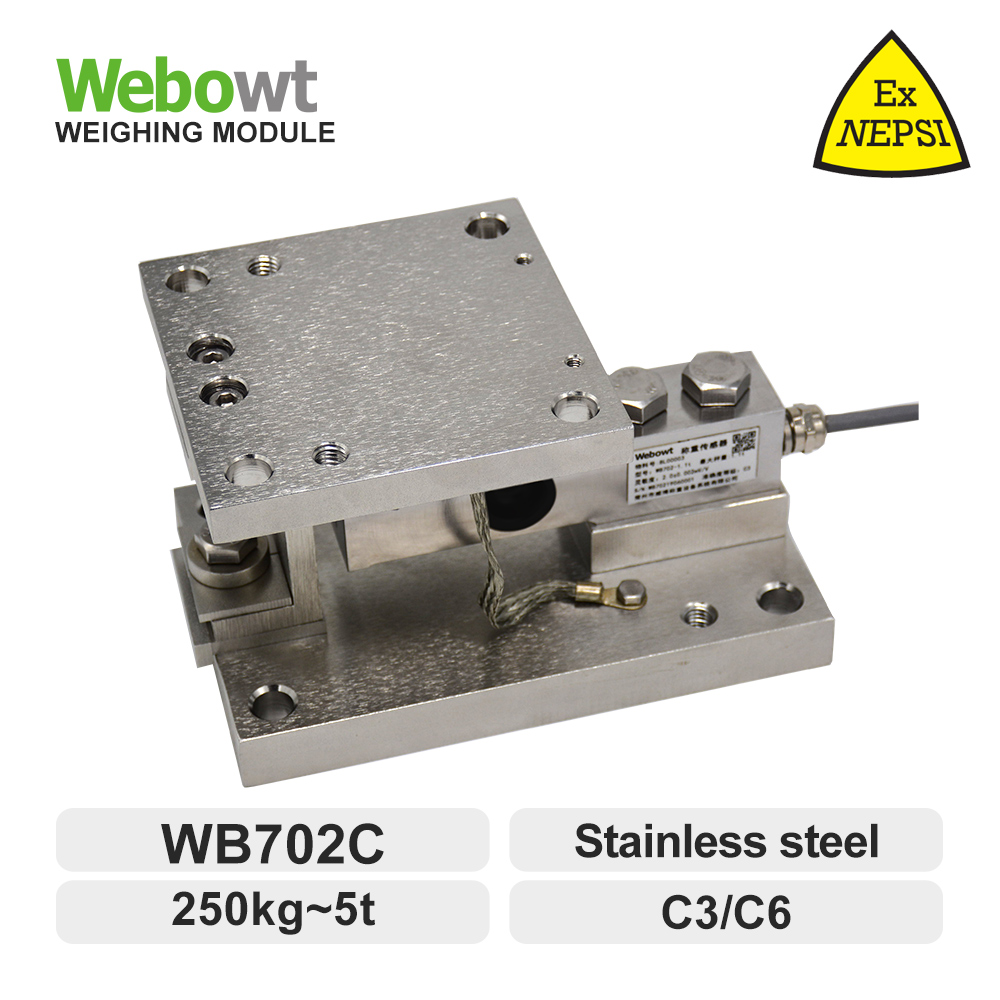

MWA WB702 , Weighing Module 0.22t ~ 4.4t
WEBOWT
1003169
WB702C
Product Features
Adopt 2Cr13 Stainless steel load cel
Overturn protection, overload protection
360° Circumferential horizontal limit protection
Configurate with horizontal pull rod can stabilize equipment shaking
Suitable for both dynamic and static weighing applications
Stainless steel and alloy steel module structural parts
It is suitable for the batching weighing of tanks and various process weighing.
Explosion-proof classification: Ex ia llC T4Ga; Ex iaD 20 T135
Product Selection Configuration
Naming rules:weighing module MWA(a)-b-c-d-e-f-g-h-i/j
| Product Type a | Model b | Elastomer Class C | Capacity (kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i | Module Material |
| MW-Weighing module A-Analog Load cell | WB702C | (Blank): Stainless steel 2CR13 | 0.25,0.5,1 2,3,5t | N:Standard X:Explosion-proof | S:Normal temperature | C3/C6 | 3.5,6m | A:Standard,output sensitivity 2.0mV/V F:Customization | C:Alloy steel material S:Stainless steel |

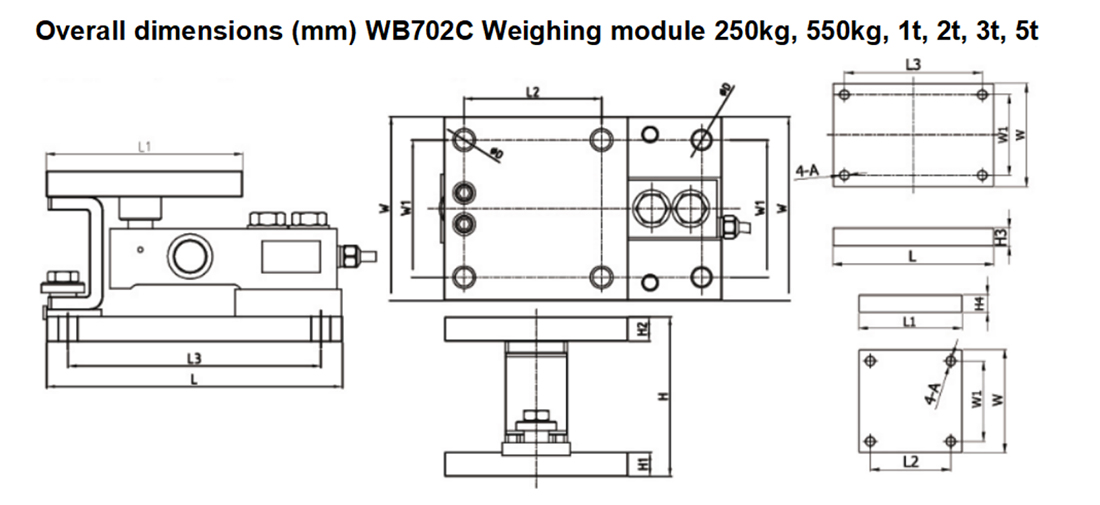

| Cap(t) | D | H | H1 | H2 | L | L1 | L2 | L3 | W | W2 | A | H3 | H4 |
| 220kg,550kg,1t | 11.5 | 105.2 | 19.1 | 12.7 | 178 | 114.4 | 89 | 152.4 | 114.4 | 89 | M10 | 20 | 20 |
| 2t,3t | 11.5 | 105.2 | 19.1 | 12.7 | 178 | 114.4 | 89 | 152.4 | 114.4 | 89 | M10 | 20 | 20 |
| 4.4t | 17.5 | 136.6 | 25.4 | 19.1 | 235 | 152.4 | 101.6 | 184.2 | 152.4 | 101.6 | M16 | 20 | 20 |
For details on load cells,see WB702 Cantilever Load cell
