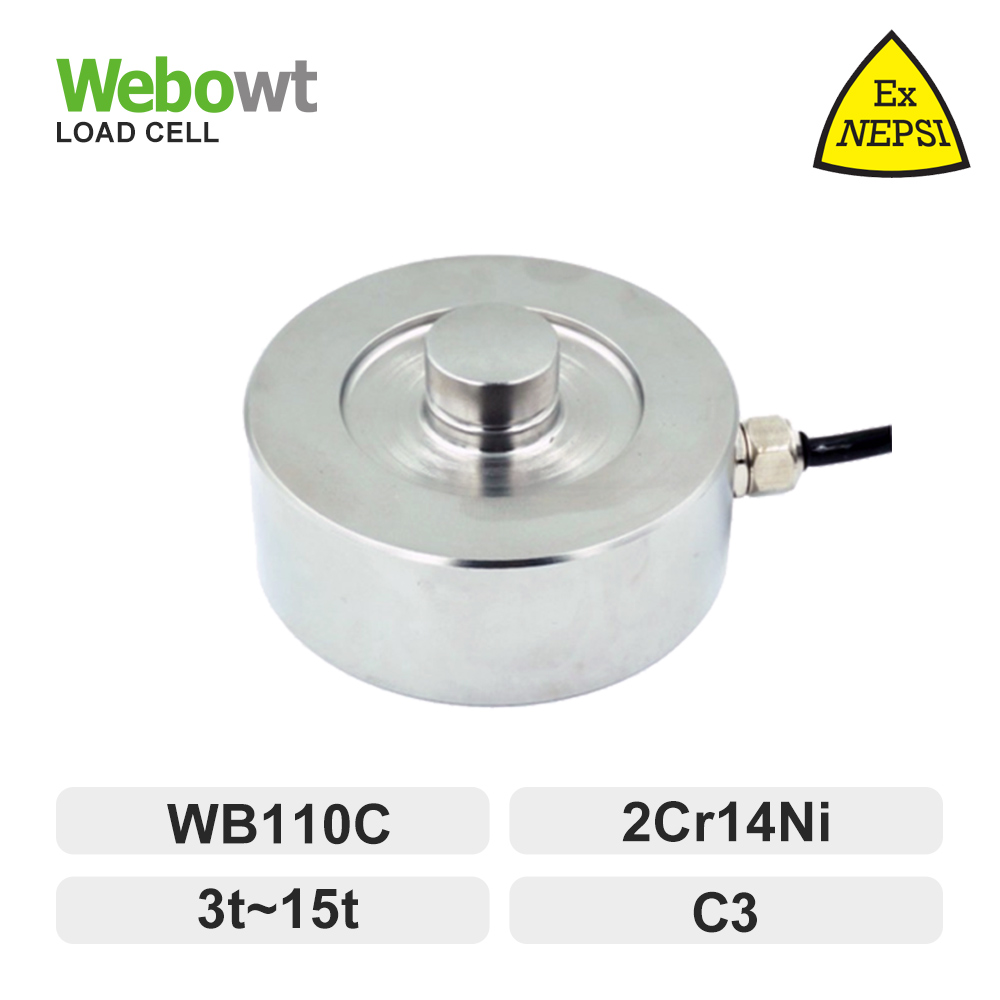

WB110C , Load Cell 3t ~ 15t
WEBOWT
WB110C
Product Features
Low height, small deformation and small overall dimension
Stainless steel material, high temperature can be customized
IP Class IP67
Explosion-proof classification: Ex ia MC T4 Ga; Ex iaD 20 T135
It is suitable for tank weighing, automatic assembly, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing, measurement and control systems.
Product Selection Configuration
Naming rule:load cell LWA(a)-b-c-d-e-f-g-h-i
| Product Type a | Mode b | Elastomer Class C | Capacity (kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i |
| LW-Load cell A-Analog Load cell | WB110C | (Blank): Stainless steel 2Cr14Ni | 3,5,7.5,10,15 | N:Standard X:Explosion-proof | S:Normal temperature | C3 | 6m | A:Standard,output sensitivity 2.0 mV/V F:Customization |
| Specifications | |||||||
| Mode | WB110C | ||||||
| Rated capacity | 3 | 5 | 7.5 | 10 | 15 | ||
| Sensitivity | mV/V | 2±0.002 | |||||
| Accuracy class | C3 | ||||||
| Repeatability error | %R.C | ≤0.01 | |||||
| Lag | %R.C. | ≤0.03 | |||||
| Non-linearity | %R.C. | ≤0.03 | |||||
| Creep (30 minutes) | %R.C. | ≤0.02 | |||||
| Zero output | %R.C. | ≤1 | |||||
| Temperature compensation range | ℃ | -10~+40 | |||||
| Opeclassification temperature range | ℃ | -40~+65 | |||||
| Temperature coefficient of sensitivity | %R.C./℃ | ≤0.003 | |||||
| Zero temperature coefficient | %R.C./℃ | ≤0.003 | |||||
| Input impedance | Ω | 780±10 | |||||
| Output impedance | Ω | 700±1 | |||||
| Insulation resistance | MΩ | ≥5000 (100V DC) | |||||
| Recommended excitation voltage | V(DC/AC) | 5~15 | |||||
| Maximum excitation voltage | V(DC/AC) | 20 | |||||
| Safety overload | %R.C. | 150 | |||||
| Extreme overload | %R.C. | 300 | |||||
| IP Rating | IP68 | ||||||
| Cable length | m | 6 | |||||
| Recommended Bolts | Bolt size | M8 | M10 | ||||
| Strength class | Class 8.8 or above | ||||||
| Tightening torque | Nm | 25 | 50 | ||||
