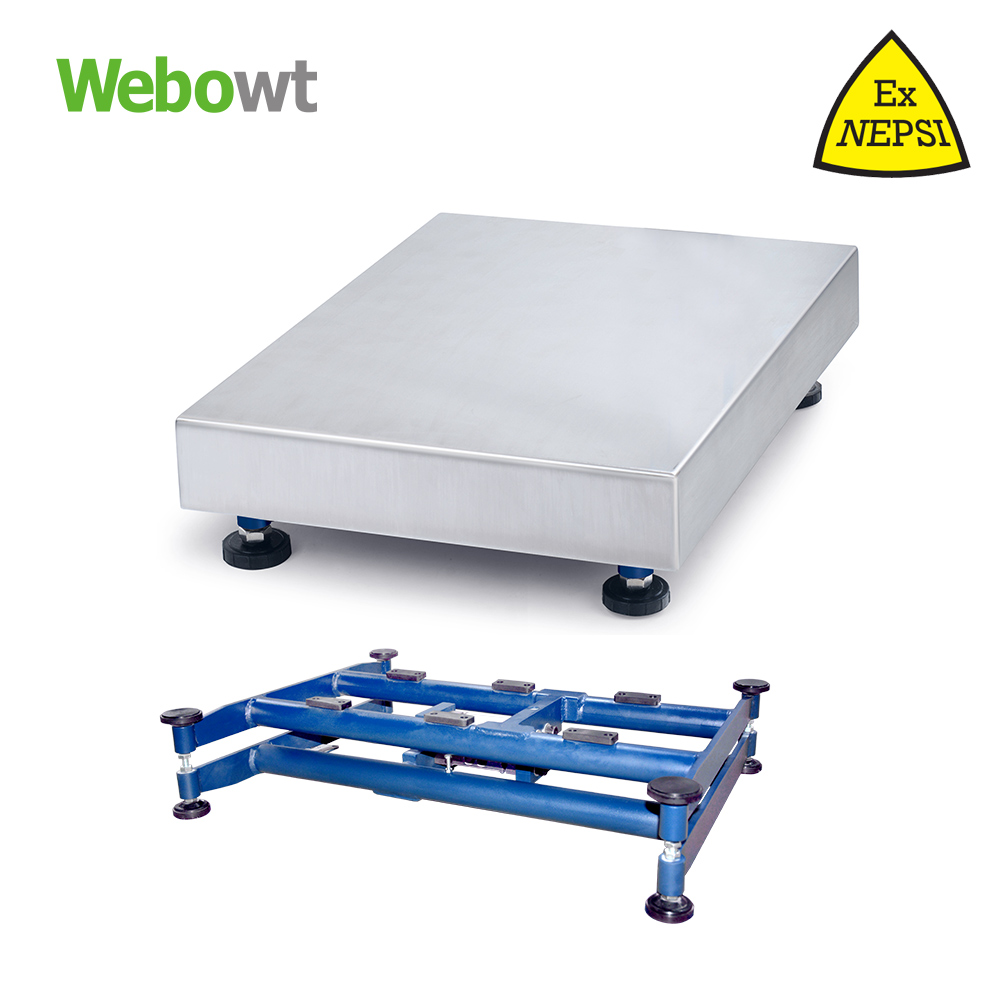

RLC Series Platform Scale
WEBOWT
RLS/RLC
Product Features
Heavy-duty electronic scale for dry environment or micro-water environmen
RLC: Round pipe Carbon steel plastic sprayed scale body, A304 Stainless steel table top
It is suitable for applications with large table top, high strength weighing and impact resistance.
Product Selection Configuration
Specification and model
| Product Name | RLC/RLS | |||
| Scale material | RLC:Carbon steel plastic sprayed scale body,stainless steel table;RLS:AIl A304 stainless steel | |||
| Load cell | RLC:WB702ILLoad cell;RLS:WB702SH Load cell | |||
| Column | Standard configuration:stainless steel round pipe column/Optional:carbon steel or stainless steel square pipe column | |||
| Application | □Safety area □Explosion-proof area | |||
| Capacity | ||||
| Scale Size | 60kg | 150kg | 300kg | 600kg |
| 450×600mm | ● | ● | ● | |
| 600×800mm | ● | ● | ● | |
| Verification division value | 20g | 50g | 100g | 200g |
| Environment,IP Rating | Dry environment or micro-water environment,IP65 | |||
| Model | a | b | C | d | e | h |
| RLC/RLS-450×600 | 450 | 600 | 156 | 385 | 535 | 54 |
| RLC/RLS-600×800 | 600 | 800 | 156 | 535 | 735 | 54 |
