ID550, Harsh

6-bit LED display
Supports analog scale input x 1, and up to 6 load cells
Supports 60,000 display divisions
Standard with serial port x 1 RS232/485
Standard supports MODBUS-RTU, PROFINET communication interface board (dual LAN ports, built-in switch, Siemens PLC)
Options:
  • scale x 1 4-20 mA (16-bit precision DAC)
  • In x 4 / OC Out x 6
  • In x 4 / Relay Out x 6
Multiple calibration modes
  • Supports up to 2-point weight calibration
  • Calibration without weights
  • Remote calibration via PLC communication interface
  • Remote calibration via MODBUS-RTU communication interface
Supports applications
  • Basic weighing version
  • Material level weighing
  • Single-speed/dual-speed preset point fixed value control
  • Lower/upper limit level detection
Working power supply: DC 24VDC, the maximum power consumption of the complete machine is less than 6 W
Power Supply:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ID550H00000G

  • WEBOWT

  • 8550009

  • ID550

Order No.: 8550009

Model No.: ID550H00000G

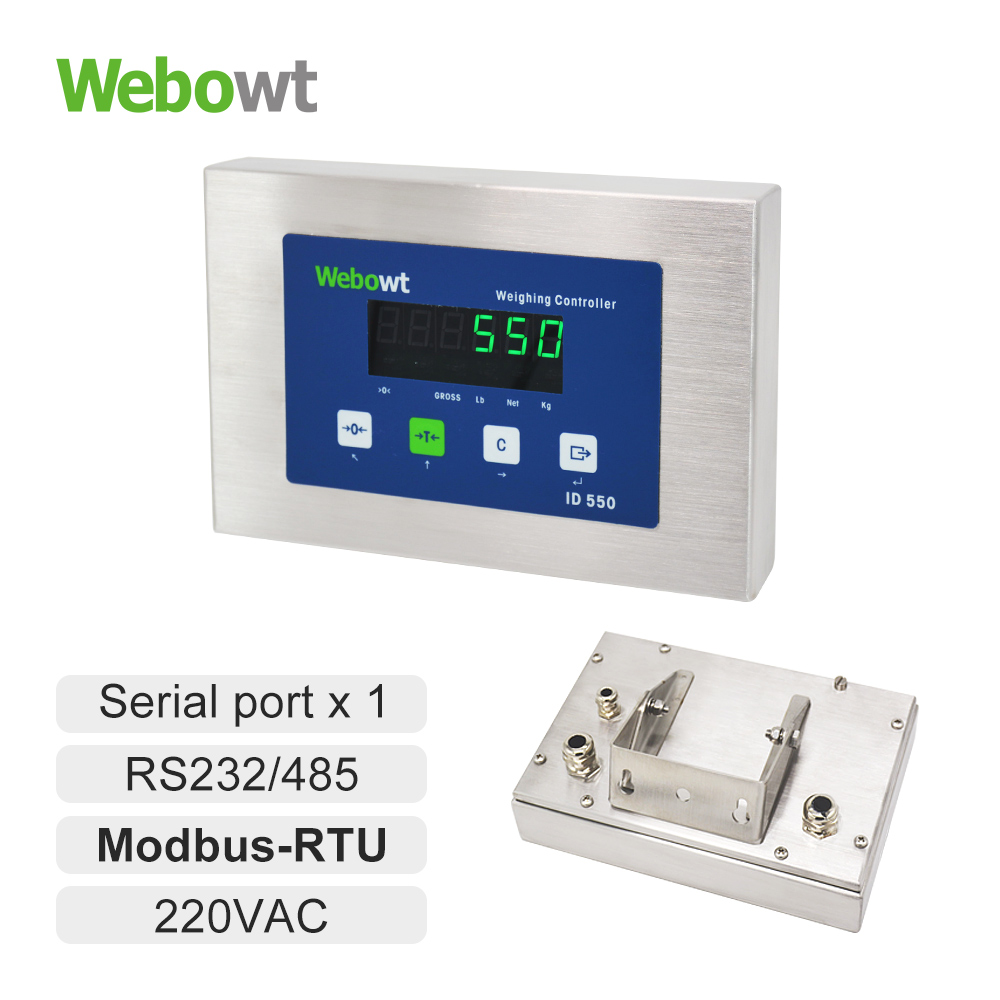

ID550, Harsh,

Green LED,

1 serial port(RS232/485),

MODBUS-RTU,

Basic software version,

220VAC, GB power cord


ID550 Process Controller
  • 6-digit Green LED display

  • Support 1-way analog scale, supporting up to 6 sensors

  • CPA 3000e certification accuracy, up to 60000 display divisions

  • Standard configuration with 1 serial port RS232/485

  • Standard configuration supporting MODBUS-RTU, PROFINET, Simens PLC, LANX2, Built-in Switch, etc.

  • Options:

> 1 channel 4-20mA(16 bit precision DAC)
> InputX4 / OC outputX4
> InputX4 / Relay outputX4
  • Multiple calibration modes

> Up to 2-point weight calibration
> No test weight calibration
> Remote calibration through PLC communication interface
> Remote calibration through MODBUS-RTU communication interface
  • Support application:

> Basic weighing version
> Single speed/double speed preset point setting control
> Lower/upper limit level detection
> Material level based weighing
  • Working power supply:

> 24VDC, the maximum power consumption of the whole machine is less than 6W
> 220VAC, the maximum power consumption of the whole machine is less than 6W
