Power Supply: | |
---|---|
Scale interface: | |
PLC interface: | |
Wireless communications: | |
I/O选件: | |
Application: | |
Language: | |
Availability: | |
Quantity: | |
FW650810001410A
WEBOWT
86500030
FW650 Exd
Product Features
Order No.: 86500030
Model No.: FW650810001410A

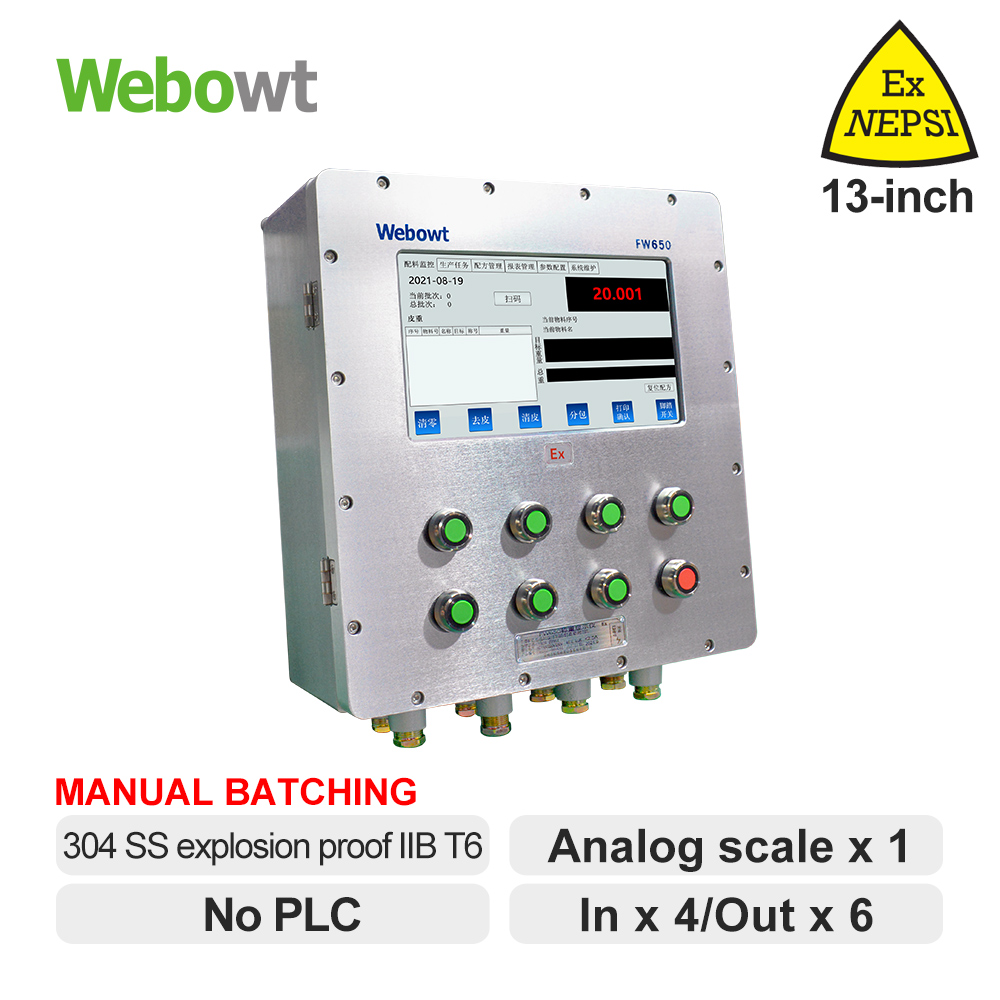

EXD FW650, SS304 Exd box with control button, IIB T6,
Analog scale x 1,USB x 4, Four serial ports,
No PLC, IN x 4 / OUT x 6,
13'' LCD Touchable HMI,
220VAC with power cord,
Manual Batching,
6000e
7’’ or 13’’ color LCD touchable HMI, language switching between Chinese and English
Supporting one or two analog scale input, up to 10 load cells
CPA 6000e certified accuracy, up to 150,000d display division
Standard configuration: Serial Port X 4, USB x 4, LAN Port x 1(with built-in switch), 32G SD Memory
Supporting the connection with wireless mouse, keyboard, USB flash disk and code scanning gun
Standard supporting MODBUS-RTU, MODBUS-TCP(Only for LAN Port version)
Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
PLC Options:
PROFIBUS-DP (Siemens PLC)
CC Link (Mitsubishi PLC)
PROFINET (LAN Port x1, built-in switch, Siemens PLC)
EtherNet/IP (LAN Port x1, built-in switch, Rockwell PLC, Delta PLC)
4-20mA x1(16-bit precision DAC)
4-20mA x2(16-bit precision DAC)
Wireless Options:
WIFI wireless
4G wireless (Huawei 4G module)
Standard configuration:
4 serial ports
1 LAN ports (built-in switch function)
32G memory card
4 USB interfaces, supports the connection of wireless keyboard, mouse,USB flash disck and scanning gun
I/O Options:
IN x4 / OC OUT x6
IN x8 / OC OUT x12
Multi-calibration:
Support up to 5-point test weight calibration
No test weight calibration
Remote calibration via PLC
Supports applications:
Industry 4.0 smart weighing and labeling, MES terminal version
Manual batching version
Automatic batching version
Filling version
Intelligent shelves management version
Material tower weighing IoT version
Typical Applications:
MES Terminal (Weighing, Print label, Save weighing records, share data to MES, Industry 4.0 Weighing)
Manual Batching
Automatic Batching
Filling process control
Material tower weighing(IOT Application)
Inventory Smart-shelf Weighing
Three level authority management
Change Log inside
Working power supply:
Supporting 85-264VAC or 24VDC, and the maximum power consumption of the whole machine is less than 6W
