EXD FW650,touch screen explosion proof control box with button (7 inches)

7 "or 13" LCD color touch screen, supports switching between Chinese and English
Supports scale x 1 analog scale or analog scale x 2 input, supports up to 10 load cells
Measuring Indicator Type Approval (CPA) 6000e certified accuracy, supports up to 150,000 display divisions
Standard configuration:
  • 4 serial ports
  • 2 LAN ports (built-in switch function)
  • 32G memory card
  • 4 USB interfaces, supports the connection of wireless keyboard, mouse, USB flash disck and scanning gun
Supports MODBUS-RTU and MODBUS-TCP as standard
PLC communication interface option
  • PROFIBUS-DP (Siemens PLC)
  • CC-link (Mitsubishi PLC)
  • PROFINET (dual LAN ports, built-in switch, Siemens PLC)
  • EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
  • scale x 1 4-20 mA (16-bit precision DAC)
  • scales x 2 4-20 mA (16-bit precision DAC)
Unlimited communication interface
WIFI wireless
4G wireless (Huawei 4G module)
I/O (input/output options)
  • In x 4 / OC Out x 6
  • In x 8 / OC Out x 12
Multiple calibration modes
  • Supports up to 5-point weight calibration
  • Calibration without weights
  • Remote calibration through PLC communication interface
Supports applications
  • Industry 4.0 smart weighing and labeling, MES terminal version
  • Manual batching version
  • Automatic batching version
  • Filling version
  • Intelligent shelves management version
  • Material tower weighing IoT version
Three-level authority managementModify the log
The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 20W
Body type:
Scales interface:
storage:
PLC:
Wireless communications:
I/O:
Application:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • FW6505000W00F0A

  • WEBOWT

  • 86500052

  • FW650 Exd

Order No.: 86500052

Model No.: FW6505000W00F0A

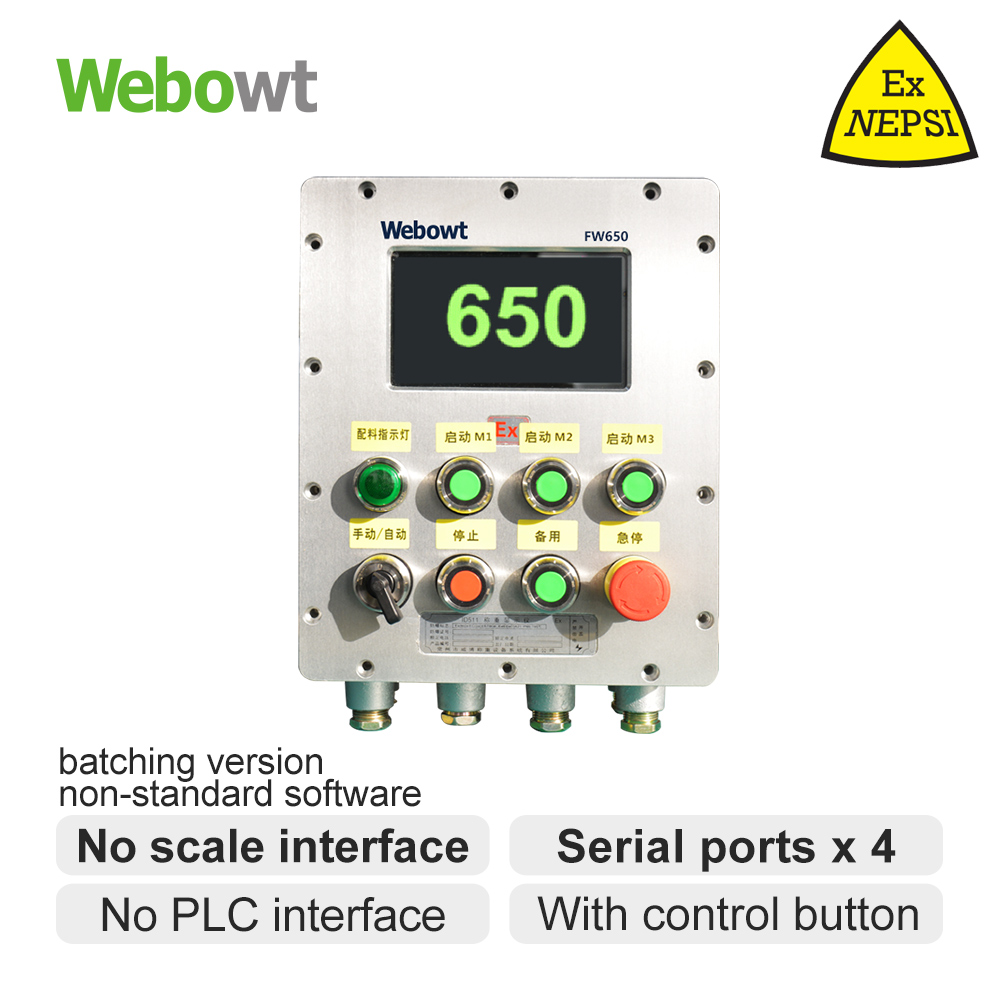

EXD FW650, Aluminium Exd box with control buttons,

IIB T6,

No scale interface,USB x 4, Four serial ports,

No PLC I/F, IN x 4 / OUT x 6,

7'' LCD Touchable HMI,

220VAC with power cord,

Batching, Customized software



EXD FW650 Isolation explosion-proof weighing Controller
  • 7’’ or 13’’ color LCD touchable HMI, language switching between Chinese and English

  • Supporting one or two analog scale input, up to 10 load cells

  • CPA 6000e  certified accuracy, up to 150,000d display division

  • Standard configuration: Serial Port X 4, USB x 4, LAN Port x 2(with built-in switch), 32G SD Memory

  • Supporting the connection with wireless mouse, keyboard, USB flash disk and code scanning gun

  • Standard supporting MODBUS-RTU, MODBUS-TCP(Only for LAN Port version)

  • PLC Options:

      > PROFIBUS-DP (Siemens PLC)
      > CC Link (Mitsubishi PLC)
      > PROFINET (LAN Port x2, built-in switch, Siemens PLC)
      > EtherNet/IP (LAN Port x2, built-in switch, Rockwell PLC, Delta PLC)
      > 4-20mA x1(16-bit precision DAC)
      > 4-20mA x2(16-bit precision DAC)
  • Wireless Options:

      > WIFI
      > 4G
  • I/O Options:

      > IN x4 / OC OUT x6
      > IN x8 / OC OUT x12
  • Multi-calibration:

      > Support up to 5-point test weight calibration
      > No test weight calibration
      > Remote calibration via PLC
  • Typical Applications:

      > MES Terminal (Weighing, Print label, Save weighing records, share data to MES, Industry 4.0 Weighing)
      > Manual Batching
      > Automatic Batching
      > Filling process control
      > Material tower weighing(IOT Application)
      > Inventory Smart-shelf Weighing
  • Three level authority management

  • Change Log inside

  • Working power supply:

      > Supporting 85-264VAC or 24VDC, and the maximum power consumption of the whole machine is less than 6W
