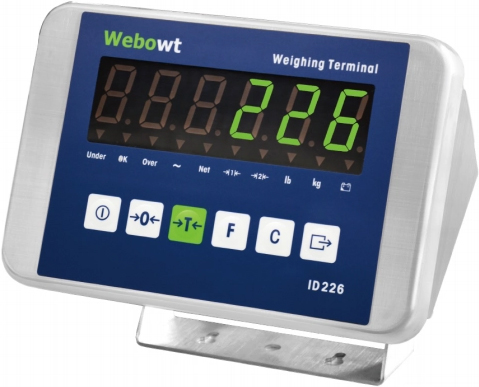

What is a Weighing Scale Indicator and How Does it Work

You use a weighing scale indicator to see the weight in a weighing system. This device connects the load cells to the display. It changes the force from objects into numbers you can read. Analog indicators have moving dials. Digital indicators show numbers on a screen. Good signal conversion and display give you correct measurements every time. You need to calibrate and maintain the indicator often. This helps stop common mistakes that can make the weight wrong, such as:

1. Overload error happens when there is too much weight.

2. Calibration error comes from setting up the scale wrong.

3. Drift error happens when readings change over time.

4. Environmental error is caused by temperature or humidity.

5. Tare error happens if the tare settings are not right.

6. Surface error happens when the scale is not flat.

Key Takeaways

• A weighing scale indicator changes force into weight numbers you can read. It links to load cells and shows the weight clearly.

• You need to check and fix the indicator often. This stops mistakes from too much weight, weather, or wrong settings.

• Digital indicators have more things than analog ones. They give exact numbers, save data, and can connect to other devices.

• Pick the best indicator for what you need. Analog scales do not need batteries and are easy to use. Digital scales have more features and are more exact.

• Taking care of the indicator is important. Clean it and look at the wires often. This keeps the indicator working well for a long time.

Weighing Scale Indicator Basics

What Is a Weighing Scale Indicator

A weighing scale indicator helps you see the weight. It connects to load cells or sensors. These sensors feel the force from an object. The indicator changes this force into a number. This number tells you the weight. Many industries use this device for clear readings. You can find it in factories, warehouses, and labs.

The indicator does more than show numbers. It helps you watch the weight of items. You can use it to control batching. It helps you keep track of measurements. This makes sure products meet quality standards. Some indicators let you save weight data. You can also send data to other devices.

Here is a table that lists the main jobs of a weighing scale indicator in business and industry:

You can see that a weighing scale indicator is needed for both correct readings and control.

Analog vs Digital Scale Indicator

You can pick analog or digital weighing indicators. Each type works differently and has its own good points.

Analog indicators use springs and dials to show weight. When you put something on the scale, the spring moves. The dial points to the weight. You do not need batteries for analog indicators. You can use them where power is hard to get. The Analog Weighing Indicator from Changzhou Weibo Weighing Equipment System Co., Ltd is a good example. This product gives steady and exact measurements. It supports many ways to connect, like PROFINET, PROFIBUS-DP, and MODBUS. You can use it in rough places because it is strong and safe.

Digital weighing indicators use sensors and load cells. These sensors turn force into an electric signal. The indicator changes this signal into a number on a screen. Digital indicators often have bright screens. You need batteries or power for digital indicators. These devices can save weight data. They can connect to computers. They help with counting and checkweighing.

Here is a table that compares analog and digital scale indicators:

Digital weighing indicators have more features and better accuracy. You can use them to make your work faster and better. Digital scale indicators show weight as numbers for easy reading. Many digital indicators let you move data, save measurements, and do special jobs like counting.

Digital scale indicators can have extra features, like counting or checkweighing, ways to send data, or saving and recalling weight numbers.

You should pick the indicator that fits your needs. If you want simple use and no batteries, choose analog. If you want more features and better accuracy, pick digital.

How Digital Weighing Indicator Works

Signal Processing from Load Cells

When you use a digital weighing indicator, the process starts with load cells. These sensors feel the force when you put something on the scale. The force is turned into a weak analog signal. The indicator makes this signal stronger so it can be measured. Next, an analog-to-digital converter changes the signal into digital form. The microprocessor inside the indicator works with the digital signal. It sets calibration and removes noise to make sure the weight is right. The indicator then shows the weight on the screen. It can also send the data to other devices for real-time checks.

Each step is important for getting the right weight. The digital weighing indicator uses new technology to help you get correct results every time. This process helps stop mistakes and keeps your weighing system working well.

Tip: Always check your load cells and cables. Good parts help your digital weighing indicator work its best.

Displaying Weight Data

After the digital weighing indicator finishes processing, it shows the weight on a display. There are different types of displays in weighing systems. Some have big, bright numbers you can see from far away. Some are portable and use wireless connections, so you can use them in many places. Bench scales often use digital displays with cables for quick results. Pallet jack displays let you weigh things while moving them.

Here are the main parts of a digital weighing scale indicator and what they do:

You use the user interface to control the digital weighing indicator. You can zero the scale, set the tare, or start a new measurement. The calibration mechanism helps keep your measurements right. You can connect the indicator to computers or other devices to save and share data.

Digital weighing indicators are very important in modern industry. You find them in factories, warehouses, and labs. They help you get fast and correct weight readings. Some digital scale indicators can measure very small amounts, even down to 0.01 grams. Others can handle big weights, like those on truck scales. Magnetic Force Restoration scales give the best accuracy for small weights. Strain gage scales are good for bigger weights and are used in many industries.

You can trust a digital weighing indicator to give you correct weight measurements. This helps you keep your products and work on track. You can use the data from your weighing system to make quality and efficiency better.

Indicator Features & Types

Key Features of Weighing Scale Indicators

You want your weighing scale indicator to show the right weight every time. Modern digital weighing indicators have many helpful features. You can connect them with Ethernet, Wi-Fi, USB, or RS232. These connections let you link your indicator to computers or printers. You can also connect it to factory systems. When you use these connections, you can send weight data to your ERP or MES software. This helps you keep track and store your data easily. Many digital weighing indicators work with IoT technology. This lets you record and save weight readings automatically. It helps you follow rules and keep your data safe.

If you work in dangerous places, look for certifications. Some weighing scale indicators are made to stop fires or explosions. These designs keep you safe by stopping sparks or heat. The Analog Weighing Indicator from Changzhou Weibo Weighing Equipment System Co., Ltd uses strong materials. It has a sealed case to keep out harmful substances. This protects the inside parts. The modular design makes fixing or upgrading easy.

Types: Analog and Digital Scale Indicators

You can pick analog or digital weighing indicators. Analog models use dials and springs. They work well when you do not have power. Digital weighing indicators use sensors and microprocessors. These give you fast and exact weight readings. Digital scale indicators show numbers on a screen. You can save, send, or print your readings. You can use them for counting, batching, or mixing. Many digital weighing indicators work with automated systems. You can connect them with USB, Ethernet, Wi-Fi, or RS-232.

Industrial Applications

Digital weighing indicators are used in many industries. They help you get the right weight for different jobs.

• Used with bench and floor scales

• Used for tank or hopper scales

• Used for overhead track scales

• Used for truck scales and transfer stations

• Used for ready mix and concrete jobs

• Used at landfills or recycling centers

• Used for canal barge weigh locks

• Used for tax, postage, and freight jobs

• Used for process control in factories

• Used in mining and chemical industries

1. In shipping and logistics, you measure items before and after shipping.

2. In waste management, you get paid by the weight of waste.

3. In paper making, you check paper thickness and weight.

4. In chemicals, you use safe scales in risky places.

5. In mining, you measure rocks and minerals.

Tip: Always check the place where you put your digital weighing indicator. Cold, wet, and windy weather can change your readings. Use weatherproof and stable systems for outdoor jobs.

Importance of Calibration & Maintenance

Importance of Calibration

You must keep your digital weighing indicator calibrated. This helps you get correct weight readings. Calibration makes sure your measurements stay right over time. When you calibrate, you fix small mistakes from wear or dust. Changes in temperature can also cause errors. Regular calibration stops problems with your readings. If you skip calibration, your indicator may show wrong numbers. This can lead to mistakes at work. It can also hurt your reliability. Many industries have rules for calibration. Some companies check their scales every day. Others do it once a year. Always follow the manufacturer's advice for best results.

Tip: Calibration helps you get precise weight readings. You can trust your numbers when you calibrate often.

Calibration Steps

Here are steps to calibrate your digital weighing indicator:

1. Put your scale on a flat, clean surface.

2. Make sure there is no dust or dirt.

3. Use standard calibration weights for best results.

4. Press the ‘MODE’ button until you see ‘CAL’ on the screen.

5. Place the calibration weight on the scale and wait.

6. Check if the display matches the calibration weight.

7. Adjust the scale if needed by following the manual.

8. Take off the weight and check again with another known weight.

Standard weights give you the best accuracy. If you do not have them, you can use coins or water. This will only give you a rough check, not perfect results.

Maintenance Tips

You can keep your digital weighing indicator working well with simple care. Clean the display and control panel often. Handle the indicator gently to avoid damage. Keep the scale away from heat or cold. Check cables and battery levels every month. Put your scale in a dry place to stop moisture errors. Here is a table that shows common problems and how to prevent them:

Check your scale every day for dirt or uneven surfaces. Do a deeper clean and calibration check each week. Inspect cables and batteries every month. Replace old parts and do a full calibration every few months. These steps help you get correct measurements. They also help your digital weighing indicator last for years.

You use weighing scale indicators to find the right weight. These devices help you get very accurate results. Digital models are even better for accuracy. When you pick an indicator, think about where you will use it. You should also think about what kind of scale you have. Look at the features you want.

• Pick displays that are easy to read.

• Make sure the indicator can handle your weight needs.

• See if it can connect to other devices or work automatically.

Keep your indicator checked and set right for the best results.

FAQ

What is the main job of a weighing scale indicator?

You use a weighing scale indicator to show the weight from load cells. It changes the force into numbers you can read. This helps you get accurate weight measurements for your work.

How often should you calibrate your weighing scale indicator?

You should calibrate your indicator at least once a year. If you use it every day or in tough conditions, check it more often. Regular calibration keeps your readings correct.

Can you connect a weighing scale indicator to a computer?

Yes, you can connect many indicators to a computer. You use USB, Ethernet, or Wi-Fi. This lets you save, share, or print your weight data easily.

What should you do if your indicator shows wrong numbers?

First, check if the scale sits on a flat surface. Clean the indicator and load cells. Make sure you use the right tare setting. If problems stay, calibrate the indicator or ask for help.
