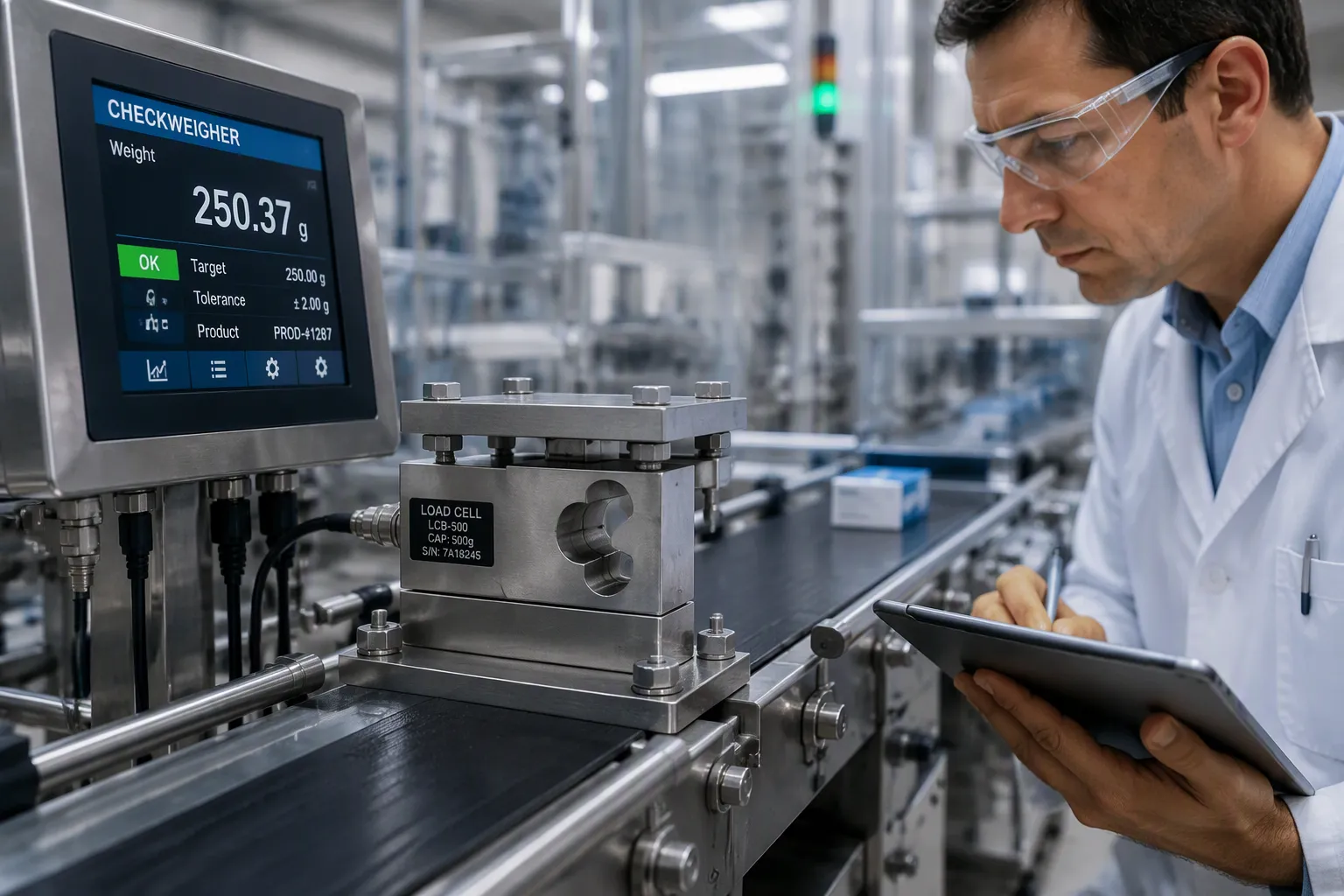

A checkweigher load cell is the main sensor inside every checkweigher. This small part measures the weight of each item moving through the system. Its job is easy to describe but amazing in practice: it turns physical force into an electrical signal.
That signal carries the weight data a controller needs to accept or reject products. The load cell works like a spring that stretches under load. Instead of watching the stretch, it measures a change in electrical resistance.
How does this change happen with such precision? The answer is in the design of the sensor itself. This article explains the science behind the measurement.
A checkweigher load cell changes physical force into an electrical signal to measure weight.
Inside the load cell, strain gauges change their resistance when a product puts force on them.
Strain gauge load cells are often used for fast checkweighing; EMFC cells give better precision.
Good load cells help keep products at the right weight and cut down on waste.
Top-quality load cells with IP68 sealing last a long time and lower upkeep costs.
A checkweigher load cell is a transducer. It turns force into an electrical signal to measure weight. This definition sounds simple, but the device is a precision instrument. It acts as the main sensor inside a checkweigher. Every item passing through the checkweigher system touches this part, directly or indirectly. The sensor finds the weight of each product and sends that data to the controller.
Think of a spring. A spring stretches when someone hangs a weight from it. The amount of stretch shows how heavy the object is. A checkweigher load cell works in a similar way. But it does not measure stretch with human eyes. Instead, it measures a change in electrical resistance. This change matches the applied weight directly.
Without this sensor, a checkweigher cannot work. The device turns physical weight into usable data. That data lets the checkweigher accept or reject products. It also records weight measurements for quality control. In short, the load cell is the part that makes automated weight verification possible.
The conversion process follows a clear chain of events. A metal body, often called a flexure, forms the structural core. Foil strain gauges bond to this metal body. These gauges are electrical conductors arranged in a zigzag pattern on a thin film.
When a product applies force to the load cell, the metal body bends slightly. This deformation transfers stress to the strain gauges. The film stretches or compresses. The conductors get longer or shorter. Their resistance changes as a result. Resistance goes up with applied strain and goes down with contraction.
A load cell itself is truly an electrical mechanical device and that we're taking a mechanical beam. And because we've designed the beam to deflect a specific amount under a specific load, we need to find a way to translate that deflection into a usable electrical signal.
The resistance change is very small. To make it usable, the strain gauges connect to a Wheatstone bridge circuit. This circuit has four resistive arms and an excitation voltage. When the bridge is balanced, the output voltage is zero. Any small resistance change in one arm makes a non-zero output voltage. The bridge turns the resistance change into a measurable electrical signal.
The output voltage is usually in millivolts. A device amplifier then boosts this signal. The amplified signal goes to a weighing indicator or controller. That controller reads the signal as a weight value. This whole process happens in milliseconds, letting the checkweigher keep up with fast production lines.
Image Source: pexels
Every checkweigher load cell begins with two main parts. The first is a metal body, often called a flexure. Manufacturers make this frame from aluminum or a steel alloy. Stainless steel versions work well for high-speed dynamic weighing. They offer high natural frequency and rigidity. That rigidity gives fast response and stable measurements. Fatigue resistance also matters here. A dynamic cell may last at least 1,000,000 cycles.
The second part is a set of strain gauges. Each gauge has a thin conductive wire set in a grid. This grid bonds to a flexible backing foil. Workers then attach the foil right onto the metal body. The placement must be exact. The gauge has to bend at the same time the body bends.
A strain gauge changes resistance when it stretches or compresses. The change matches the strain. Engineers show this link with the gauge factor, written as GF = (change in resistance / initial resistance) / strain. Within the elastic limit, the relationship stays linear. This principle makes the weight transducer dependable across thousands of cycles.
The measurement chain follows a clear cause-and-effect path. A product pushes on the metal flexure during normal checkweigher operation. The flexure bends a tiny amount. The strain gauges bonded to it bend too. Their wire grids stretch or compress, and their electrical resistance shifts.
Think of a rubber band. Stretch it, and it gets longer and thinner. The strain gauge acts the same way at a tiny scale. Its grid lengthens or shortens, and resistance follows.
A Wheatstone bridge circuit picks up this small resistance change. The bridge gives a zero output voltage at rest. Under load, it sends out a small signal, about 2 mV/V at full capacity. The raw output usually falls between 10 and 40 mV at full load. That signal is too weak for long cable runs. So an amplifier boosts it to a stronger analog level, like 0-10 VDC or 4-20 mA.
An analog-to-digital converter then turns the amplified signal into digital values. The processor uses calibration data stored in memory. Calibration matters because load cells drift over time from temperature, humidity, and vibration. Technicians use known weights for two-point or multipoint calibration. The processor changes the raw digital value into a weight reading. That reading shows on a display or goes to the checkweigher's control unit, a PLC, or a computer.
This whole sequence explains how a checkweigher works so fast. The cell senses force, the bridge converts it, and the electronics report a finished weight. Each stage depends on the one before it. One weak link, like a loose gauge or a noisy cable, hurts the final measurement. That is why checkweighers need precision components at every step.
Two main load cell technology types serve checkweighing systems today. Each one fits different accuracy and speed needs.
Strain gauge technology is the industry standard for most checkweighers. These cells cost less and handle the demands of a dynamic, in-motion checkweigher. Damped strain-gauge load cell designs suit checkweighers, multiheaded weighers, rotary filling machines, and industrial process control. They allow high-speed checkweighing for quality control lines that check moving products such as pharmaceuticals and food packages. Settling times run up to 50% faster than undamped cells, which raises weighing speeds and throughput. A stable reading appears right after load application, so an automatic checkweigher keeps pace without losing accuracy.
Webowt offers analog and digital load cells built for these demands. Stainless steel construction and IP68 sealing protect the cell in washdown and dusty plants. CAN BUS technology delivers stable data transmission. Digital models support 3,000e weightless calibration at C6 class with 24-bit resolution and up to 1200Hz sampling for dynamic weighing. These products also work with PROFIBUS-DP, PROFINET, EtherNet/IP, CC-LINK, EtherCAT, MODBUS-RTU, and MODBUS-TCP.
Electromagnetic force compensation (EMFC) cells take a different path. They use a coil and magnet system that balances the load with an opposing force. This design offers higher precision than strain gauge models. Manufacturers use EMFC cells for very low capacity work or high-accuracy requirements. The trade-off is cost. An EMFC cell costs more than a standard strain gauge unit, so buyers reserve it for specialized tasks.
Most check weighers on packaging and production lines rely on strain gauge cells instead. The choice depends on the weight range, speed, and tolerance the application demands. Strain gauge cells cover the majority of in-motion scales, conveyor scales, and in-motion conveyor checkweigher duties. EMFC cells serve laboratories and low-capacity filling operations where every milligram counts. Both types turn weight into an electrical signal. The difference lies in how precisely and at what cost they do it.
Accurate load cells keep every product inside its allowed weight range. Even a tiny drift in the sensor pushes the measured weight away from the real value. Then the checkweigher may accept underfilled packs or reject good ones. Both mistakes cost money and create compliance risk.
Precision also protects brand trust. A coffee maker filling 500g packs once aimed for 510g to avoid underfill complaints. After adding closed-loop gravimetric filling with high-accuracy load cells, fill standard deviation fell from 4.2g to 0.8g. The target dropped to 503g, saving 7g per pack. At 200 packs per minute over two shifts, that saved over 2,400kg of coffee each day.
The washdown checkweigher features the latest dynamic load cell sensors for weighing food products in motion with up to ± 0.25 gram accuracy.
That level of precision supports exact weight measurements across every unit. Steady product weight also points to steady ingredient dosing, which links to steady taste and formulation.
Load cell precision directly shapes how fast and how well a checkweigher rejects out-of-spec items. The cell turns product weight into a millivolt signal. Over time, repeated micro-deformation causes creep, and the baseline shifts. Readings drift away from calibrated values. The checkweigher then loses accuracy and makes more false accepts and false rejects.
Webowt load cells fight these problems in harsh plants. Their IP68-rated welded sealing blocks dust, water, and corrosion. Plug-and-play digital corner adjustment makes calibration simple, and fault isolation stops one node failure from taking down the whole network.
For any checkweigher, the payoff is clear. High-quality load cells cut downtime and maintenance costs while giving reliable weight measurements shift after shift. That reliability keeps every checkweigher line running at full speed.
A checkweigher load cell is a precise transducer. It changes physical weight into an electrical signal that a controller can read. The basic idea is simple: force causes strain, strain changes electrical resistance, and the system measures that change.
Choosing between strain gauge and EMFC designs depends on the job. Strain gauge cells settle in 1–2 seconds and work well in fast places like production packaging. EMFC cells give better repeatability for research tasks that need milligram accuracy, but they need a draft shield and slower routines.
Brands like Webowt make high-precision load cells with IP68 sealing and CAN BUS technology for tough plants. In every checkweigher, this sensor is the key part that ensures reliable, accurate weighing.
A checkweigher load cell works as the main sensor. It finds the weight of each item moving through the system. The device turns physical force into an electrical signal. That signal sends weight data to the controller. Without this part, a checkweigher cannot check product weight or reject items that are out of spec.
A metal body bends when a product pushes on it. Strain gauges attached to that body stretch or squeeze. Their electrical resistance changes because of this. A Wheatstone bridge circuit turns this resistance change into a small voltage. An amplifier makes the signal stronger, and a controller reads it as a weight value.
Strain gauge load cells work for most dynamic checkweighing jobs. They cost less and handle in-motion weighing well. Damped designs settle fast, which boosts throughput on quick production lines. Electromagnetic force compensation cells give higher precision for low-capacity work. But they cost more and fit slower, high-accuracy tasks.
Accurate load cells keep every product inside its allowed weight range. Drift leads to false accepts or false rejects, which wastes money and creates compliance risk. Precise sensors also help checkweighers reject out-of-spec items fast. High-quality cells with IP68 sealing cut downtime and maintenance costs over time.
