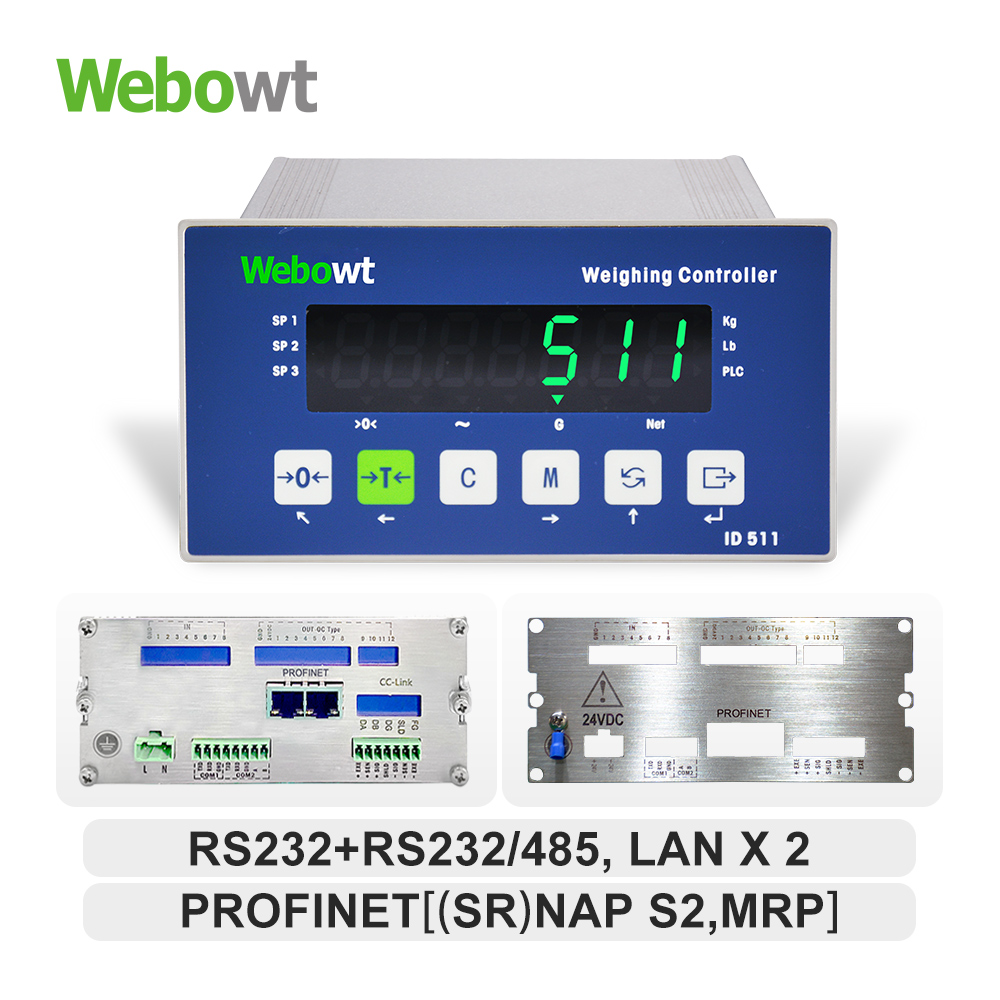

  • WEBOWT ID511 Panel RS232 RS485 LAN 2 PROFINET MRP 20230817
    WEBOWT ID511 Panel LAN×2 PROFINET
  • WEBOWT ID511 Panel CCLINK PROFIBUS 20230817
    WEBOWT ID511 Panel CCLINK
  • WEBOWT ID511 Panel CCLINK ETHERNET IP 20230817
    WEBOWT ID511 Panel ETHERNET/IP
  • 85110EH-ID511 5 PROFINET SS
    WEBOWT ID511 HARSH
  • 851101P-ID511 3 PROFINET CCLINK
    WEBOWT ID511 HARSH PROFINET
  • 8511010-ID511 4 RED LED
    WEBOWT ID511 DIN
WEBOWT PLC ICON20230809
Brief Introduction
ID511 is a PROCESS Weighing Controller with high precision, high reliability and rich communication interfaces. It can meet the complex and harsh industrial weighing control requirements, and is suitable for multiple control occasions such as weighing and metering display, packaging, filling and batching in chemical dangerous occasions.

  1. 7-digit led segment code display
  2. It supports one analog scale access, and supports up to 12 load cells
  3. CPA 6000e certified accuracy, up to 150000 display divisions
  4. Have passed OIML and CE certification
  5. Standard configuration: 2 serial ports RS232+RS232/485 or 2 serial ports RS232+RS485 with an Ethernet port
  6. The standard configuration supports MODBUS-RTU and MODBUS-TCP(only the network port version is supported)
  7. PLC options
  8. PROFIBUS-DP (Siemens PLC)
  9. PROFINET(dual network port，built in switch，Siemens PLC)
  10. EtherNet/IP(dual network port，built in switch，Rockwell PLC，Delta PLC)
  11. CC-link(Mitsubishi PLC)
  12. 1 x 4-20mA(16 bit precision DAC) · 2 x 4-20mA(16 bit precision DAC)
  13. I/O option
  14. In x 8/ OC out x12 ·In x 8/ Relay out x12
  15.  Multiple calibration modes
  16. Up to 5-point weight calibration is supported ·Weight free calibration
  17. Remote calibration through PLC
  18. Support application
  19. Basic weighing version
  20. Support two speed preset point control and 8 simple comparison outputs
  21. Lower / upper limit level detection
  22. The working power supply supports 85-264VAC or 24VDC, and the maximum power consumption of the whole machine is less than 6W;
Drawing
ID511 DRAWING
Configuration
ID511 CONFIGURATION
Configuration Category

  • ID511 Panel (Click down arrow ∨ to see corresponding configurations)

  • ID511 Harsh (Click down arrow ∨ to see corresponding configurations)

  • ID511 DIN Rail (Click down arrow ∨ to see corresponding configurations)

Replacement Parts
Download

Manual

  • ID511_Tech_Manual_R2.0_20220825.pdf

Technical Specification

  • ID511_Tech_Manual_R2.0_20220825.pdf

Certificates

  • OIML-Certificate-R76_2006-A-DK2-2022.07-ID510 ID511 ID551PN.pdf
