Explosion-Proof Scales : The Ideal Solution in Weighing for Hazardous Environments​

Many types of industry—from oil and gas refineries to chemical plants, pharmaceutical manufacturers, and even grain storage warehouses—expose workers to a hidden but potentially deadly threat: flammable gases, vapors, dust, or fibers. In such hazardous environments, even a small spark from ordinary electronic equipment can ignite combustible materials, leading to fires, explosions, and catastrophic damage to both personnel and equipment. This is where explosion-proof scales become essential safety tools. Unlike standard weighing instruments, scales designed for hazardous areas are engineered to prevent sparks, control temperatures, and isolate internal ignition sources—making them the only safe option for weighing operations in potentially explosive atmospheres.

Why Regular Scales Are Unsafe in Hazardous Areas

To understand the importance of explosion-proof scales, it’s helpful to first consider the risks posed by conventional scales in combustible environments. Typical electronic scales operate using electrical components such as circuit boards, motors, and wiring. During operation, these elements present two primary hazards: sparks and excessive heat.

For example, the load cell in an ordinary scale—the component that measures weight—functions by detecting minute changes in electrical current. Over time, wear and tear on wires or loose connections can generate small sparks. If flammable substances such as gasoline vapors, propane gas, or ethanol mist are present—as in a fuel storage depot, for instance—these sparks can trigger an explosion. Similarly, if a scale’s motor or power supply overheats (a common issue in poorly ventilated areas), it can reach temperatures high enough to ignite certain types of combustible dust, like grain dust in silos or plastic powder in manufacturing facilities.

Moreover, standard scales offer no protection against external hazards. In chemical plants, for instance, scales may be exposed to corrosive liquids or gases that degrade internal components, eventually causing electrical failures. Without specialized sealing or protective housing, these failures can quickly escalate into safety disasters.

How Explosion-Proof Scales Work: Key Safety Features

Explosion-proof scales are not simply “more durable” than standard scales. They incorporate specific engineering solutions to ensure safe operation in high-risk settings. Here are their most critical safety features:

Intrinsically Safe Design

Most explosion-proof scales are intrinsically safe (IS), meaning their electrical circuits operate at low power and voltage levels. Even in the event of a short circuit, any energy released is too low to ignite the surrounding atmosphere. For example, an IS scale may run on just 3.6 volts—less than a standard AA battery—compared to the 120 volts used in ordinary scales. This makes them ideal for areas with high concentrations of flammable gases, such as paint mixing facilities or offshore oil platforms.

Explosion-Proof Enclosures

For the most hazardous locations—where explosive dust or high-pressure gases are present—scales are equipped with explosion-proof enclosures. These housings are typically constructed from marine-grade cast aluminum or industrial stainless steel and are designed to contain any internal explosion. Should a spark occur inside the scale, the enclosure will prevent flames and pressure from escaping, thereby avoiding ignition of the external environment. Special gaskets and seals also prevent flammable substances from entering the scale’s internal components.

Temperature Control

Since overheating is a common cause of ignition, explosion-proof scales include features to manage temperatures. Many models incorporate heat sinks—metal components that absorb and dissipate heat—or fans that circulate cool air around critical parts. Some scales are also fitted with temperature sensors that automatically shut down the device if it exceeds safe operating temperatures, preventing overheating before it becomes a hazard.

Corrosion and Impact Resistance

Hazardous areas are often harsh environments. Chemical plants deal with corrosive liquids, oil refineries have greasy residues, and construction sites are subject to impacts from falling debris. Explosion-proof scales are built with corrosion-resistant materials (such as 316 stainless steel) and are designed to withstand physical impacts. This not only enhances durability but also prevents damage that could lead to electrical faults.

Types of Explosion-Proof Scales and Their Applications

Hazardous environments vary widely, and so do explosion-proof scales. Below are some common types and their typical applications:

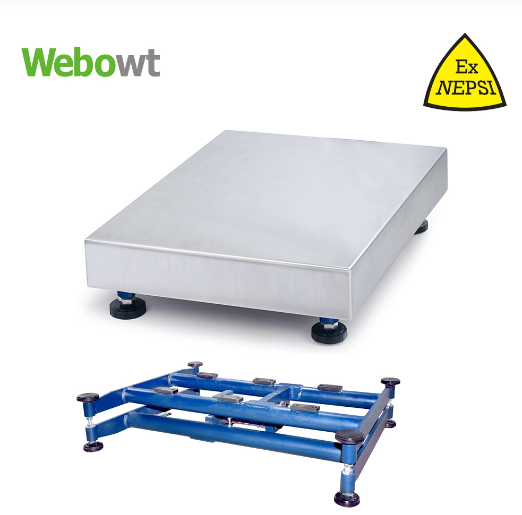

Bench Scales

These compact, portable scales are used on workbenches for weighing items ranging from a few grams to 500 pounds. They are widely used in pharmaceutical manufacturing (where flammable solvents are handled) and chemical laboratories (for weighing combustible powders). Many bench scales are battery-powered for easy mobility and feature large, clear digital displays—important for workers wearing safety goggles or gloves.

Floor Scales

Large, stationary scales placed on the floor, floor scales can handle loads from 500 pounds up to several tons. They are commonly used in oil and gas facilities for weighing drums of fuel or lubricants, and in warehouses storing combustible materials like paper or cardboard. Many are equipped with ramps for forklift loading and have non-slip surfaces for added safety.

Crane Scales

Suspended from overhead cranes, these scales are used to weigh heavy objects that cannot be moved to a bench or floor scale—such as steel beams on construction sites with explosive dust or large tanks in chemical plants. They are built to resist vibration and movement during crane operations and feature heavy-duty explosion-proof enclosures to withstand impact from swinging loads.

Drum Scales

Designed specifically for weighing drums or barrels containing flammable or hazardous liquids—such as gasoline, ethanol, or industrial solvents—drum scales have a circular platform that accommodates standard-sized containers. Some include rollers to facilitate loading and unloading. Certain models also come with fill-level indicators to prevent overfilling, reducing the risk of spills and fires.

How to Choose the Right Explosion-Proof Scale

Selecting the wrong scale can endanger lives and result in significant fines. When choosing a model, consider the following three factors:

Hazardous Area Classification

First, understand the classification of your hazardous area. Most countries—including the U.S., EU nations, and China—use a system that categorizes areas based on the type and concentration of combustible materials:

Class I: Areas where flammable gases or vapors are present (e.g., oil refineries, gas stations).

Class II: Areas with combustible dust (e.g., grain silos, plastic manufacturing plants).

Class III: Areas containing ignitable fibers or flyings (e.g., textile mills, woodworking shops).

Each class is further divided into “Divisions” (in the U.S.) or “Zones” (in the EU), which indicate how frequently the hazardous substance is present. For example, a Class I, Division 1 area has flammable gases present continuously, while a Division 2 area has them only under abnormal conditions. Your scale must be certified for the specific class and division/zone of your workplace.

Weighing Capacity and Accuracy

Consider what you will be weighing. For small quantities of chemicals, a bench scale with a capacity of 100 pounds and an accuracy of 0.1 gram may be sufficient. For weighing fuel tanks weighing several tons, a floor scale with a 10-ton capacity and 1-pound accuracy would be required. Using an undersized scale can damage the equipment, while an oversized one may yield inaccurate readings—both of which pose safety risks.

Certifications

Always choose a scale certified by a recognized authority. In the U.S., look for UL (Underwriters Laboratories) or FM Global certification. In the EU, ATEX certification is required. These certifications ensure that the scale has been tested to the highest safety standards and can be trusted to perform safely in hazardous environments.

Installation and Maintenance: Keeping Explosion-Proof Scales Safe

Even the best explosion-proof scale won’t perform safely if improperly installed or maintained. Follow these guidelines:

Installation

Have the scale installed by a technician trained in hazardous area operations. They will ensure that wiring is spark-proof and that the scale is placed away from sources of flammable materials, such as vents or chemical tanks.

Compatibility

Ensure that the power supply and any peripheral devices (such as printers or computers) connected to the scale are also explosion-proof. Using a non-certified device with an explosion-proof scale can create an hidden ignition source.

Maintenance

Perform monthly inspections of the scale’s enclosure, wiring, and seals. Look for damage such as cracks, frayed wires, or corrosion. If any issues are found, take the scale out of service immediately and arrange for repairs.

Cleaning

Use only non-abrasive, non-flammable cleaners (like mild soap and water). Avoid solvents or high-pressure water jets, which can damage seals and internal components.

Calibration

Calibrate the scale regularly—at least once a year, or more frequently if it is heavily used. Ensure the scale is level before calibrating. Accurate calibration is critical for applications such as measuring chemical dosages or managing fuel inventory.

Invest in Safety with Explosion-Proof Scales

In hazardous locations, safety isn’t optional—it’s essential. Explosion-proof scales are more than just weighing devices; they are vital tools that help protect workers, prevent disasters, and ensure compliance with safety regulations. By understanding how these scales work, selecting the right model for your needs, and maintaining them properly, you can significantly enhance workplace safety.

Whether you operate an oil refinery, a chemical plant, or a pharmaceutical lab, investing in a high-quality explosion-proof scale is an investment in peace of mind. It’s a small price to pay to avoid the devastating losses caused by fire or explosion—and to ensure your team can work safely, every day.
