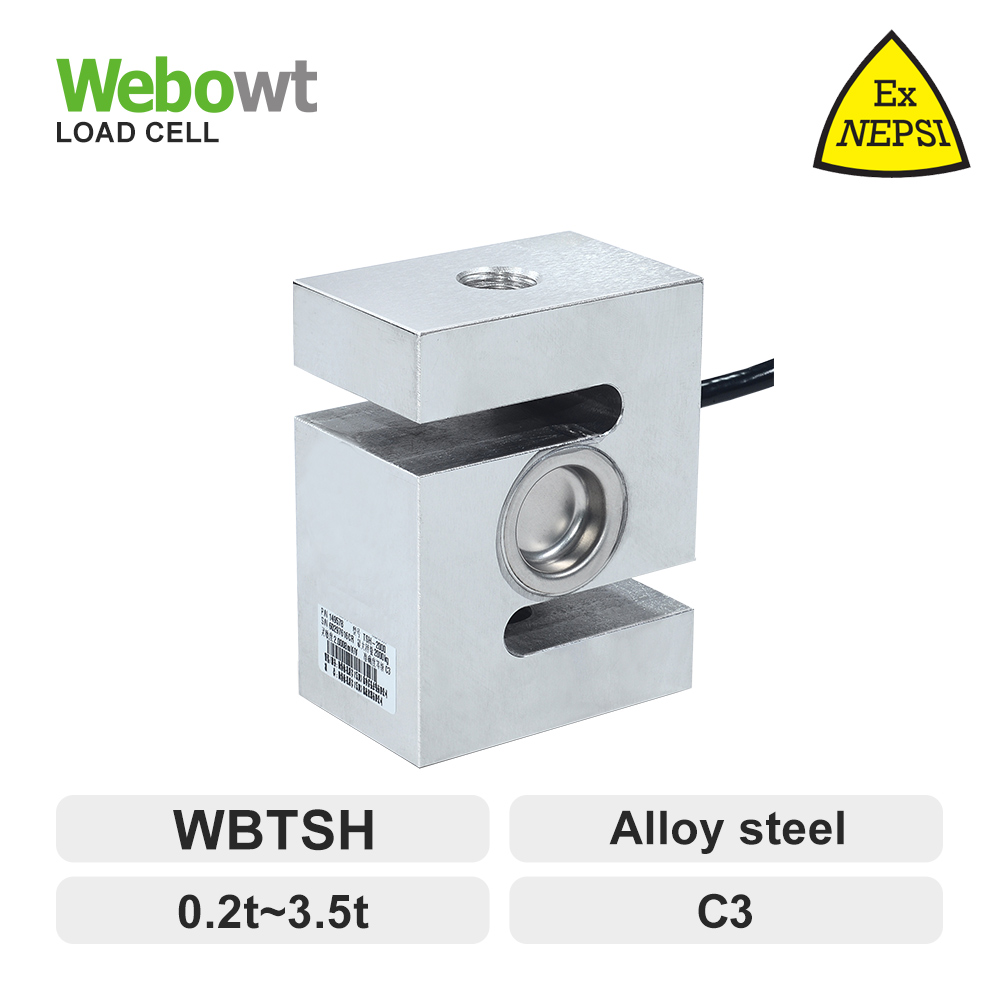

WBTSH , Load Cell 0.2t ~ 5t
WEBOWT
WBTSH
Product Features
6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Compact structure and high comprehensive precision
Stainless steel, Laser welded seal
IP Class IP67
Applicable to the weighing control of hook scale, hopper scale and batching scale
Product Selection Configuration
Naming rule:load cell LWA(a)-b-C-d-e-f-g-h-i
| Product Type a | Model b | Elastomer Class C | Capacity (kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i |
| LW-Load cel A-Analog Load cell | WBTSC WBTSB WBTSH | (Blank): Stainless steel | 50,100,200,300,500 1000,2000,3000,5000 | N:Standard X:Explosion-proof | S:Normal temperature | C3 | 5m | A:Standard,output sensitivity 2.0 mVV F:Customization |
| Specifications | |||||
| Model | WBTSC | WBTSB | WBTSH | ||
| Rated capacity | 501,002,003,005,001,000 | 2000,3000,5000 | 0.2,0.3,0.5,1,2,3,5t | ||
| Sensitivity | mV/V | 2±0.002 | |||
| Accuracy class | C3 | ||||
| Repeatability error | %R.C. | ≤0.01 | |||
| Lag | %R.C. | ≤0.02 | |||
| Non-inearity | %R.C | ≤0.018 | |||
| Creep (30 minutes) | %R.C. | ≤0.0167 | |||
| Zero output | %R.C. | ≤1 | |||
| Temperature compensation range | ℃ | -10~+40 | |||
| Opecassification temperature range | ℃ | -40~+65 | |||
| Temperature coefficient of sensitivity | %R.C./℃ | ≤0.0009 | |||
| Zero temperature coefficient | %R.C./℃ | ≤0.002 | |||
| Input impedance | Ω | 385±10 | |||
| Output impedance | Ω | 350±1 | |||
| Insulation resistance | MΩ | ≥5000(100V DC) | |||
| Recommended excitation voltage | V(DCIAC) | 5~15 | |||
| Maximum excitation voltage | V(DC/AC) | 20 | |||
| Safety overload | %R.C. | 150 | |||
| Extreme overload | %R.C. | 300 | |||
| IP Rating | IP65 | IP67 | |||
| Cable length | m | 5 | |||

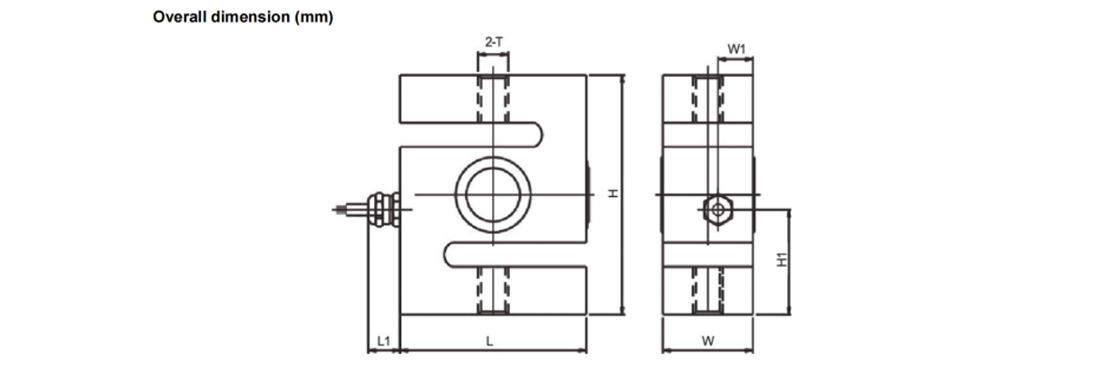

| Rated capacity (kg) | Size(mm) | ||||||
| L | H | W | T | W1 | H1 | LI | |
| 200-300 | 62 | 80 | 30 | M10x1 | 10 | 47.5 | 17 |
| 500 | 62 | 80 | 30 | M12x1 | 10 | 47.5 | 17 |
| 1000 | 70 | 90 | 30 | M12x1 | 10 | 52.5 | 17 |
| 2000 | 71 | 90 | 45 | M16x1.5 | 17.5 | 50 | 17 |
| 3000 | 80 | 100 | 50 | M16x1.5 | 19.5 | 58.5 | 17 |
| 5000 | 92 | 100 | 58 | M20x2 | 23.5 | 72.5 | 17 |
| Cable color | Color code(six-core wire) |
| Green | +Excitation(+EXC) |
| Black | -Excitation(-EXC) |
| Yellow | +Feedback(+SEN) |
| Blue | -Feedback(-SEN) |
| White | +Signal(+SIG) |
| Red | -Signal(-SIG) |
| Yellow(Long) | Shielded wire(SHLD) |
Product Features
6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Compact structure and high comprehensive precision
Stainless steel, Laser welded seal
IP Class IP67
Applicable to the weighing control of hook scale, hopper scale and batching scale
Product Selection Configuration
Naming rule:load cell LWA(a)-b-C-d-e-f-g-h-i
| Product Type a | Model b | Elastomer Class C | Capacity (kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i |
| LW-Load cel A-Analog Load cell | WBTSC WBTSB WBTSH | (Blank): Stainless steel | 50,100,200,300,500 1000,2000,3000,5000 | N:Standard X:Explosion-proof | S:Normal temperature | C3 | 5m | A:Standard,output sensitivity 2.0 mVV F:Customization |
| Specifications | |||||
| Model | WBTSC | WBTSB | WBTSH | ||
| Rated capacity | 501,002,003,005,001,000 | 2000,3000,5000 | 0.2,0.3,0.5,1,2,3,5t | ||
| Sensitivity | mV/V | 2±0.002 | |||
| Accuracy class | C3 | ||||
| Repeatability error | %R.C. | ≤0.01 | |||
| Lag | %R.C. | ≤0.02 | |||
| Non-inearity | %R.C | ≤0.018 | |||
| Creep (30 minutes) | %R.C. | ≤0.0167 | |||
| Zero output | %R.C. | ≤1 | |||
| Temperature compensation range | ℃ | -10~+40 | |||
| Opecassification temperature range | ℃ | -40~+65 | |||
| Temperature coefficient of sensitivity | %R.C./℃ | ≤0.0009 | |||
| Zero temperature coefficient | %R.C./℃ | ≤0.002 | |||
| Input impedance | Ω | 385±10 | |||
| Output impedance | Ω | 350±1 | |||
| Insulation resistance | MΩ | ≥5000(100V DC) | |||
| Recommended excitation voltage | V(DCIAC) | 5~15 | |||
| Maximum excitation voltage | V(DC/AC) | 20 | |||
| Safety overload | %R.C. | 150 | |||
| Extreme overload | %R.C. | 300 | |||
| IP Rating | IP65 | IP67 | |||
| Cable length | m | 5 | |||
| Rated capacity (kg) | Size(mm) | ||||||
| L | H | W | T | W1 | H1 | LI | |
| 200-300 | 62 | 80 | 30 | M10x1 | 10 | 47.5 | 17 |
| 500 | 62 | 80 | 30 | M12x1 | 10 | 47.5 | 17 |
| 1000 | 70 | 90 | 30 | M12x1 | 10 | 52.5 | 17 |
| 2000 | 71 | 90 | 45 | M16x1.5 | 17.5 | 50 | 17 |
| 3000 | 80 | 100 | 50 | M16x1.5 | 19.5 | 58.5 | 17 |
| 5000 | 92 | 100 | 58 | M20x2 | 23.5 | 72.5 | 17 |
| Cable color | Color code(six-core wire) |
| Green | +Excitation(+EXC) |
| Black | -Excitation(-EXC) |
| Yellow | +Feedback(+SEN) |
| Blue | -Feedback(-SEN) |
| White | +Signal(+SIG) |
| Red | -Signal(-SIG) |
| Yellow(Long) | Shielded wire(SHLD) |
