| Elastomer category: | |
|---|---|
| Capacity (t): | |
| Load Cell Accuracy: | |
| Backup: | |
| Material: | |
| Certification/Area: | |
| Load Cell Cable Length: | |
| Quantity: | |
WBPGD/WBGD Weighing Module 5t~100t
WEBOWT
84239000
WBPGD/WBGD
Product Features
Adopting WBPGD/WBGD series CAN interface high-speed and high
Precision digital Load cells, supporting C3 and C6 accuracy
The digital Load cell is stainless steel laser welded sealed, IP68/IP69K
Anti overturning protection and overload protection
360 ° circumferential horizontal limit protection
Optional horizontal pull rod can stabilize the shaking of the equipment
Suitable for both dynamic and static weighing applications
Two types of module structural components: stainless steel and alloy steel
Suitable for batching weighing in industries such as chemical, pharmaceutical, food, and lithium batteries
Product Selection Configuration
Naming rules:weighing moduleMWA (a)-b-c-d-e-f-g-h-i/j
| Product Type a | Model b | Elastomer Class C | Capacity (kg) d | Certification/Area. e | Temperature f | Load Cell Accuracy g | Load Cell Cable Lengthh | Backup i | Module Material |
| MW-Weighing module A-Analog Load cell | WBPGD | (blank):Stainless steel 17-4PH/CR:Stainless steel 2Cr13Material | 5.7,5.10,15,20. 22.5,25,30,40.50,100t | N:Standard. X: Explosion-proof | S:Normal temperature | C3/C4 | 12.13m | A:Standard,output sensitivity 2.0mVN F:Customization | C:Alloy steel material S:Stainless steel |
*Cable length of explosion-proof load cell is no longer than 16 meters

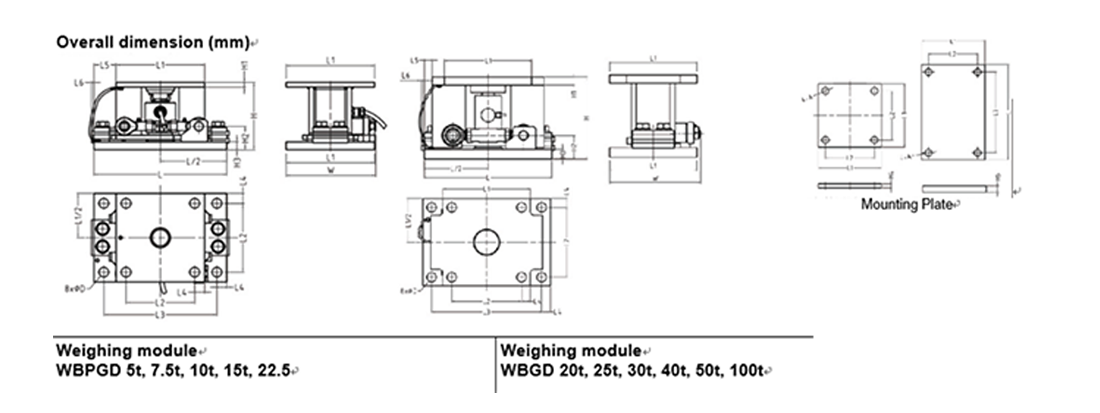

| Serial number | Capacity | Size/mm | ||||||||||||||
| D | H | H | H2 | H3 | H4 | H5 | L | L1 | L2 | LB | L4 | L5 | W | A | ||
| 1 | WBPGD 5-25t | 22 | 152 | 11 | 53 | 18 | 15 | 20 | 300 | 200 | 155 | 255 | 22.5 | 50 | 202 | M20 |
| 2 | WBGD 20-50t | 26 | 235 | 23 | 68 | 28 | 33 | 33 | 365 | 250 | 200 | 315 | 25 | 22.5 | 262 | M24 |
| 3 | WBGD 100t | 32 | 263 | 30 | 91 | 33 | 38 | 38 | 440 | 300 | 235 | 375 | 32.5 | 30 | 312 | M30 |
