WBPGD
WEBOWT
WBPGD/WBGD
Product Features
Adopting WBPGD/WBGD series CAN interface high-speed and high
precision digital Load cells, supporting C3 and C6 accuracy
The digital Load cell is stainless steel laser welded sealed, IP68/IP69
Anti overturning protection and overload protection
360 ° circumferential horizontal limit protection
Optional horizontal pull rod can stabilize the shaking of the equipment
Suitable for both dynamic and static weighing applications
Two types of module structural components: stainless steel and alloy steel
Suitable for batching weighing in industries such as chemical, pharmaceutical, food, and lithium batteries
Product Selection Configuration
Naming rule:Weighing Module MWD (a)-b-c-d-e-f--h-i/j
| Product type a | Model b | Elastomer C | Capacity (kg) d | Certification /Area e | Temperature f | Accuracy g | Cable Length h | Backup i | Module Material j |
| MW-Weighing Module D-Digital oad cell | WBPGD | SS 17-4PH CR:SS 2Cr13 | 5,7.5,10, 15,22.5,25 | N:Standard | S:Normal | C3,C6 | 12m | A:Standard F:Customization | C:Alloy Steel S:Stainless steel |
| WBGD | CR:SS 2Cr13 | 15,20,25,30,40,50,100 | 13m |

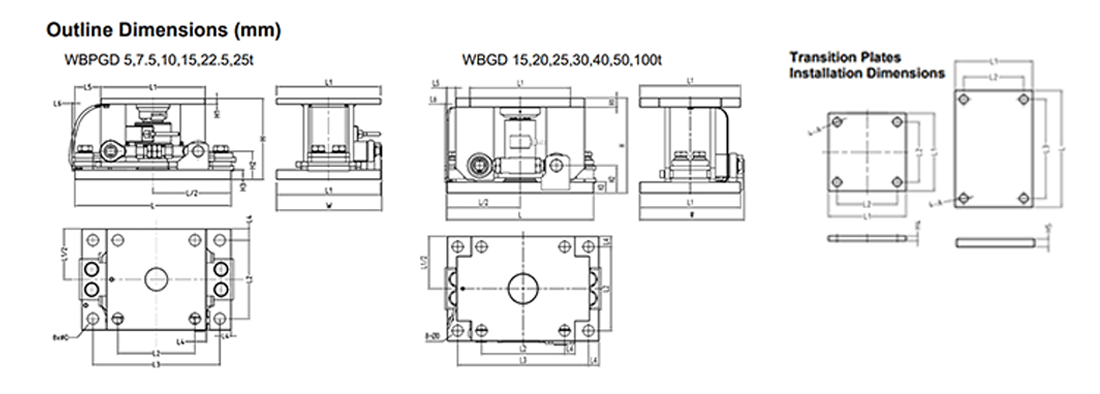

| No. | Cap(t) | Size(mm) | |||||||||||||||
| D | H | H1 | H2 | H3 | H4 | H5 | L | L1 | L2 | L3 | L4 | L5 | L6 | W | A | ||
| 1 | WBPGD 5-25t | 22 | 152 | 11 | 53 | 18 | 15 | 20 | 300 | 200 | 155 | 255 | 22.5 | 50 | 5 | 202 | M20 |
| 2 | WBGD 20-50t | 26 | 235 | 23 | 68 | 28 | 33 | 33 | 365 | 250 | 200 | 315 | 25 | 25 | 5 | 262 | M24 |
| 3 | WBGD 100t | 32 | 263 | 30 | 91 | 33 | 38 | 38 | 440 | 300 | 235 | 375 | 33 | 30 | 5 | 312 | M30 |
