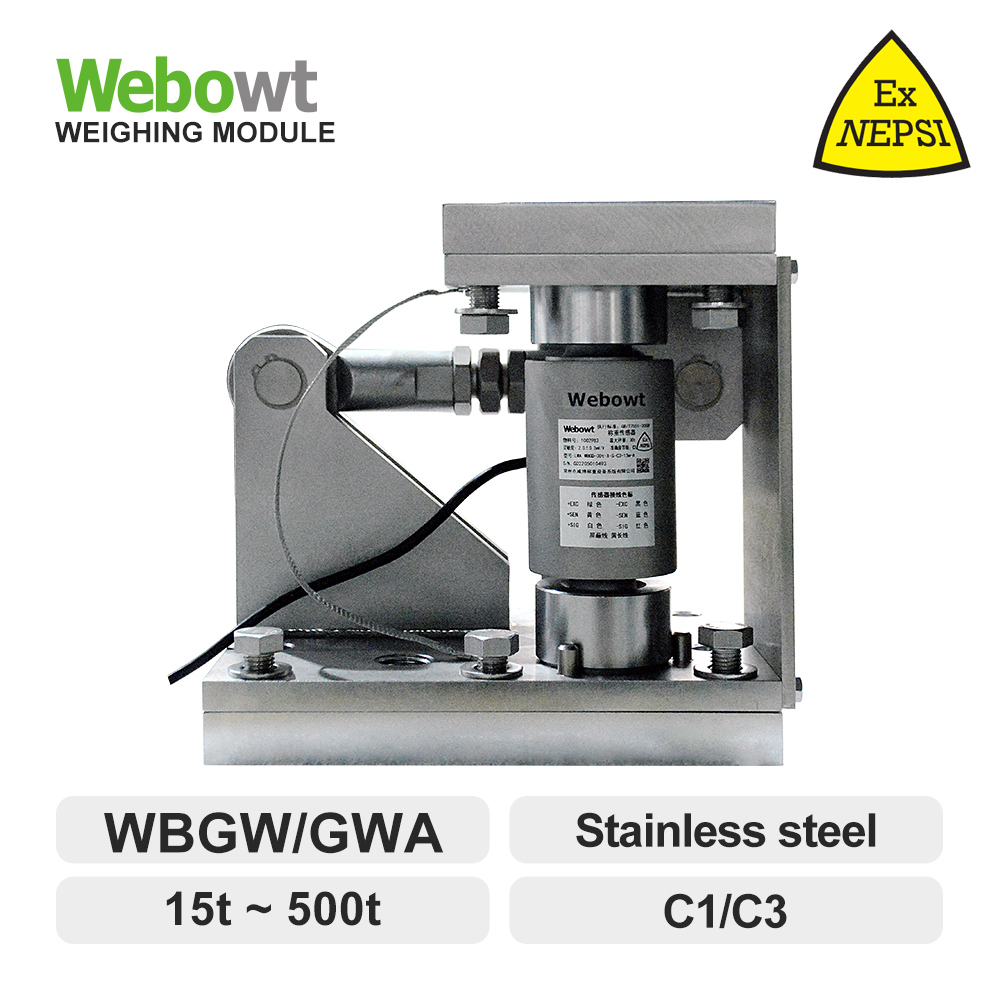

WBGW/GWA , Weighing Module 15t~500t
WEBOWT
84239000
WBGW/GWA
Product Features
Large capacity, low self weigh
With safety supports block mark for overload protection
Corresponding modules with 4-20mA analog output are available
Sealed load cell with stainless steel laser welding, Protection class IP68, Can be used in a variety of harsh environments
Simple and fast installation
It is suitable for batching and weighing control of large-tonnage tanks in harsh environment.
Explosion-proof classification: Ex ia II C T4T6 Ga
Ex ia III C T135℃T85℃ Db
GW mounting plate is stainless steel, GWA mounting plate is alloy steel nickel-plated
Product Selection Configuration
Naming rules:weighing module MWA(a)-b-c-d-e-f-g-h-i/j
| Product Type a | Model b | Elastomer Class C | Capacity (kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i | Module Material |
| MW-Weighing module A-Analog Load cell | WBPGD | (blank):Stainless steel 17-4PH/ CR:Stainless steel 2Cr13 Material | 5,7,5,10,15,20 22.5,25,30,40,50, 100t | N:Standard X:Explosion-proof | S:Normal temperature | C3/C4 | 12,13m | A:Standard,output sensitivity 2.0mV/V F:Customization | C:Alloy steel material S:Stainless steel |
*Cable length of explosion-proof load cell is no longer than 16 meters

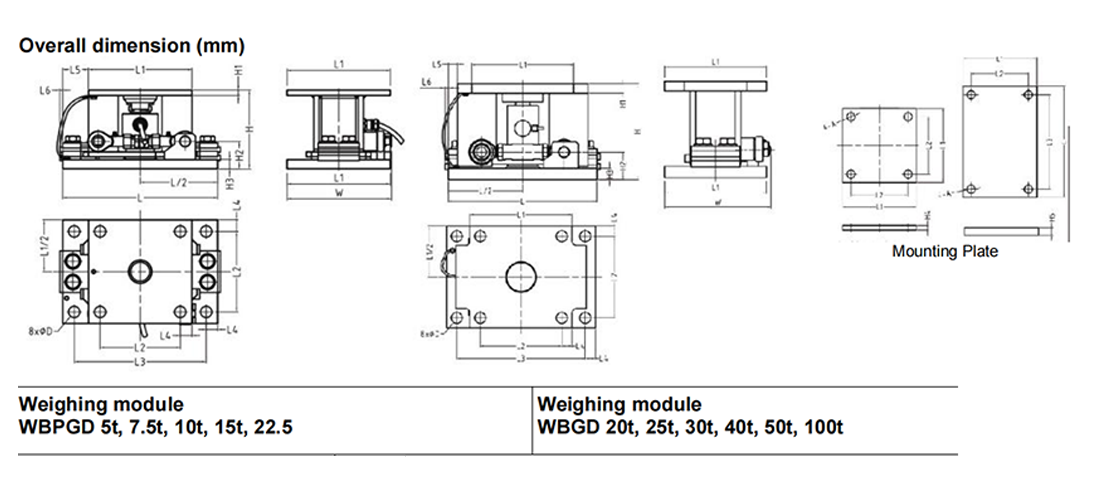

| Serial number | Capacity | Size/mm | ||||||||||||||
| D | H | H1 | H2 | H3 | H4 | H5 | L | L1 | L2 | LB | L4 | L5 | W | A | ||
| 1 | WBPGD 5-25t | 22 | 152 | 11 | 53 | 18 | 15 | 20 | 300 | 200 | 155 | 255 | 22.5 | 50 | 202 | M20 |
| 2 | WBGD 20-50t | 26 | 235 | 23 | 68 | 28 | 33 | 33 | 365 | 250 | 200 | 315 | 25 | 22.5 | 262 | M24 |
| 3 | WBGD 100t | 32 | 263 | 30 | 91 | 33 | 38 | 38 | 440 | 300 | 235 | 375 | 32.5 | 30 | 312 | M30 |

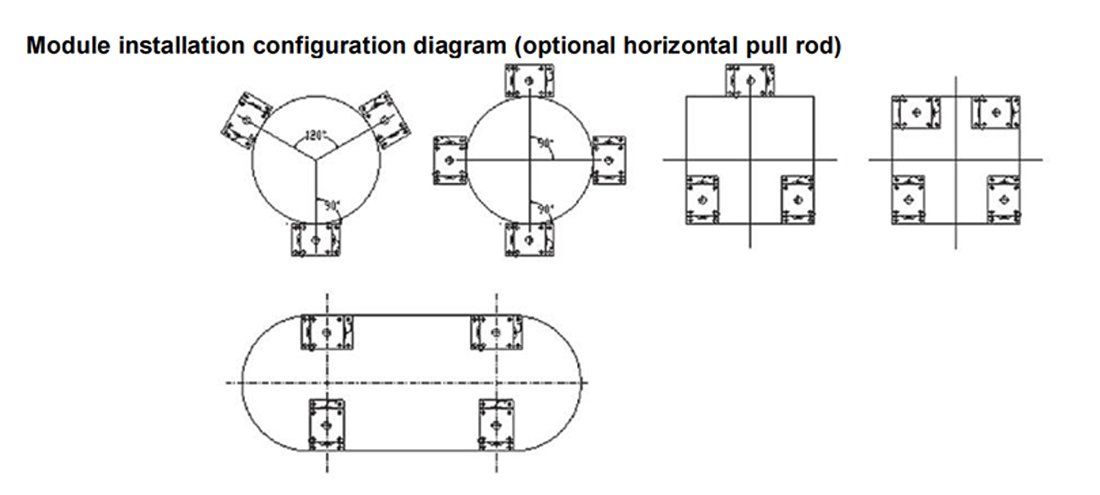

Notice:
1.The horizontal pul rod is used to stabilize the horizontal shaking of the silo tank during application process,such as mixing.
2.Weibo Weighing provides corresponding upper and lower transition plates to facilitate the connection between the weighing moduleand the equipment in site and the pit frame.
Product Features
Large capacity, low self weigh
With safety supports block mark for overload protection
Corresponding modules with 4-20mA analog output are available
Sealed load cell with stainless steel laser welding, Protection class IP68, Can be used in a variety of harsh environments
Simple and fast installation
It is suitable for batching and weighing control of large-tonnage tanks in harsh environment.
Explosion-proof classification: Ex ia II C T4T6 Ga
Ex ia III C T135℃T85℃ Db
GW mounting plate is stainless steel, GWA mounting plate is alloy steel nickel-plated
Product Selection Configuration
Naming rules:weighing module MWA(a)-b-c-d-e-f-g-h-i/j
| Product Type a | Model b | Elastomer Class C | Capacity (kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup i | Module Material |
| MW-Weighing module A-Analog Load cell | WBPGD | (blank):Stainless steel 17-4PH/ CR:Stainless steel 2Cr13 Material | 5,7,5,10,15,20 22.5,25,30,40,50, 100t | N:Standard X:Explosion-proof | S:Normal temperature | C3/C4 | 12,13m | A:Standard,output sensitivity 2.0mV/V F:Customization | C:Alloy steel material S:Stainless steel |
*Cable length of explosion-proof load cell is no longer than 16 meters
| Serial number | Capacity | Size/mm | ||||||||||||||
| D | H | H1 | H2 | H3 | H4 | H5 | L | L1 | L2 | LB | L4 | L5 | W | A | ||
| 1 | WBPGD 5-25t | 22 | 152 | 11 | 53 | 18 | 15 | 20 | 300 | 200 | 155 | 255 | 22.5 | 50 | 202 | M20 |
| 2 | WBGD 20-50t | 26 | 235 | 23 | 68 | 28 | 33 | 33 | 365 | 250 | 200 | 315 | 25 | 22.5 | 262 | M24 |
| 3 | WBGD 100t | 32 | 263 | 30 | 91 | 33 | 38 | 38 | 440 | 300 | 235 | 375 | 32.5 | 30 | 312 | M30 |
Notice:
1.The horizontal pul rod is used to stabilize the horizontal shaking of the silo tank during application process,such as mixing.
2.Weibo Weighing provides corresponding upper and lower transition plates to facilitate the connection between the weighing moduleand the equipment in site and the pit frame.
