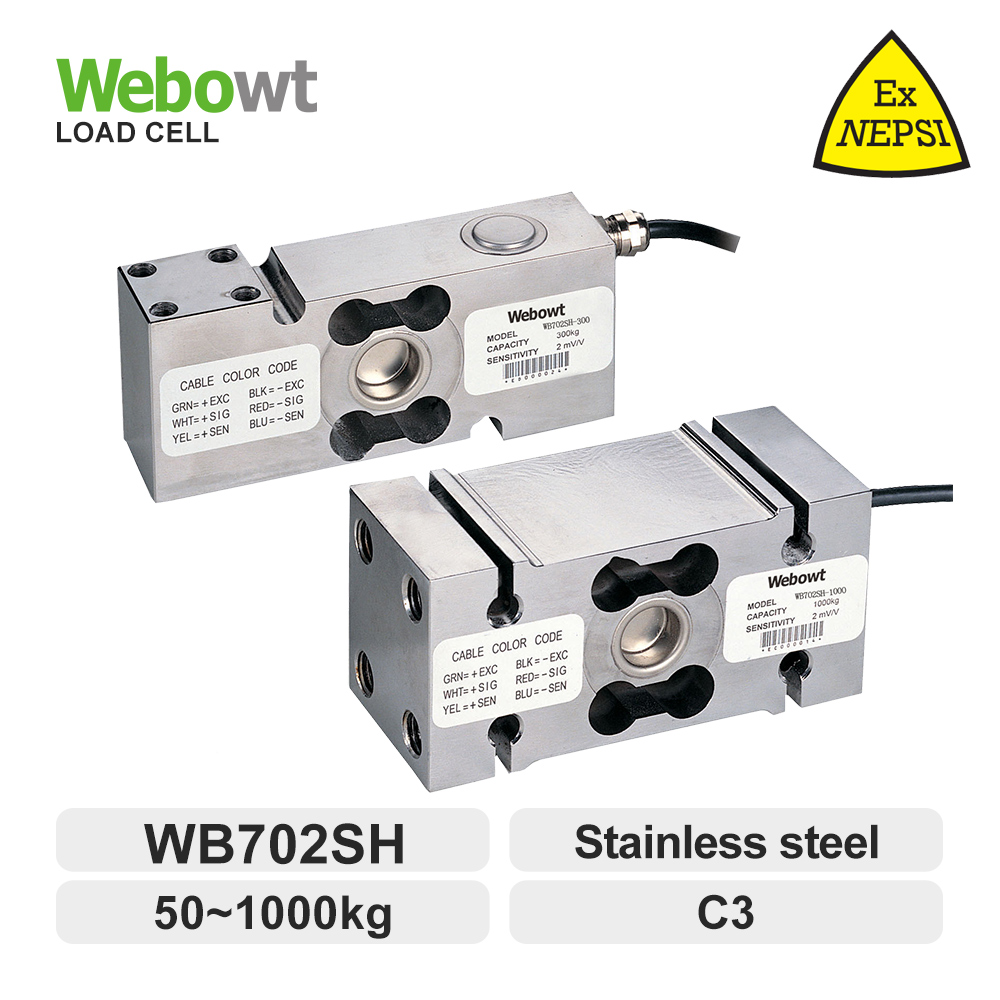

LWA WB702SH, Load Cell 50kg ~ 1000kg
WEBOWT
WB702SH
Product Features
Stainless steel A304, laser welded seal
Protection class IP68, IP69K, Suitable for harsh environment
Explosion-proof classification:
Ex ia IIC T4 Ga; Ex iaD 20 T135
Suitable for stainless steel waterproof scales and process weighing in chemical, food and pharmaceutical industries
Product Selection Configuration
Naming rule:load cell LWA(a)-b-c-d-e-f-g-h-i
Product Type a | Model b | Elastomer Class C | Capacity(kg) d | Certification/Area e | Temperature f | Load Cell Accuracy g | Load Cell Cable Length h | Backup |
LW-Load cell A-Analog Load cell | WB702 | SH:Stainless steel 17-4PH | 50,100,200 300,500,1000 | N:Standard X:Explosion-proof | S:Normal temperature | C3 | 2m | A:Standard,output sensitivity 2.0 mV/N F:Customization |
Specifications | ||||||||
Model | WB702SH | |||||||
Rated capacity | 50 | 100 | 200 | 300 | 500 | 1000 | ||
Sensitivity | mV/V | 2±0.2 | ||||||
Accuracy class | C3 | |||||||
Repeatability error | %R.C. | ≤0.01 | ||||||
Lag | %R.C. | ≤0.02 | ||||||
Non-linearity | %R.C. | ≤0.018 | ||||||
Creep (30 minutes) | %R.C. | ≤0.0168 | ||||||
Zero output | %R.C. | ≤1 | ||||||
Temperature compensation range | ℃ | -10~+40 | ||||||
Opeclassification temperature range | ℃ | -40~+65 | ||||||
Temperature coefficient of sensitivity | %R.C/℃ | ≤0.002 | ||||||
Zero temperature coefficient | %R.C/℃ | ≤0.002 | ||||||
Input impedance | Ω | 385±10 | ||||||
Output impedance | Ω | 350±1 | ||||||
Insulation resistance | MΩ | ≥5000(100V DC) | ||||||
Recommended excitation voltage | V(DC/AC) | 5~15 | ||||||
Maximum excitation voltage | V(DC/AC) | 20 | ||||||
Safety overload | %R.C. | 150 | ||||||
Extreme overload | %R.C. | 300 | ||||||
IP Rating | IP68/P69K | |||||||
Cable length | m | 3 | ||||||
Maximum table size | mm | 500X500 | 600X800 | 800X1000 | ||||
Recommended Bolts | Bolt size | M8 | M14 | |||||
Strength class | A2-70 or above | |||||||
Tightening torque | Nm | 30 | 196 |
