WB101 , Load Cell 1~50kN
WEBOWT
WB1020, WB101
Product Features
Small deformation
Stainless steel material
Tension and Compression Dual-Direction
Mainly used for push and pull force meter, hopper scale, various industrial weighing systems, etc.

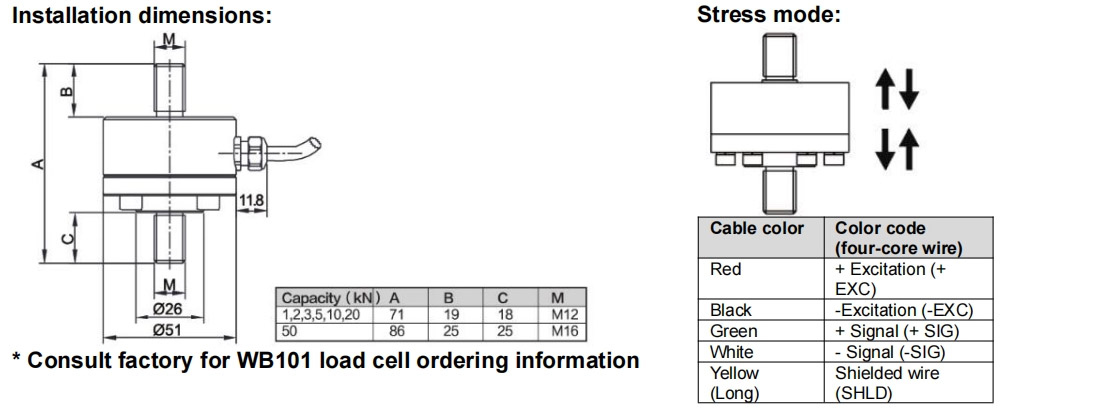

Product Selection Configuration
Parameter | Specifications | Specifications/Technique |
Rated capacity | Capacity | 1,2,5,10,20,50kN |
Output sensitivity | Rated output | 1.5±10%mVV |
Zero output | Zero balance | ±0.03mVN |
Non-linearity | Non-linearity | 0.05%F.S. |
Lag | Hysteresis | 0.05%F.S. |
Repeatability | Repeatability | 0.05%F.S |
Creep (30 min) | Creep (30 min) | 0.05%F.S |
Temperature sensitivity drift | Temp.effect on output | 0.05%F.S/10℃ |
Zero temperature drift | Temp.effect on zero | 0.05%F.S/10℃ |
lnput resistance | Input impedance | 780±20Ω |
Output resistance | Output impedance | 700±10Ω |
Insulation resistance | Insulation | ≥5000MQ/100VDC |
Excitation Voltage | Recommended excitation | 5-15V |
Maximum excitation voltage | Maximum excitation | 20V |
Temperature compensation range | Compensated temp range | -10-60℃ |
Opecassification temperature range | Operation temp range | -20~80℃ |
Safety overload | Safe overload | 150%F.S. |
Extreme overload | Ultimate overload | 200%F.S. |
Cable wire size | Cable size | 04x4000mm |
Single piece weight | Weight approx | 0.6kg |
Material | Material | Stainless Steel(Stainless steel) |
IP Rating | IP Rating | IP67 |
