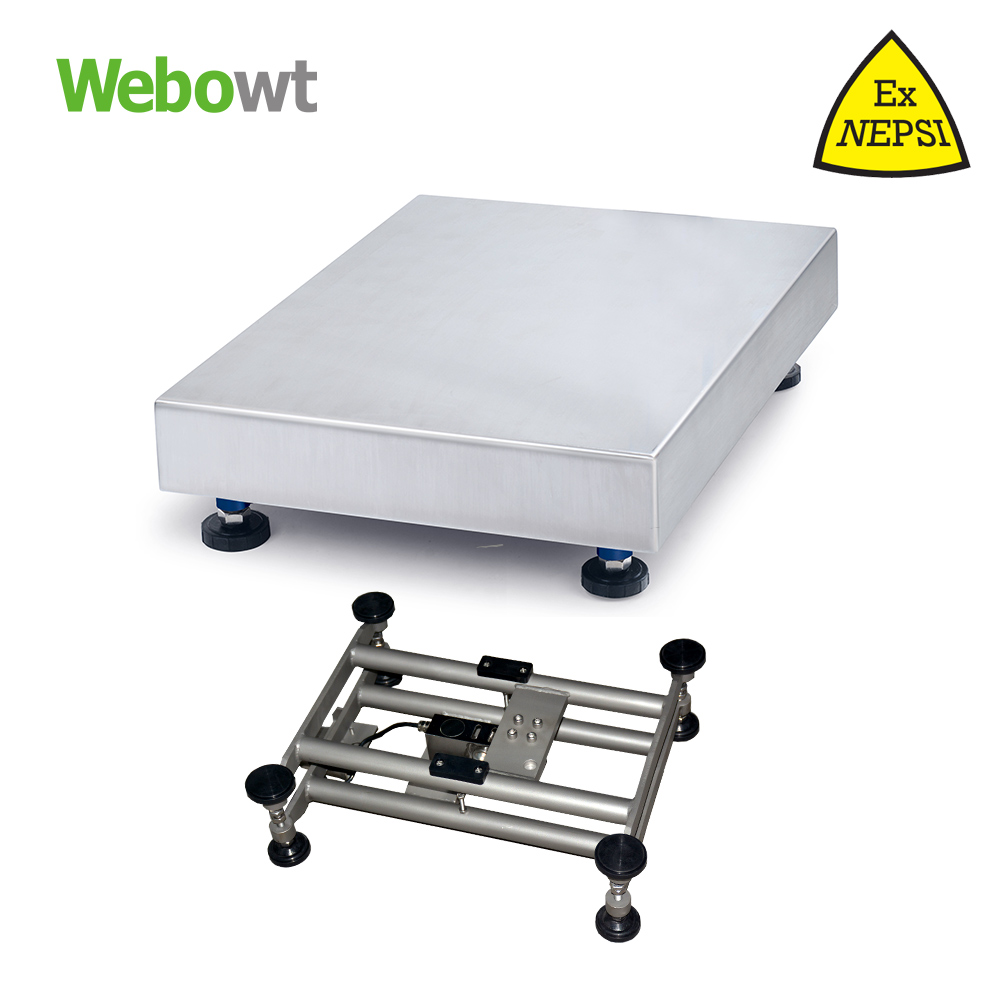

RNS Series Platform Scale
WEBOWT
RNC/RNS
Product Features
RNS-ID226SS2: Stainless steel sandblasted scale body, stainless steel table to
Standard configuration of indicator: RS232+485 Serial port
Standard configuration: lead-acid battery: 4AH, works for 24 hours on a single charge
Product Selection Configuration
Specification and model
Product Name | RNC/RNS | ||||||
Platform material | RNC:Carbon steel platform with powder coating,Stainless steel load plate (AISI304/1.4301); RNS:All stainless steel constructin(AISI304/1.4301); | ||||||
Load cell | RNC:WB1260B/WB1260;RNS:WB702SH | ||||||
Column | Default configuration:stainless steel round pipe column/Option:carbon steel or stainless steel square pipe column | ||||||
Application scenario | Safety area/Hazardous area | ||||||
Maximum Capacity | |||||||
Platform Size | 3kg | 6kg | 15kg | 30kg | 60kg | 150kg | 300kg |
240x300mm | ● | ● | ● | ||||
300x400mm | ● | ● | ● | ||||
400x500mm | ● | ● | |||||
460x600mm | ● | ● | ● | ||||
500x650mm | ● | ● | ● | ||||
600x800mm | ● | ● | ● | ||||
Verification scale interval e | 1g | 2g | 5g | 10g | 20g | 50g | 100g |
Environment,IP protection | Dry or slight water environment,IP65 |

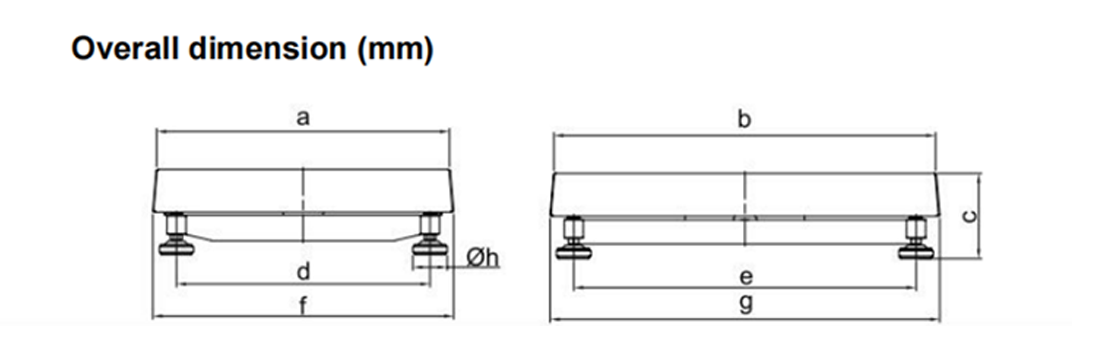

Model | a | b | C | d | e | f | g | h |
BWARNC/RNS-240x300 | 240 | 300 | 86 | 200 | 260 | 250 | 310 | 40 |
BWARNC-300x400 | 300 | 400 | 114 | 240 | 340 | 314 | 414 | 54 |
BWARNC-400x500 | 400 | 500 | 120 | 340 | 440 | 413 | 513 | 54 |
BWARNS-300x400 | 300 | 400 | 141 | 240 | 340 | 314 | 414 | 54 |
BWARNS-400x500 | 400 | 500 | 137 | 340 | 440 | 413 | 513 | 54 |
BWARNC/RNS-460x600 | 460 | 600 | 135 | 400 | 540 | 475 | 615 | 54 |
BWARNC/RNS-500x650 | 500 | 650 | 145 | 440 | 590 | 518 | 668 | 54 |
BWARNC/RNS-600x800 | 600 | 800 | 155 | 540 | 740 | 617 | 817 | 54 |
