RKS
WEBOWT
RKS
Product Features

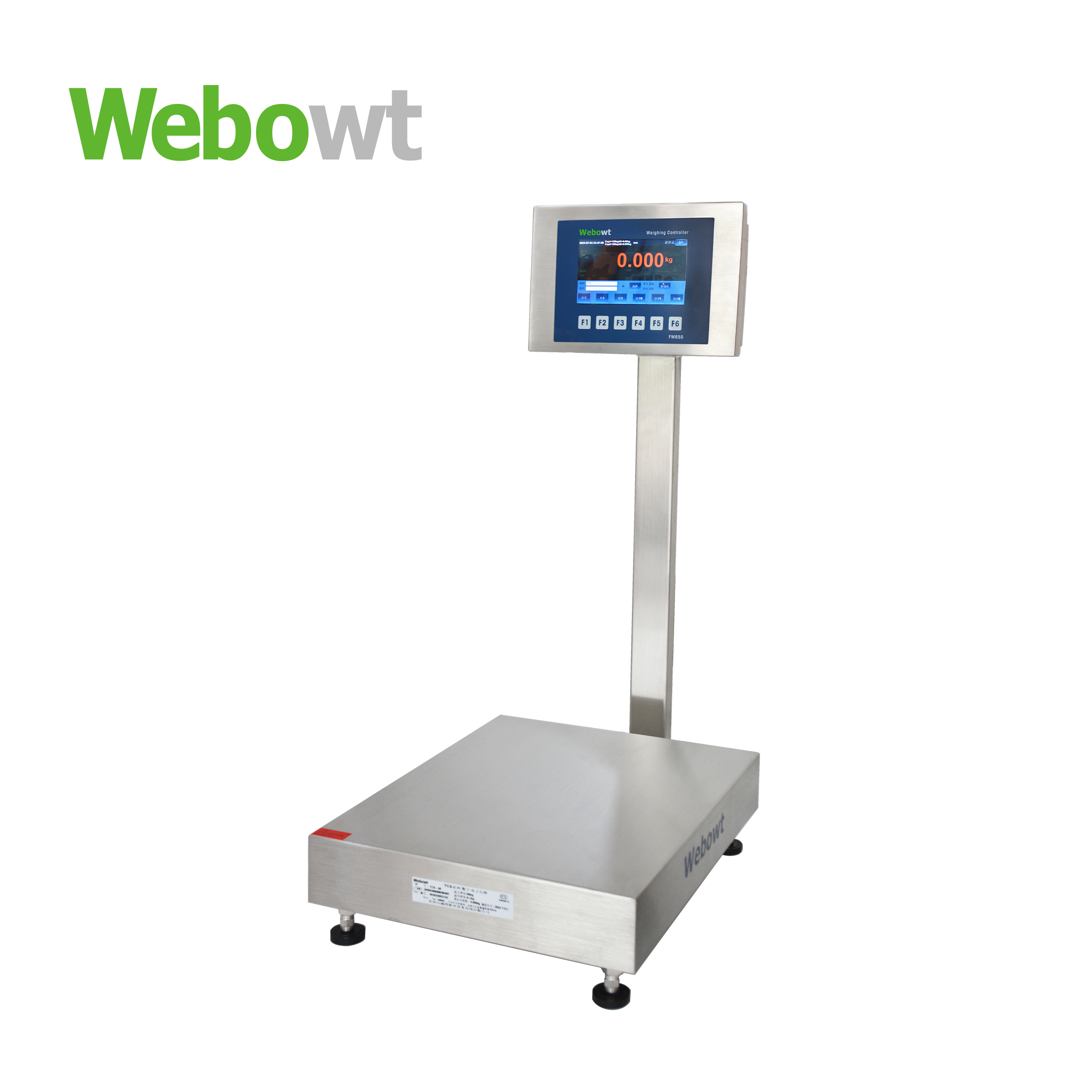

RKS: All stainless steel open construction
Electrochemical polishing treatment of scale body, surface roughness Ra<0.8um
WB702SH Stainless Steel Laser Welded Seal Load cell
Suitable for food, medicine, chemical industry and other applications requiring washable.
Easy to clean, open, robust scale body design and laser-welded sealed load cell allow for efficient cleaning and can help reduce possible bacterial infections
Food hygiene requirements: stainless steel A304, surface electrochemical polishing treatment, meet the salt spray test: does not rust after 72 Hours
Product Selection Configuration
Specification and model
| Product Name | RKS | |||||||
| Scale material | All stainless steel,electrochemically polished | |||||||
| Load cell | WB702SH high-precision digital load cell | |||||||
| Column | Stainless steel square column | |||||||
| Application | ID511 Digital Weighing Indicator | |||||||
| Capacity | ||||||||
| Scale size | 3kg | 6kg | 15kg | 30kg | 60kg | 150kg | 300kg | 600kg |
| 240x300mm | ● | ● | ● | |||||
| 300x400mm | ● | ● | ● | |||||
| 400x500mm | ● | ● | ● | |||||
| 500x650mm | ● | ● | ● | ● | ||||
| 600x800mm | ● | ● | ● | ● | ||||
| Calibration scale value | 0.5g | 1g | 2g | 5g | 10g | 20g | 50g | 100g |
| Display division value | 0.2g | 0.5g | 1g | 2g | 5g | 10g | 20g | 50g |
| Environment,IP Rating | Wet environment,washable,IP68/IP69K | |||||||
| Model | a | b | C | d | e | f | h |
| BWA RKS2430 | 240 | 300 | 86 | 175 | 235 | 326 | 40 |
| BWA RKS3040D0015 | 300 | 400 | 122 | 235 | 335 | 423 | 42 |
| BWA RKS3040D0030(60) | 300 | 400 | 127 | 235 | 335 | 423 | 42 |
| BWA RKS4050 | 400 | 500 | 137 | 335 | 435 | 523 | 42 |
| BWA RKS5065 | 500 | 650 | 142 | 435 | 586 | 673 | 42 |
| BWA RKS6080 | 600 | 800 | 142 | 503 | 724 | 824 | 42 |
