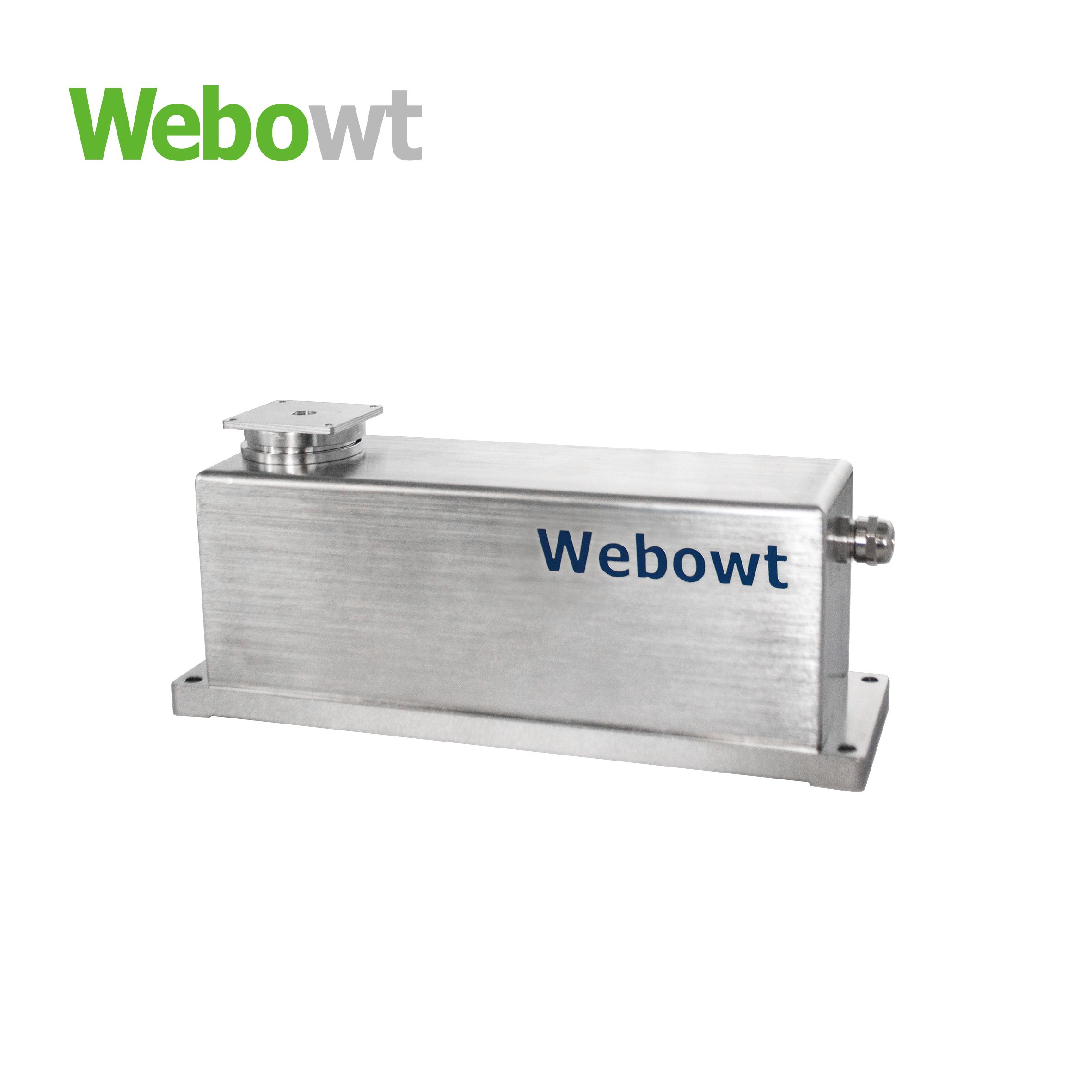

RGS High-precision Weighing Module
WEBOWT
RGS
The RGS weighing module is high-resolution, compact, modularly configured, and combined-mounted, featuring a high-precision digital weighing module designed for industrial automation applications. It features long-term reliability, flexible combination, simple installation, and accurate weighing, and is widely used in the medical, lithium battery, and other industries.
Main Features:
• The weighing range is from 0.22kg-8.2kg, which can be applied to different occasions.
• Resolution ranges from 0.1 mg to 10 mg.
• Accurate weighing with short settling time.
• The compact and robust design of the weighing module features modular pressure-bearing components for easy installation and maintenance.
• The module is installed at multiple heads, and the installation distance is 70-85mm.
• The housing parts are all stainless steel (AISI304).
• Overload protection protects the weighing module in all directions and weighs stably.
The RGS weighing module is high-resolution, compact, modularly configured, and combined-mounted, featuring a high-precision digital weighing module designed for industrial automation applications. It features long-term reliability, flexible combination, simple installation, and accurate weighing, and is widely used in the medical, lithium battery, and other industries.
Main Features:
• The weighing range is from 0.22kg-8.2kg, which can be applied to different occasions.
• Resolution ranges from 0.1 mg to 10 mg.
• Accurate weighing with short settling time.
• The compact and robust design of the weighing module features modular pressure-bearing components for easy installation and maintenance.
• The module is installed at multiple heads, and the installation distance is 70-85mm.
• The housing parts are all stainless steel (AISI304).
• Overload protection protects the weighing module in all directions and weighs stably.
