| Scale material: | |
|---|---|
| Load cell: | |
| Quantity: | |
FWA PUS-084126-H-3N-0-1500
WEBOWT
84239000
PUC/PUS
Product Features
Features:
U Type scale structure: easy to carry and weigh goods quickly
Handles and casters: easy to mov
Simple and convenient installation, maintenance and operation
Particularly suitable for 0.8m x 1.2m Standard Pallet Weighing
Example of configuration:
FWA PUC-084126-H-3N-0-1500

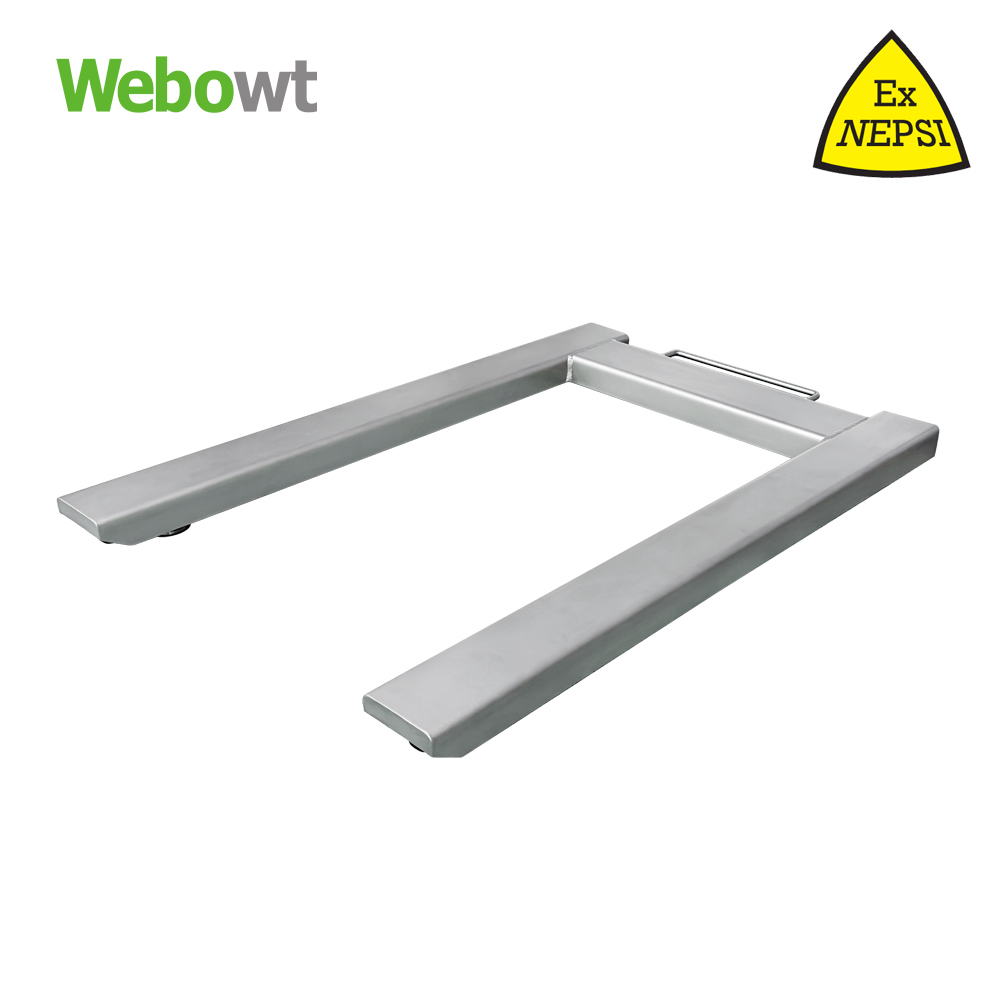

PUC Carbon steel plastic spraying U Type platform scale, with the dimensions of 840×1260mm, maximum capacity 1500kg, Verification division value 0.5kg, alloy steel load cell.
Note: Please refer to the product selection instructions on page 150-151.
Product Selection Configuration
Configuration list
| Product Name | PUC/PUS |
| Product model | SCS-□ |
| Accuracy class | Ⅲ |
| Application | □Safety area □Explosion-proof area |
| Maximum capacity/Verification division value | 1500kg/0.5kg |
| Junction box | AJB-015 |
| Scale material | PUC Carbon steel plastic spraying,PUS:A304 Stainless steel |
| Load cell | PUC:WB702C Alloy steel oad cell;PUS:WB702 Stainless steel load cell |
| Height of table top from the ground | 85mm |

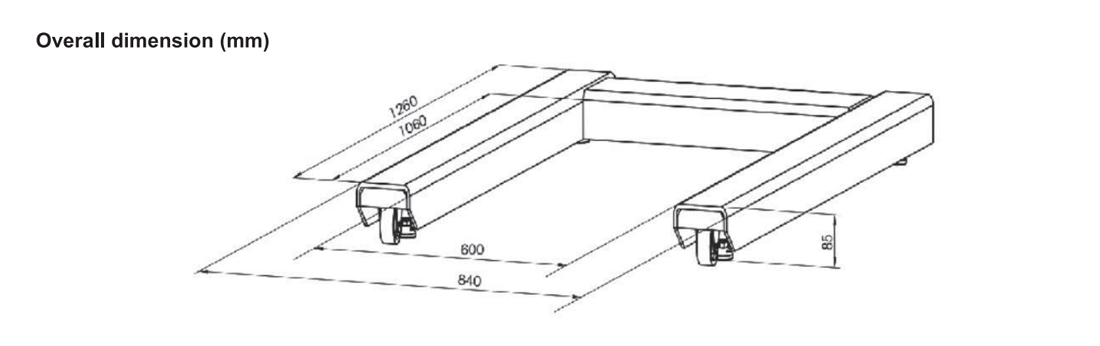

| Outer dimension(m×m) | 1.26×0.84 |
| Inner dimension(m×m) | 1.06×0.6 |
