| Scale material: | |
|---|---|
| Maximum capacity/Verification division value: | |
| Forklift width & Fork length: | |
| Quantity: | |

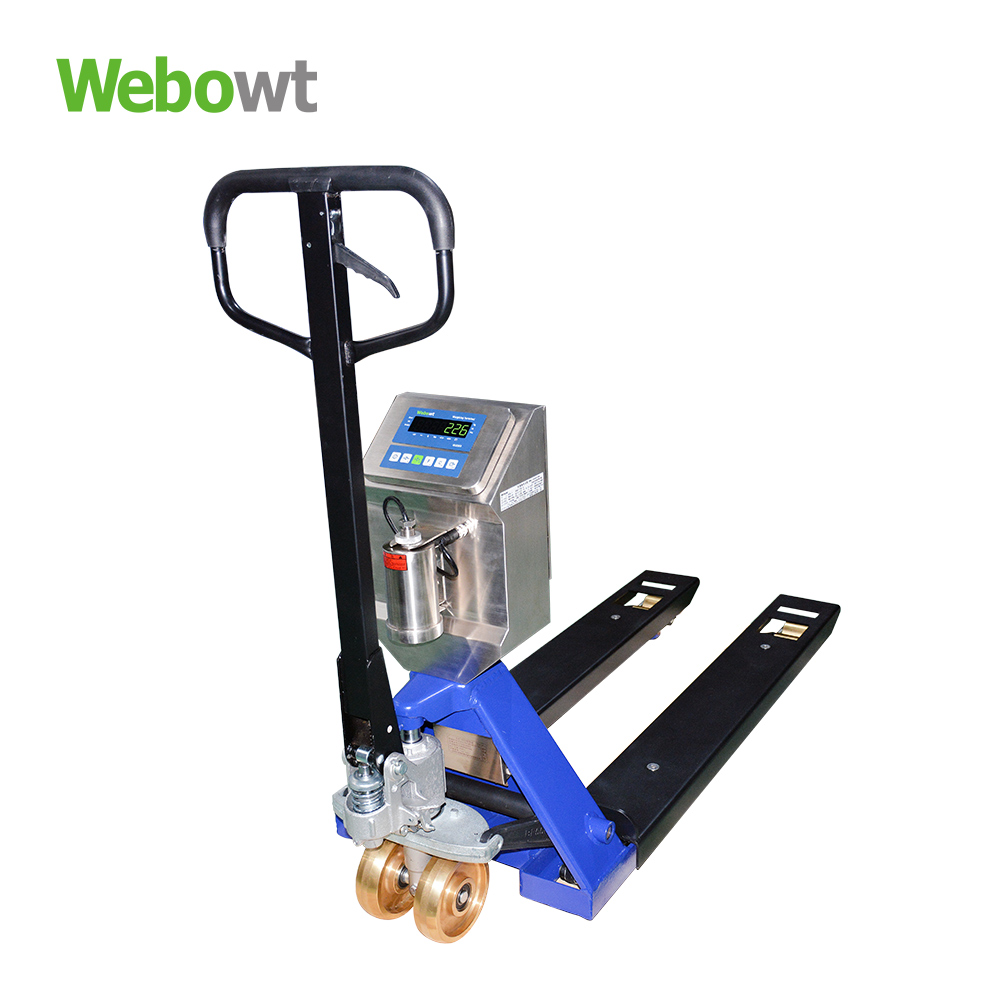

PTA Forklift Scale
WEBOWT
PTA
Product Features
PTA-ID226X Features:
Power supply of intrinsically safe explosion-proof battery
Works for 40 hours on a single charge
Supports explosion-proof bluetooth/ZigBee wireless communication
Supports explosion-Proof PDA wireless connection
Copper rolle
PTA-ID226 Features:
Standard configuration: RS232+485 serial port to connect to a printer
Standard configuration: lead-acid battery: 4AH, works for 24 hours on a single charge
With bluetooth, WiFi function, wireless upload of weighing data
Hydraulic manual lifting
Polyurethane roller
Product Selection Configuration
Configuration list:
| Product Name | PTA | |
| Product model | SCS-□ | |
| Accuracy class | Ⅲ | |
| Maximum capacity/Verification division value | 1t/1kg;2t/2kg | |
| Junction box | AJB-015 | |
| Scale material | Carbon steel plastic spraying/Stainless steel A304 | |
| Load cell | WB702C Alloy steel load cell/NB702 Stainless steel oad cell | |
| Application | □Safety area | □Explosion-proof area |
| Weighing indicator | ID226 | ID226X |
| Forklift width(mm) | 555 | 690 |
| Fork length (mm) | 1150 | 1220 |
| Minimum fork height(mm) | 8 | 5 |
| Order number | ||
| Forklift width 555(mm) | PTA226-555 | PTA226X-555 |
| Forklift width 690(mm) | PTA226-690 | PTA226X-690 |
Product Features
PTA-ID226X Features:
Power supply of intrinsically safe explosion-proof battery
Works for 40 hours on a single charge
Supports explosion-proof bluetooth/ZigBee wireless communication
Supports explosion-Proof PDA wireless connection
Copper rolle
PTA-ID226 Features:
Standard configuration: RS232+485 serial port to connect to a printer
Standard configuration: lead-acid battery: 4AH, works for 24 hours on a single charge
With bluetooth, WiFi function, wireless upload of weighing data
Hydraulic manual lifting
Polyurethane roller
Product Selection Configuration
Configuration list:
| Product Name | PTA | |
| Product model | SCS-□ | |
| Accuracy class | Ⅲ | |
| Maximum capacity/Verification division value | 1t/1kg;2t/2kg | |
| Junction box | AJB-015 | |
| Scale material | Carbon steel plastic spraying/Stainless steel A304 | |
| Load cell | WB702C Alloy steel load cell/NB702 Stainless steel oad cell | |
| Application | □Safety area | □Explosion-proof area |
| Weighing indicator | ID226 | ID226X |
| Forklift width(mm) | 555 | 690 |
| Fork length (mm) | 1150 | 1220 |
| Minimum fork height(mm) | 8 | 5 |
| Order number | ||
| Forklift width 555(mm) | PTA226-555 | PTA226X-555 |
| Forklift width 690(mm) | PTA226-690 | PTA226X-690 |
