PSM
WEBOWT
Livestock Dynamic Weighing
Product Features

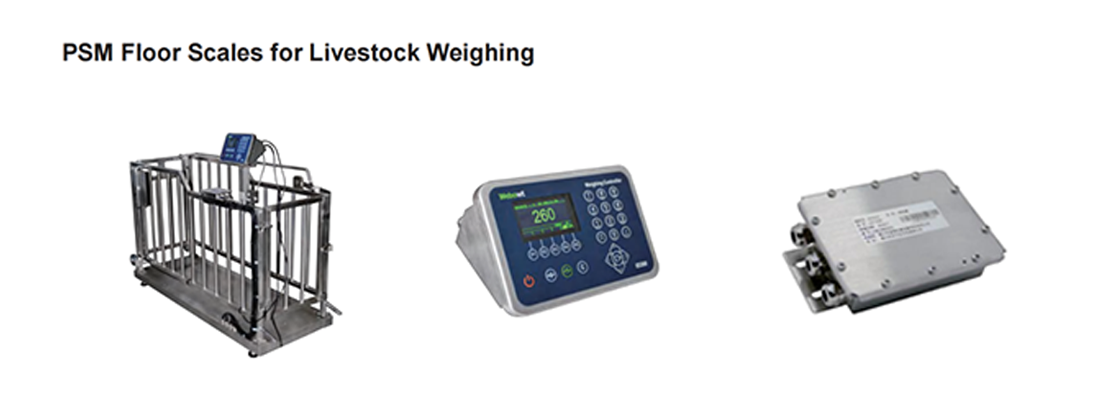

Newly designed mobile weighing floor scale:
PSM floor scales for livestock weighing are mobile floor scales specially designed for
the livestock and slaughtering industry.
The new steel structure of the scale, with different types of load cell installation and
protection.
Equipped with four high-precision load cells and newly-designed intelligent weighing
indicator to form the whole system, the system is highly accurate, rapid
weighing, stable and reliable, and is particularly suitable for weighing various
kinds of live animals. It is especially suitable for weighing all kinds of live
animals
Single-side remote door opening structure with two-point locking.
The load cells are laser-welded and sealed with IP68 protection, and the cables of
the load cells and indicators are protected by metal sleeves, which provide
excellent protection against moisture, corrosion and rodent bites.
Widely used in a variety of industrial occasions
Mobile livestock scales with lightweight platform and convenient tilting
mechanism, capable of being used in a variety of applications such as column
weighing, animal growth inspection, etc
Intelligent weighing indicators:
The instrument utilizes a unique dynamic animal weighing algorithm that allows for
accurate dynamic weighing even when the animal is moving on the scale.
The indicator can be connected to a card reader through the serial port to collect
livestock ear tags and transmit them in real time to the PLC or host computer
through serial port, WIFI, Ethernet and other data transmission methods to
obtain the weight of the animal easily.
The indicator supports 32G of internal storage space to save the weighing records,
USB drive to export the weighing records or web page to export the weighing
records, AISI304
stainless steel case, IP66/67 protection level.
Power supply: 100 - 240V AC or built-in rechargeable battery.
Load Cell Junction Box AJB-035M:
AISI304 stainless steel housing, IP68 protection, supports 4 load cell inputs.
Product Selection Configuration
Configuration and Selection
| Scale platform type | Scale platform model | Scale table size | Maximum capacity of scale | Scale maximum capacity | Connected indicator type |
| FWA | PSM | 060160 | 600 | SS | ID260 |
| FW-floor scale A-analog scale D-digital scale | PSM- Mobile livestock scale | 060160-0.6mx1.6m 070160-0.7mx1.6m | 300-300kg 600-600kg | SS-AIS1304 PC-Plastic spraying or painting ZN-Hot dipped galvanizing | ID260 -ID260 Animal Weighing Version |
| *Other sizes are non-standard customized | "Other capacity is non-standard customized | ||||
| Accuracy level: | Level Ⅲ | ||||
| Verification accuracy: | 3000e | ||||
| Temperature range: | -10℃ to+40℃ | ||||
| Scale platform: | ASI304:Stainless steel brushed finish/Carbon steel:Patterned non-slip steel plate,sprayed(painted)or hot dipped galvanizing | ||||
| Spray or paint default color: | AISI304:Stainless steel wire drawing natural color/spray coating:Weibo blue,RAL5001/Hot dip zinc:silver white | ||||
| Indicator model | Housing type | Display | Scale platform interface | PLS interface | I/O options | SD card | Application sub items | Language | Power Supply |
| ID260 | X | X | X | X | X | X | X | X | X |
| ID260 | R:Round Tub eBracket Installation | E:OLED | A:Analog scale D:Digital scale CAN | 0:RS232+RS485+USB x1 1:RS232+RS485+USB x1+WIFI 2:RS232+RS485+USB x2+LAN 3:RS232+RS485+USB ×2+LAN+WIFI | 0:No 1:4 inputs/6 relay outputs 2:4 inputs/6 relay outputs +audible and visual alam light | 0:NO 1:32G | 0: Animal weighing version | 0:Chinese 1:Mulilingual | G:110/220VAC with power cord 2:110/220VAC with power cord and built-in battery |
