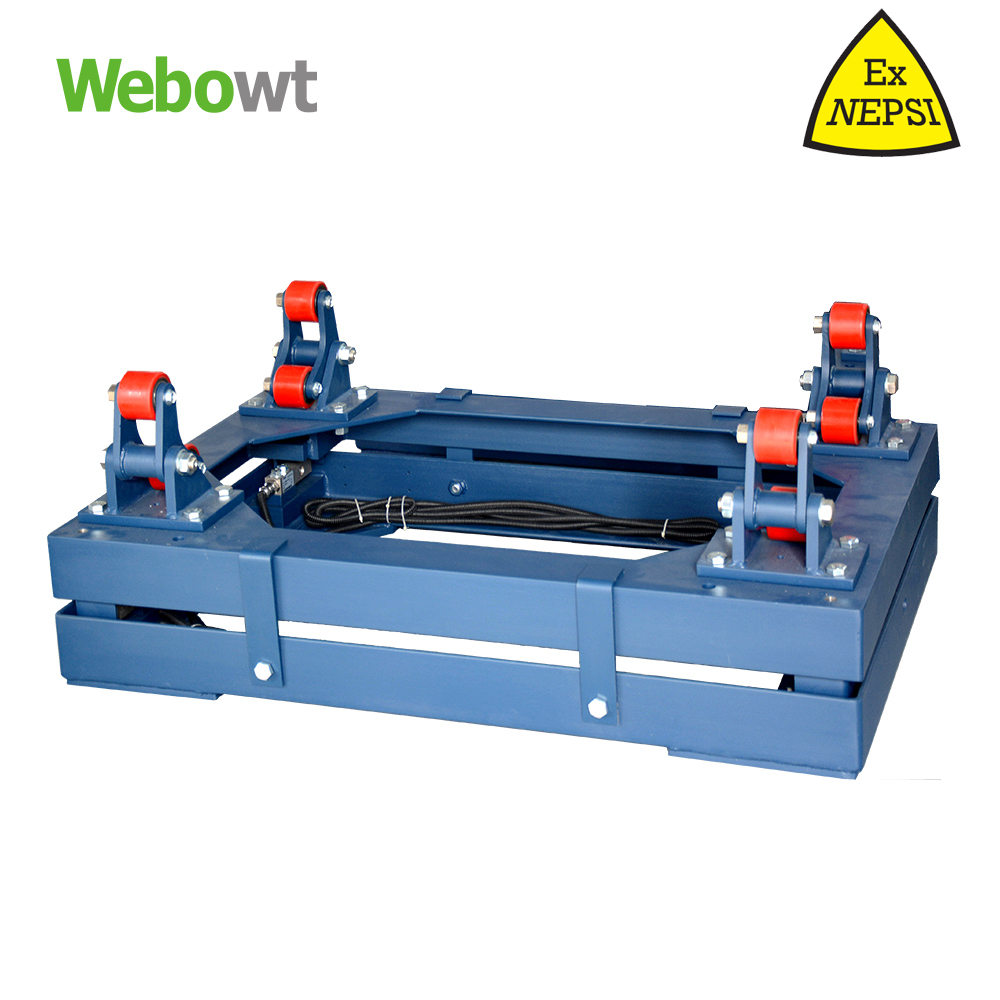

PGC Steel Cylinder Floor Scale
WEBOWT
PGC
Product Features
Special for weighing steel cylinde
Frame structure
Convenient to clean
The bracket on the scale can facilitate the rotation of the steel cylinder
Various applications can be realized by selecting different indicators.
Example of configuration:
FWA PGC-080120-H-3N-0-2000
PGC Special platform scale for carbon steel plastic spraying steel cylinder, with table size of 800×1200mm, maximum capacity 2000kg, verification division value 1kg, stainless steel load cell.
Note: Please refer to the product selection instructions on page 150-151.
Product Selection Configuration
Configuration list
| Product Name | PGC |
| Product model | SCS-□ |
| Accuracy class | Ⅲ |
| Application | □Safety area □Explosion-proof area |
| Maximum capacity/Verificationdivision value | 2t/1kg;3t/1kg |
| Junction box | AJB-015 |
| Scale material | Carbon steel plastic spraying |
| Load cell | WB702 Stainless steel load cell |
| Table top size(m×m) | 0.8×1.2 |
Product Features
Special for weighing steel cylinde
Frame structure
Convenient to clean
The bracket on the scale can facilitate the rotation of the steel cylinder
Various applications can be realized by selecting different indicators.
Example of configuration:
FWA PGC-080120-H-3N-0-2000
PGC Special platform scale for carbon steel plastic spraying steel cylinder, with table size of 800×1200mm, maximum capacity 2000kg, verification division value 1kg, stainless steel load cell.
Note: Please refer to the product selection instructions on page 150-151.
Product Selection Configuration
Configuration list
| Product Name | PGC |
| Product model | SCS-□ |
| Accuracy class | Ⅲ |
| Application | □Safety area □Explosion-proof area |
| Maximum capacity/Verificationdivision value | 2t/1kg;3t/1kg |
| Junction box | AJB-015 |
| Scale material | Carbon steel plastic spraying |
| Load cell | WB702 Stainless steel load cell |
| Table top size(m×m) | 0.8×1.2 |
