ID511 digital scale weighing controller,DIN Rail

Product Features

7-digit LED segment display

Support one digital scale, support up to 8 load cells

2 serial ports RS232+RS232/485 or 2 serial ports RS232+RS485 with an Ethernet port are standard.

MODBUS-RTU and MODBUS-TCP are supported as standard.

PLC communication interface options

·PROFIBUS-DP (Siemens PLC)

·PROFINET (dual Ethernet ports, built-in switch, Siemens PLC)

·EtherNet/IP (dual ports, built-in switch, Rockwell PLC, DeltaPLC)

·CC-link (Mitsubishi PLC)

·1-channel 4-20mA (16-bit precision DAC)

·2-channel 4-20mA (16-bit precision DAC)

I/O (input/output options)

·8 inputs and 12 transistor outputs

·8 inputs and 12 relay outputs

Supported Applications

·Basic weighing version

·Supports two-speed preset point control and 8 simple comparison outputs

·Lower/upper limit level detection

Operating power supply: AC 85-264VAC, or DC 24VDC,maximum power consumption less than 6W.

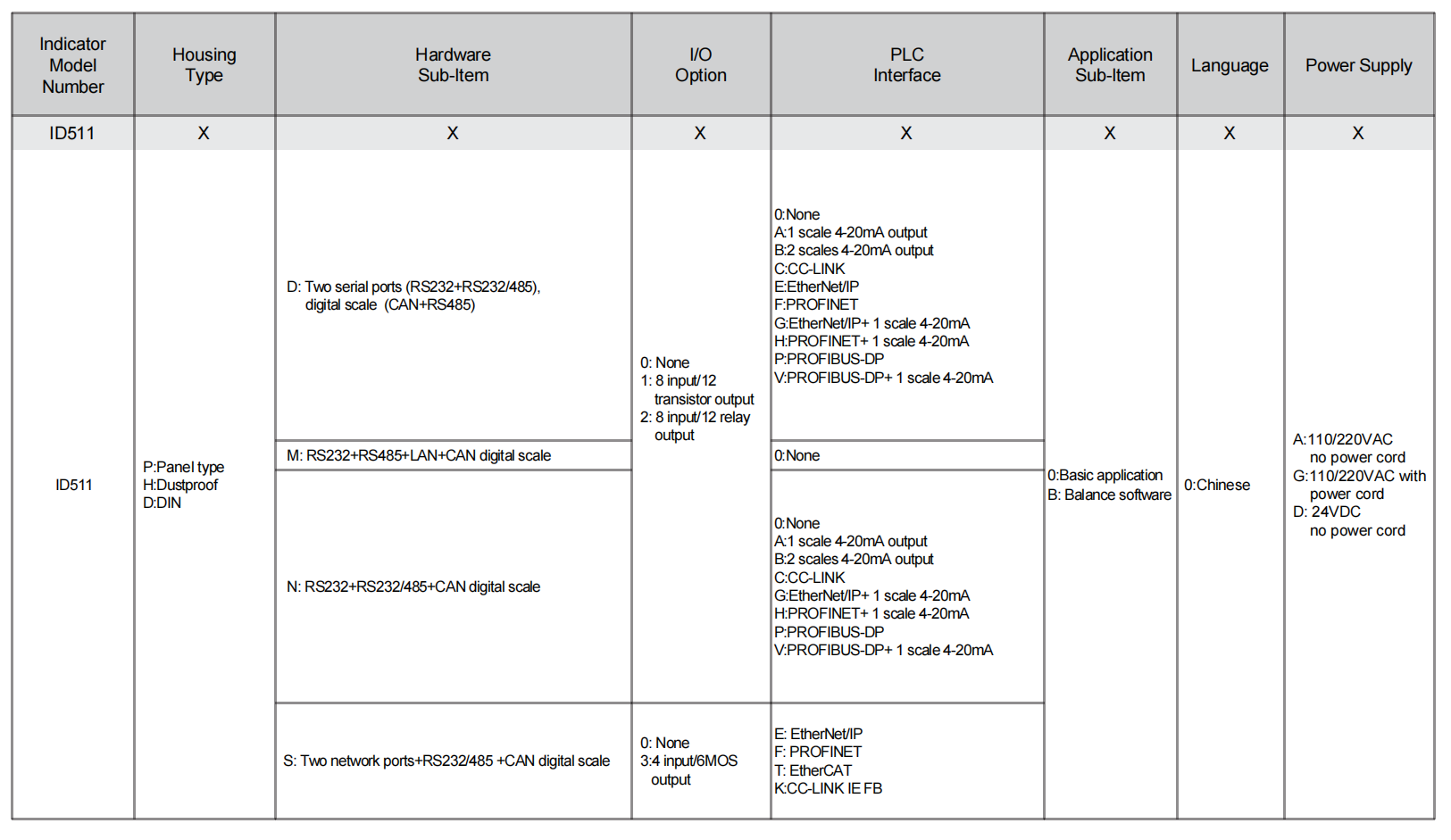

Product Selection Configuration
