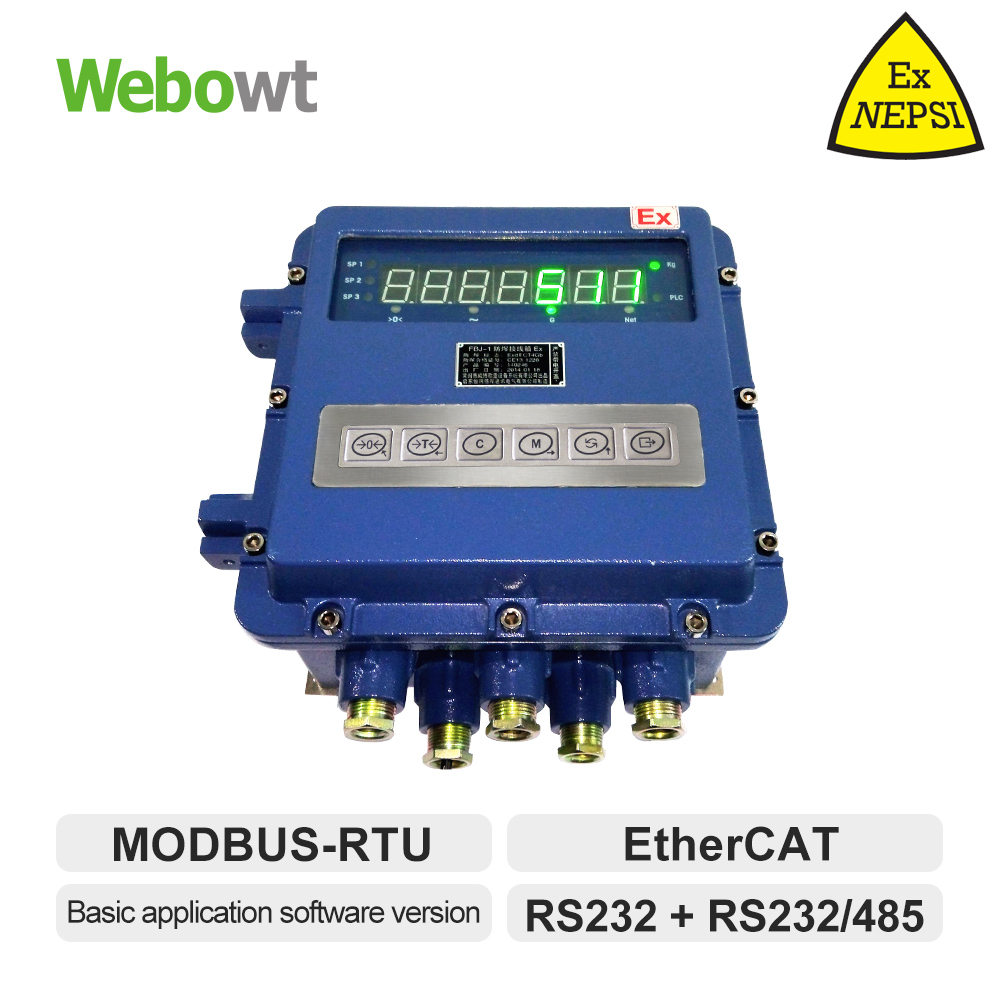

EXD ID511, Blue Cast Aluminium EXD Box

  • Configurates with various explosion-proof scale: EXPHC/EXPHS
  • Supports for multiple shell types
  • Has a wide selection of interface boards and supports various application software packages.
  • Abundant PLC communication interface
Power Supply:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • ID511EC0T00A


  • 85110DH

  • ID511 Exd

Order No.: 85110DH

Model No.: ID511EC0T00A

EXD ID511, Blue Cast Aluminium EXD Box, IIB T6,

Two serial ports(RS232+RS232/RS485),


7-bit LED,


110V/220VAC without power cord,


EXD ID511 Isolation explosion-proof weighing Indicator

  • 7-bit LED segment code display

  • Support one analog scale input, up to 12 load cells

  • CPA 6000e  certified precision, up to 150,000d display division

  • Have passed OIML & CE certification

  • Standard with two serial ports: RS232+RS232/485 or RS232+RS485+LAN Port(EtherNet)

  • Standard support MODBUS-RTU, MODBUS-TCP(Only for LAN Port version)

  • PLC Options

> CC-link (Mitsubishi PLC)
> PROFINET (LAN Port x2, built-in switch, Siemens PLC)
> EtherNet/IP (LAN Port x2, built-in switch, Rockwell PLC, Delta PLC)
> 4-20mA(16-bit precision DAC)
> 4-20mA x2(16-bit precision DAC)
  • I/O Options

> IN x8 / OC OUT x12
> IN x 8 / Relay OUT x 12
  • Multi-calibration

> Support up to 5-point test weight calibration
> No test weight calibration
> Remote calibration via PROFIBUS-DP, PROFINET, EtherNet/IP, etc.
  • Main Applications

> Basic Weighing
> Lower limit and upper limit level checking
> Support two speed preset point control and 8 simple comparison outputs
  • Working power supply

> Support 85-264VAC or 24VDC, and the maximum power consumption of the whole machine is less than 6W
  • Overall explosion proof certification of indicator and isolation explosion-proof box

  • Built in 6-wires load cell safety barrier
