Views: 0 Author: Site Editor Publish Time: 2025-11-10 Origin: Site
You might ask which load cell is better for you. It depends on what you need. Analog is good if you want easy setup and quick data. Digital is better if you want strong signals and less noise. Here are some important things to compare:
| Criteria | Analog Load Cells | Digital Load Cells |
|---|---|---|
| Signal Content | Continuous, can pick up noise | Binary, less affected by outside factors |
| Data Sample Rate | Real-time, but can have noise issues | High rate, precise data |
| Advantages | Simple, real-time data | Strong signal, less noise, advanced features |
Pick analog load cells for easy setups and fast data. They are simple to put in and give instant measurements.
Use digital load cells when you need high accuracy and less noise. They send stronger signals and work well in tough places.
Think about where you will use them. Digital load cells are best in loud or rough spots. Analog load cells are good for simple weighing jobs.
Look at the total cost over time. Analog load cells cost less at first. Digital load cells can save money later because they need less fixing.
Always choose the load cell that fits your needs. Check things like how accurate it is, how hard it is to install, and the place you will use it.
Picking the right load cell depends on your needs. If you want fast and simple measurements, use an analog load cell. You can set it up fast and get real-time data. This is good for basic weighing jobs. You do not need extra features for these tasks.
If you need more accuracy and less noise, pick digital load cells. These are best in places with lots of electrical noise. They also work well with long cables. You get stronger signals and better data quality. Digital load cells work with modern digital systems. You can use them in labs or factories. They are great when you need high precision and easy data transfer.
Tip: Think about where you will use the load cell. Also, think about the kind of data you want. If you want simple and quick, choose analog. If you want accuracy and easy computer connection, choose digital.
Analog and digital load cells handle signals in different ways. Here is a quick look at what makes them different:
Analog load cells make a small voltage signal. This signal is very weak and needs to be made stronger. You must use extra tools to do this.
Digital load cells have a microprocessor inside. This chip changes the signal from analog to digital. You get a digital output right away.
Analog load cells need more work outside the cell. Digital load cells do most of the work inside. The signal is ready to use.
Analog load cells send out about 0.03 volts. Digital load cells send out a stronger signal, between 2 and 6 volts.
Both types start with a strain gauge that makes an analog signal. Digital load cells change this to digital. This helps make your data more accurate and reduces mistakes.
Here is a table to help you compare how they work with new systems:
| Load Cell Type | Output Format | Compatibility with Modern Systems |
|---|---|---|
| Digital | Discrete digital output | Easier integration with microcontrollers and digital systems |
| Analog | Continuous voltage signal | May require additional signal conditioning for digital compatibility |
Digital load cells work better with new data systems. You do not need extra tools to connect them to computers. Analog load cells may need more parts to work with digital devices.
An analog load cell helps you measure weight or force. It makes a voltage signal that changes when you add weight. The signal moves up or down as the weight changes. Many factories use these for weighing things. You get the signal right away, so you see results fast.
Most analog load cells have something called a Wheatstone bridge. This bridge makes a tiny electrical signal. The signal is measured in millivolts for each volt you use. The signal matches how much force you put on the cell. You need to make the signal bigger and fix it before using it. The analog signal is smooth and does not jump around. You get a steady flow of information.
Note: Analog signals can get noise from things around them. Wires and machines can mess up your readings. You might need extra tools to clean the signal.
When you put weight on the cell, the strain gauge bends a little. This bending changes the resistance in the Wheatstone bridge. The bridge then sends out a voltage signal. You connect this signal to a device that shows the weight.
Here is how it works step by step:
You put force on the load cell.
The strain gauge bends and its resistance changes.
The Wheatstone bridge makes a voltage signal.
The signal goes to an amplifier or ADC.
You see the weight or force on a screen.
You often need to fix the signal before using it. This means you make the signal stronger and take away noise. Analog load cells need to be checked often to stay correct. They can pick up more noise than digital load cells.
| Feature | Analog Load Cells | Digital Load Cells |
|---|---|---|
| Signal Type | Continuous electrical signal | Digital format |
| Noise Susceptibility | More susceptible to noise | Enhanced noise immunity |
| Calibration | Requires frequent calibration | Less frequent calibration needed |
| Accuracy | Generally less accurate | Improved accuracy |
| Data Processing | Analog processing | Digital processing with advanced diagnostics |
If you want simple and fast data, analog load cells are good. You need to watch for noise and check calibration to get the best results.

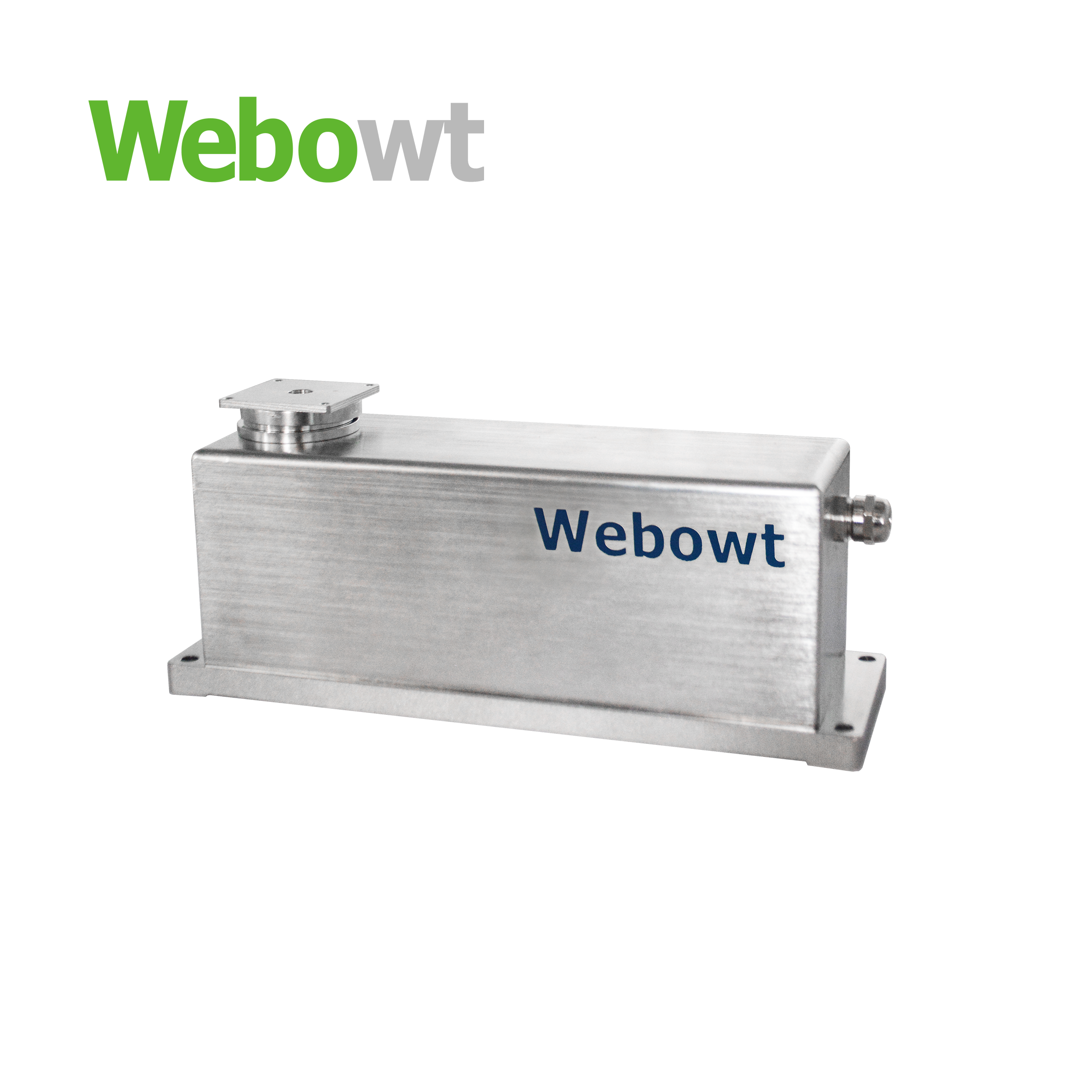

A digital load cell helps you measure weight or force very accurately. It changes the force you use into a digital signal. Inside the cell, there is a small chip called an analog-to-digital converter (ADC). This chip takes the weak analog signal from the strain gauge and turns it into numbers. Your computer can read these numbers.
Here is how the change happens: The ADC takes the smooth analog signal and splits it into steps. This is called quantization. The ADC’s resolution tells you how many steps it can make. If the resolution is higher, you get more detail and less error. Many ADCs have 8 bits, which means 256 levels. Some digital load cells use even more levels for better accuracy.
The digital load cell does all this work inside the device. You do not need extra tools to change the signal. This makes your setup simple and your data more trustworthy.
Tip: You can trust the numbers from a digital load cell. The signal changes inside the cell. This helps stop mistakes and keeps your readings clear.
Digital load cells send data in a way that works with new systems. You get a digital output that connects easily to computers and controllers. The cell uses special ways to send the data.
Here is a table with some common protocols and what they do:
| Protocol | Advantages | Disadvantages |
|---|---|---|
| HART | Works with 4-20mA systems Can talk both ways Used a lot | Slow data speed (1.2 kbps) |
| PA (Profibus PA) | Safe to use Power and data together Digital communication | Slow speed (31.25 kbps) Hard to set up |
| FF (Foundation Fieldbus) | All digital Works with many devices Control in many places | Slow data speed (H1) Hard to install and fix |
You can pick the protocol that works best for your system. Digital load cells are good for factories and labs. You get fast and accurate data sent right to your devices.
Note: With digital load cells, you do not need extra amplifiers or converters. You get a strong signal and easy data transfer.
An analog load cell gives you a steady voltage signal. This signal moves through wires to your screen or controller. The signal is not very strong. It can pick up noise from things around it. Changes in temperature or electromagnetic fields can affect the signal. Long cables can also make the signal weaker. These problems can cause wrong readings. You often need amplifiers to make the signal stronger. Filters help remove noise from the signal. Load cell amplifiers give power, clean up noise, and boost the signal. They help you get better data for your systems.
If you use long cables, the signal can get worse. You might see more mistakes in your measurements.
Digital load cells send out digital signals. These signals use higher voltages and are less bothered by outside things. You get stronger signals that go farther without losing quality. The microprocessor inside the load cell changes the signal from analog to digital before sending it out. This helps keep your data safe from noise and voltage changes.
Many things can affect digital signal strength:
Electrical noise from power lines or machines can mess up signals.
Things like humidity, dust, or chemicals can cause short circuits or block signals.
Problems with wires, like loose connections, can make signals stop and start.
Vibrations from machines can make signals jump around.
A steady power supply is important. Changes in voltage can make the signal less steady.
Digital load cells usually need less care because their signals fight interference better.
Signal quality affects how correct and repeatable your measurements are. You want good accuracy and precision for results you can trust.
| Metric | Description |
|---|---|
| Accuracy | How close the measured output is to the real value. |
| Precision | How much measurements stay the same under the same conditions, even if not accurate. |
Higher power makes the load cell more sensitive. It helps the signal stand out from noise and lowers the effect of electrical noise. Signal conditioning keeps the output steady and makes sure measurements are reliable. Without it, the load cell’s output would be too weak for careful jobs.
Tip: Pick digital load cells for strong signals and less noise, especially in hard places. Analog load cells are good for easy jobs but need more work to keep signals clean.
When you use an analog load cell, you get a smooth signal. This signal changes when you add or take away weight. It can show small changes in force. You can see results right away. But the signal quality depends on many things. Sometimes the signal drifts if the environment is not steady.
You can check analog signal quality with some main metrics:
| Metric | Description |
|---|---|
| Accuracy | How close your measured value is to the true weight or force. |
| Linearity | How straight the output response is across the full range of measurement. |
| Hysteresis | How much the output changes if you load and then unload the cell. |
| Repeatability | How consistent the readings are when you apply the same load multiple times. |
To get the best from analog load cells, check these metrics often.
Digital load cells work in a different way. They change force into a digital signal inside the cell. This signal uses only ones and zeros. You get a clear and strong signal. It does not change much from outside things. Digital signals do not pick up as much noise. Things like radio waves or heat do not affect them much. This makes your readings more correct and steady.
You will see that digital load cells give better data integrity. The numbers you get are less likely to be wrong. You can trust the results, even in hard places.
Noise can make your measurements less correct. Analog load cells often pick up noise from many places:
Electrical noise from machines or power lines
Vibrations from equipment
Temperature changes that affect the strain gauge
Bad wiring or weak shielding
Humidity, dust, or other things in the air
You can lower noise by using good cables and grounding. Shielding helps too. Amplifiers can make the signal stronger and clearer.
Digital load cells fix many of these problems. They send out a digital signal that noise cannot change easily. You get more steady and trustworthy data. This is true even if your workspace has lots of machines or changing temperatures.
Tip: If you want the best data and less noise, pick digital load cells.
An analog load cell gives you a signal all the time. You see weight changes as soon as you add force. The signal keeps going, so you notice changes right away. But the sample rate is not super fast. Long cables or lots of electrical noise can slow the signal down. Sometimes the signal drifts or gets less steady as time passes. This makes it tough to get quick and correct readings when things move fast.
Digital load cells send weight data in bits very quickly. They work much faster than analog ones. The cell handles the signal inside and sends digital data out. You get more samples in less time. This helps you watch fast changes in weight. Digital load cells keep the signal strong, even with long cables or noisy places. You can trust them for jobs that need speed.
Here is a table to help you compare both types:
| Load Cell Type | Data Sample Rate Description |
|---|---|
| Digital Load Cell | Sends weight data in bits many times per second, so sampling is faster. |
| Analog Load Cell | Gives real-time weight data all the time, but sampling is slower. |
The sample rate difference matters in real life. If your job changes quickly, a faster sample rate helps you react. Digital load cells give better and more steady data. They send info to your system faster, which helps with automation and quality checks. Analog load cells cost less at first, but they may not be as quick or correct. Digital load cells last longer and protect better against damage.
| Feature | Analog Load Cells | Digital Load Cells |
|---|---|---|
| Sample Rate | Always working, real-time | Handles data in bits, many times per second |
| Cost | Cheaper at first | Costs more but lasts longer and has more features |
| Reliability | Breaks down more often | Sealed tight, better checks, and lightning safety |
| Accuracy | Changes more because of the analog signal | More correct because the digital signal does not change much |
| Data Transmission Speed | Sends data slower | Sends data faster and works well with computers and PLCs |
Tip: Pick digital load cells if you want fast and correct data. They help you keep up with changes and do better work.
When you install a load cell, you want the process to be simple and quick. Analog load cells often make this harder. You need to deal with lots of wires and junction boxes. This setup can lead to mistakes. You also have to watch out for things like moisture and temperature changes. These can hurt the signal and make your readings less reliable. Lightning can even damage analog systems, which means you might need special repairs.
Digital load cells make things easier for you. You use fewer wires, and the system helps you find problems fast. You spend less time fixing issues. You also do not have to worry as much about weather or electrical noise.
Analog load cells need more wiring and careful setup.
You must check analog systems often for damage from moisture or temperature.
Lightning can cause big problems for analog systems.
Digital load cells use less wiring and help you find faults quickly.
Tip: If you want less trouble with setup and repairs, digital load cells are a smart choice.
You might wonder about the price. The cost of load cells depends on more than just the first payment. Look at the table below to see how costs compare:
| Cost Factor | Digital Load Cells | Analog Load Cells |
|---|---|---|
| Initial Cost | Varies by model | Generally lower |
| Signal Conditioning Equipment Cost | Required | Often included |
| Digitizers/Control Systems Cost | Additional cost | May not be needed |
| Calibration Cost | Periodic required | Initial setup only |
| Total Cost of Ownership | Higher over time | Lower over time |
You pay less at first for analog load cells. Over time, digital load cells may cost more, but you get easier maintenance and better features.
You want your load cell to last and work well. Analog load cells can break down more often. They do not like moisture, heat, or lightning. You may need to fix them more. Digital load cells last longer. They handle tough places better. You get more accurate results for a longer time.
Note: Choose digital load cells if you want a system that is strong and needs less fixing.
Factories and machines need the right load cell. You want one that is easy to set up. It should give strong signals. It must work well in tough places. Here is a table to help you compare important things:
| Criteria | Digital Load Cells | Analog Load Cells |
|---|---|---|
| Signal Processing | Built-in for better accuracy | Needs extra equipment |
| Installation Complexity | Easier with modern systems | More setup and calibration |
| Environmental Resistance | Often built for tough places | Depends on design |
| Output Type | Digital, easy to connect | Analog, may need conversion |
| Cost | Usually higher | Lower at first |
Think about what your job needs.
Check if your workplace is noisy or has bad weather.
Pick a load cell that matches your system.
Tip: Digital load cells are good for quick setup and strong data. They work well in most new factories.
Labs need very accurate results. You also want things to stay clean and safe. Many labs use load cells for tiny weights. These load cells are made to keep errors low. They use special metals and designs for better accuracy.
| Feature | Description |
|---|---|
| Measurement Method | Changes force into an electrical signal |
| Accuracy | Can be as close as 0.03% of full scale |
| Material | Often made from strong stainless steel |
These load cells are used where you must keep things clean.
They help you measure small weights very carefully.
Some types work for both pulling and pushing.
Some places have water, dust, or chemicals. You need a load cell that can last there. Some load cells use nickel-plated steel or stainless steel. This helps stop rust and damage. Hermetically sealed designs keep out water and dust. Special coatings like epoxy add more protection.
Temperature compensation keeps readings correct in hot or cold places.
Good housing protects the load cell from bumps.
Check and clean your load cells often to find problems early.
Some load cells are made for very tough jobs, like in the ocean or near chemicals.
Note: Digital load cells often have better seals and coatings. They last longer in hard places.
You have seen that digital load cell options give you stronger signals and are often more accurate in tough environments. Analog load cells work well for simple, quick tasks. Recent studies show that load cell brakes help drivers perform better and feel more like real-world braking. To choose the right load cell, follow these steps:
Check your weight needs.
Think about where you will use the load cell.
Decide how much accuracy you need.
Make sure the design fits your setup.
Plan for regular checks.
Always match your choice to your job’s needs for the best results.
Digital load cells give you a digital signal. Analog load cells give you a voltage signal. Digital load cells fight noise better. They connect to computers easily.
You can use analog load cells with digital systems. You need extra tools like amplifiers or converters. These tools change the analog signal to digital.
Digital load cells need less maintenance. They have built-in checks. They fight moisture and electrical noise better than analog load cells.
Digital load cells work best in tough places. They have sealed cases and strong coatings. They last longer and give better data.
